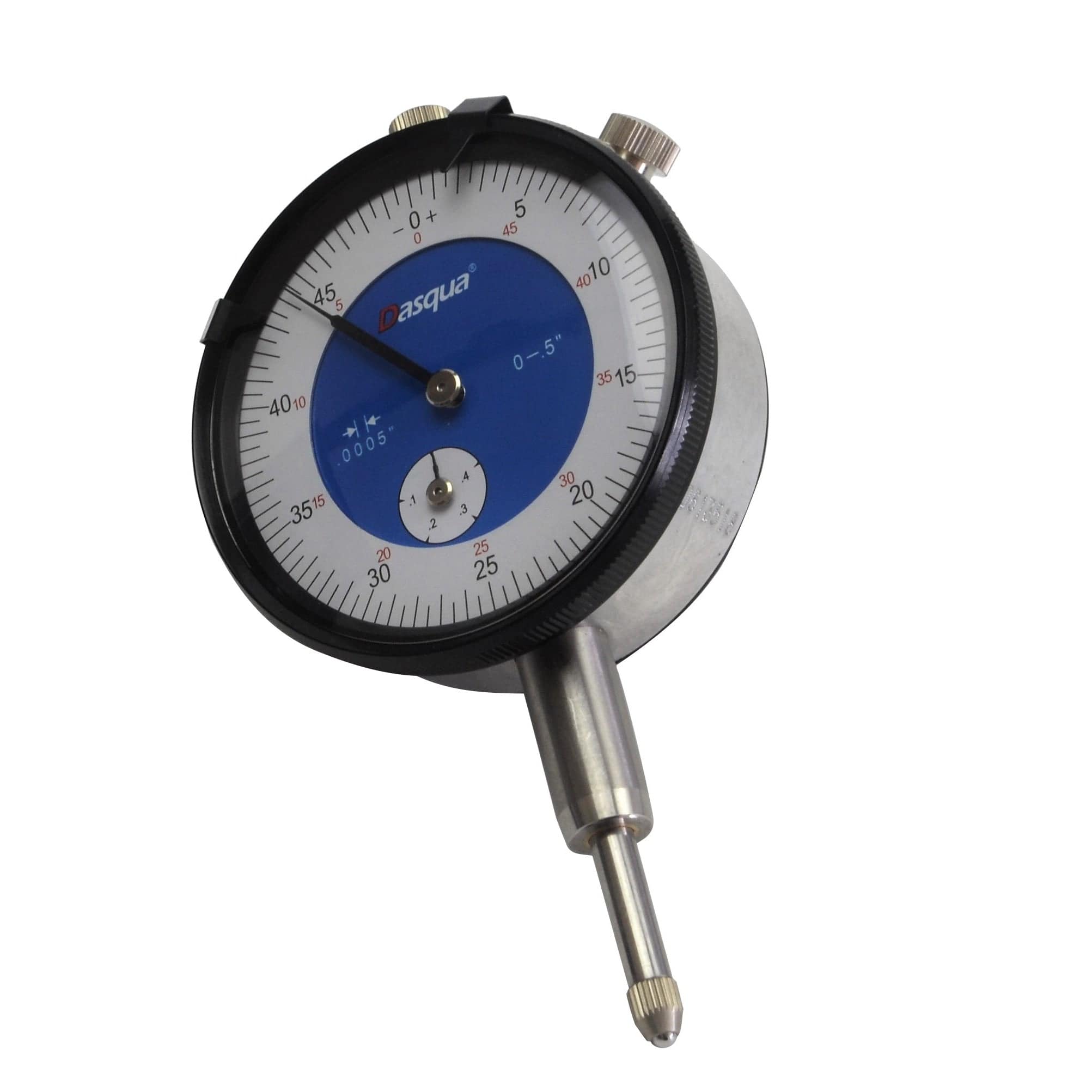

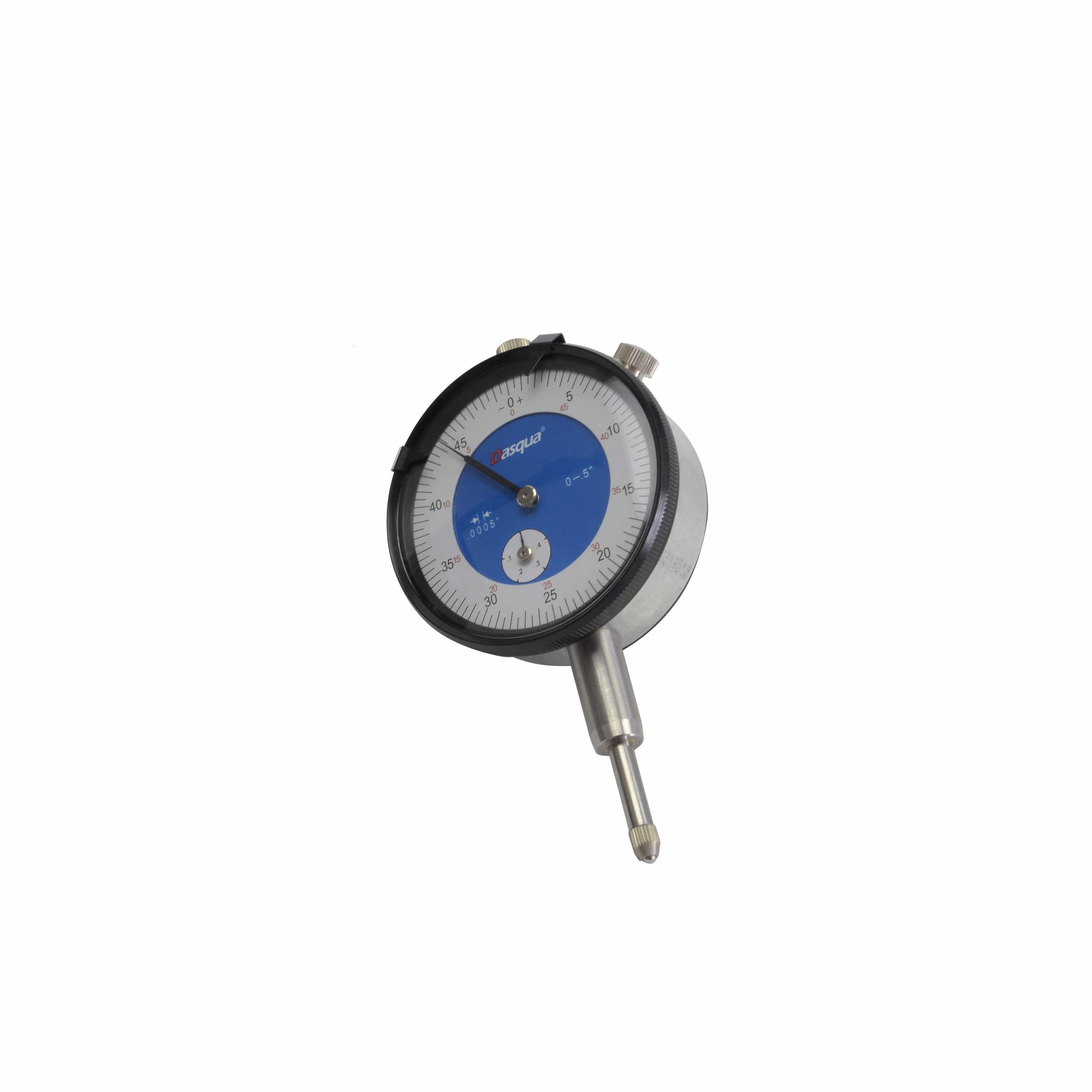

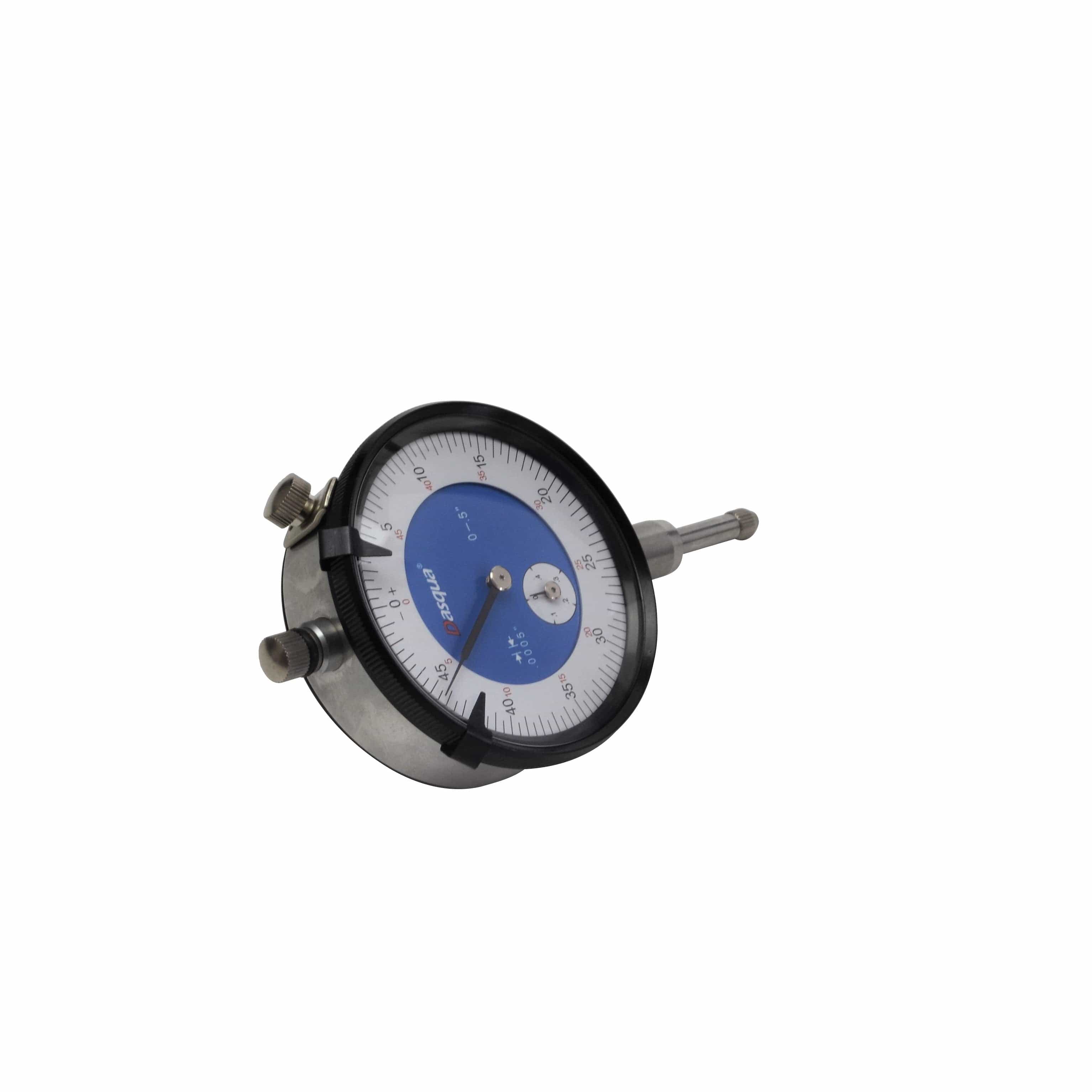

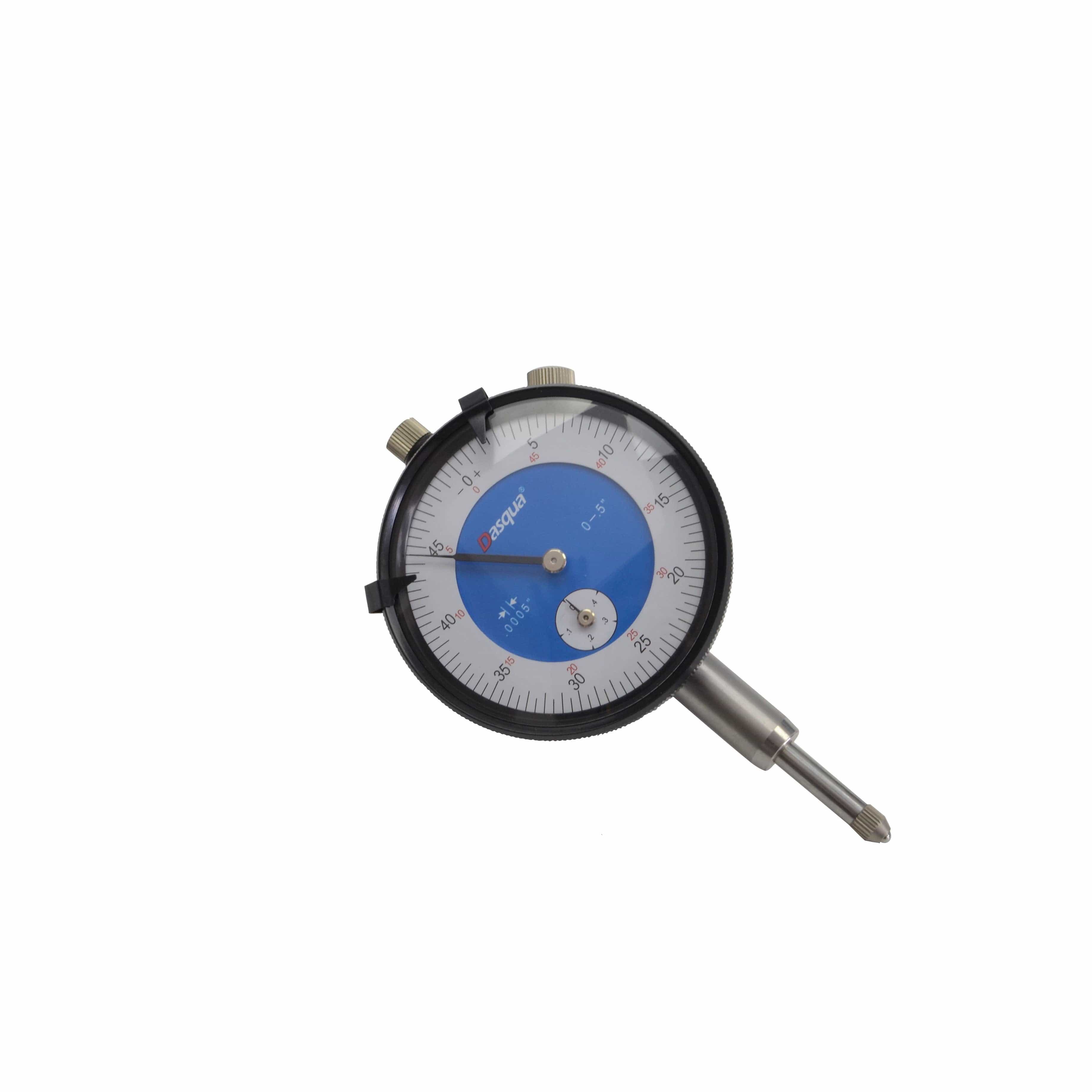

Imperial Dasqua Lug Back Dial Indicator Series 5122-4205 0.001" Fine Graduation

sold in last hours
Vendor: Dasqua
SKU: 013
$45.00
Order in The Next to get it by
Real Time 1 Visitor Right Now

Product Type: Dial Indicator

Barcode: 880924852837

Imperial Dial Indicator

You are buying a genuine Dasqua product from the agent appointed distributor of all Dasqua products within Australia. What does this mean for you, all our product warranty is honoured within Australia by Twin Eagle . Each product is shipped with a unique identifier.Feel free to contact us to supply your Dasqua products.

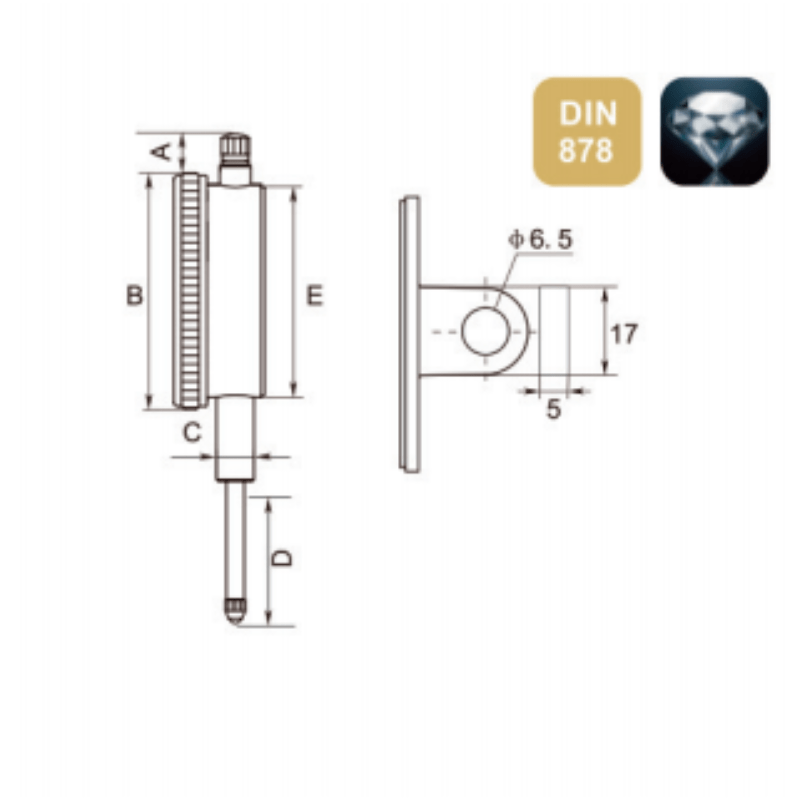

  • Part no – 5122-4205
  • A – 8.5 mm
  • B – 58 mm
  • C – 9.5 mm
  • D – 22.5 mm
  • E – 53.3 mm
  • Indicator type – Plunger
  • Range Per Rev – .05”
  • Measurement units – Inch
  • Repeatability of Indicator – .001”
  • Indicator Scale Type — Continuous
  • Measuring Force – 1-2.2N
  • Indicator Range – 0 – 0.5”
  • Accuracy – .002”
  • Graduation – 0.001”
  • Display Type – Non-digital

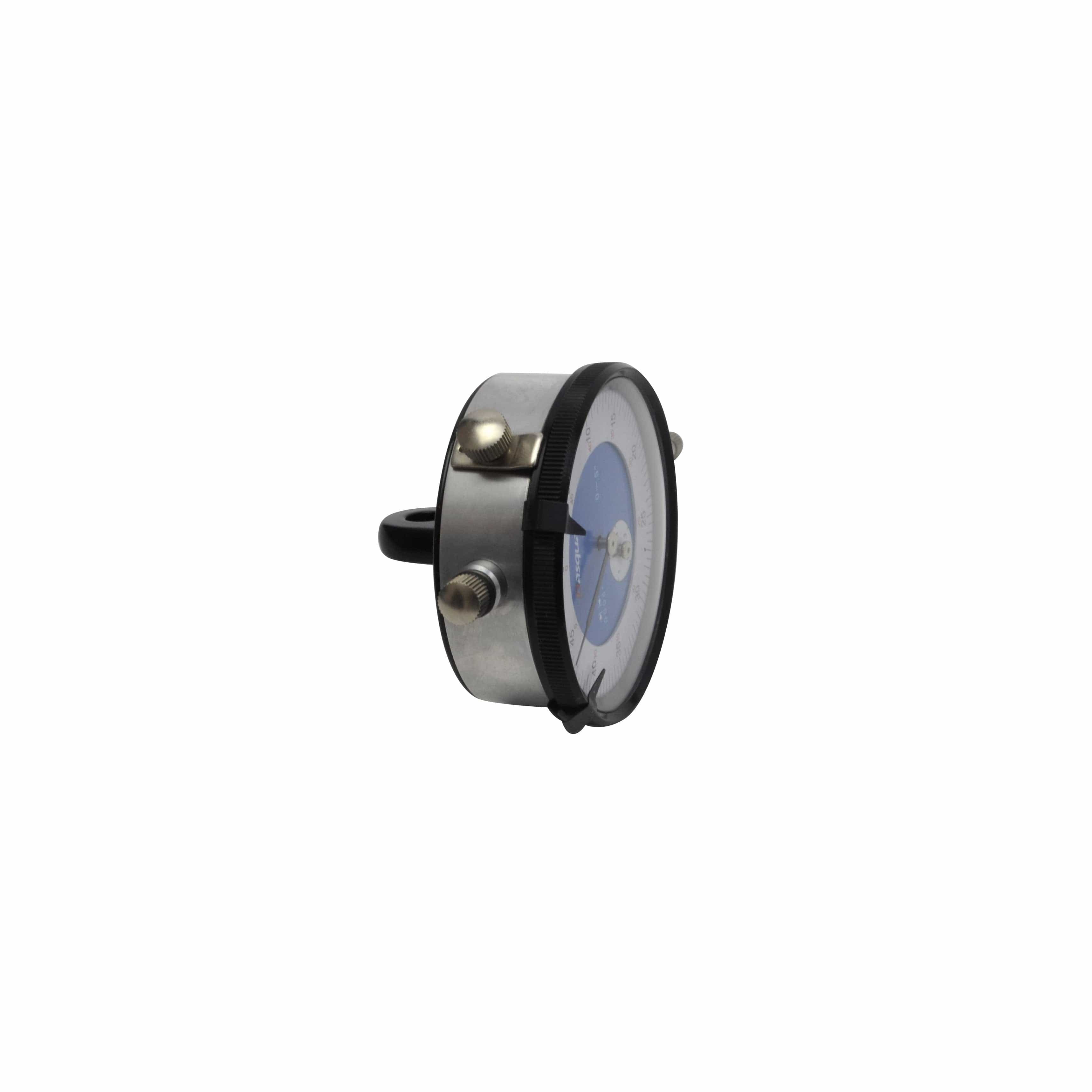

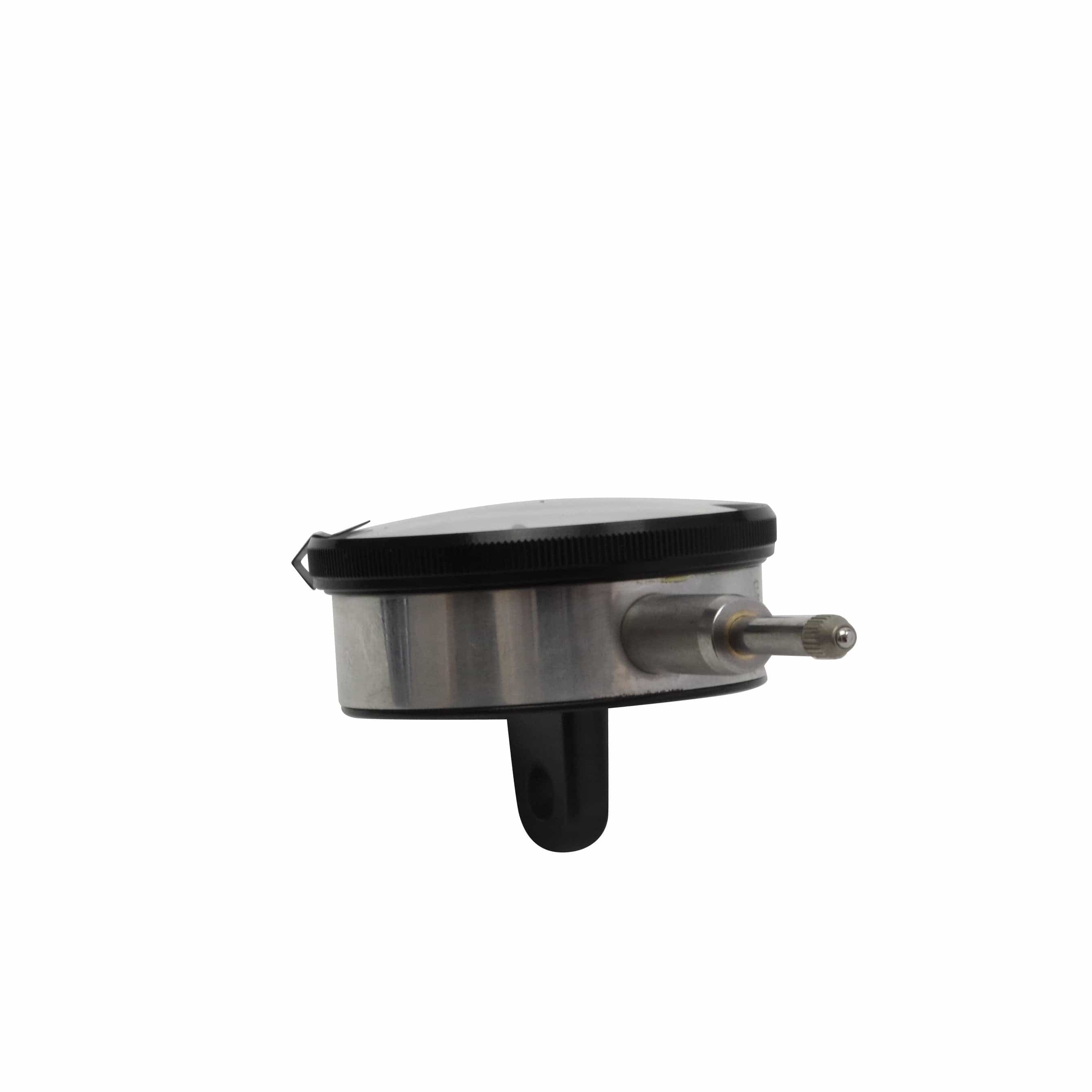

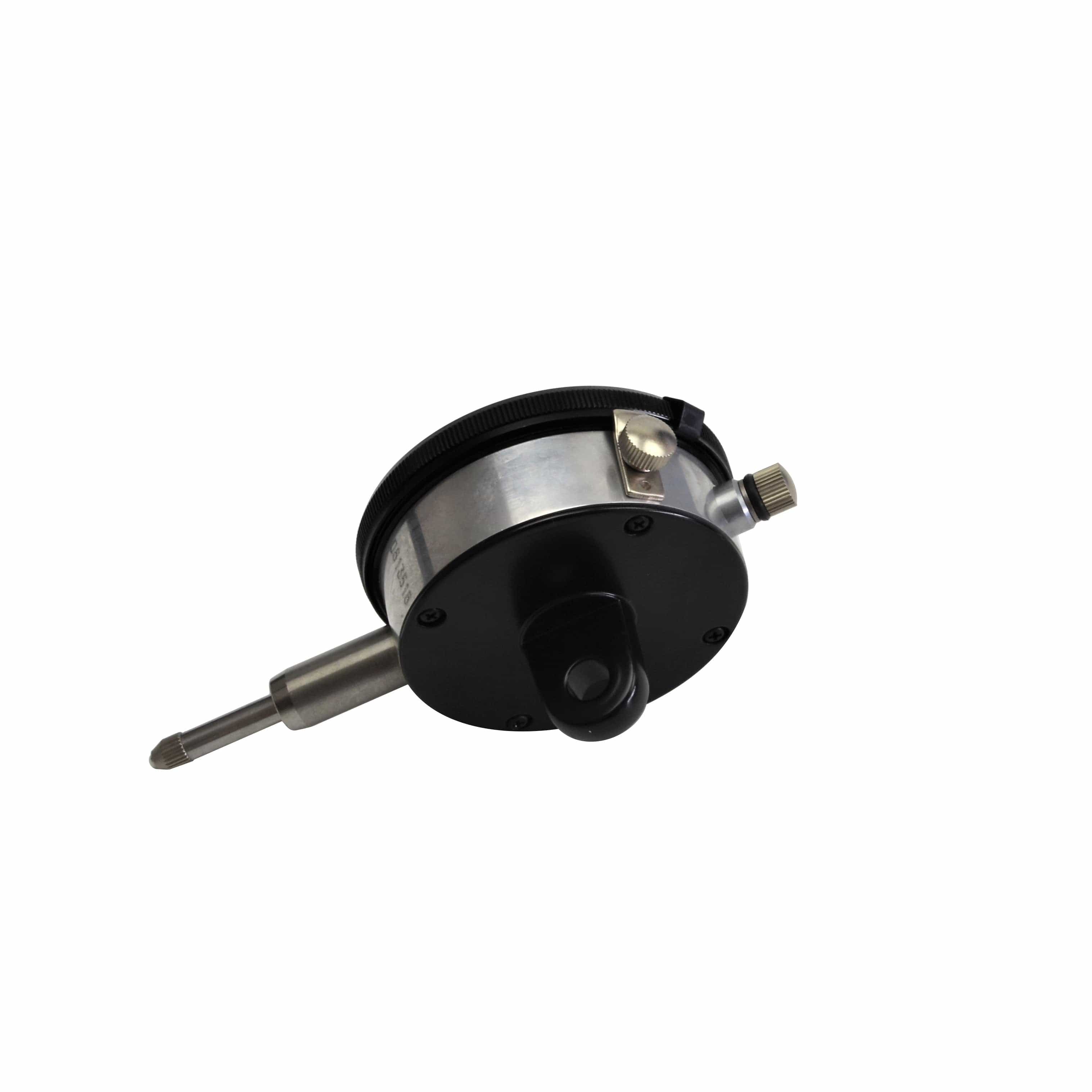

  • Back Lug or Stem Mount
  • Contact Point Thread – 4×48 TPI

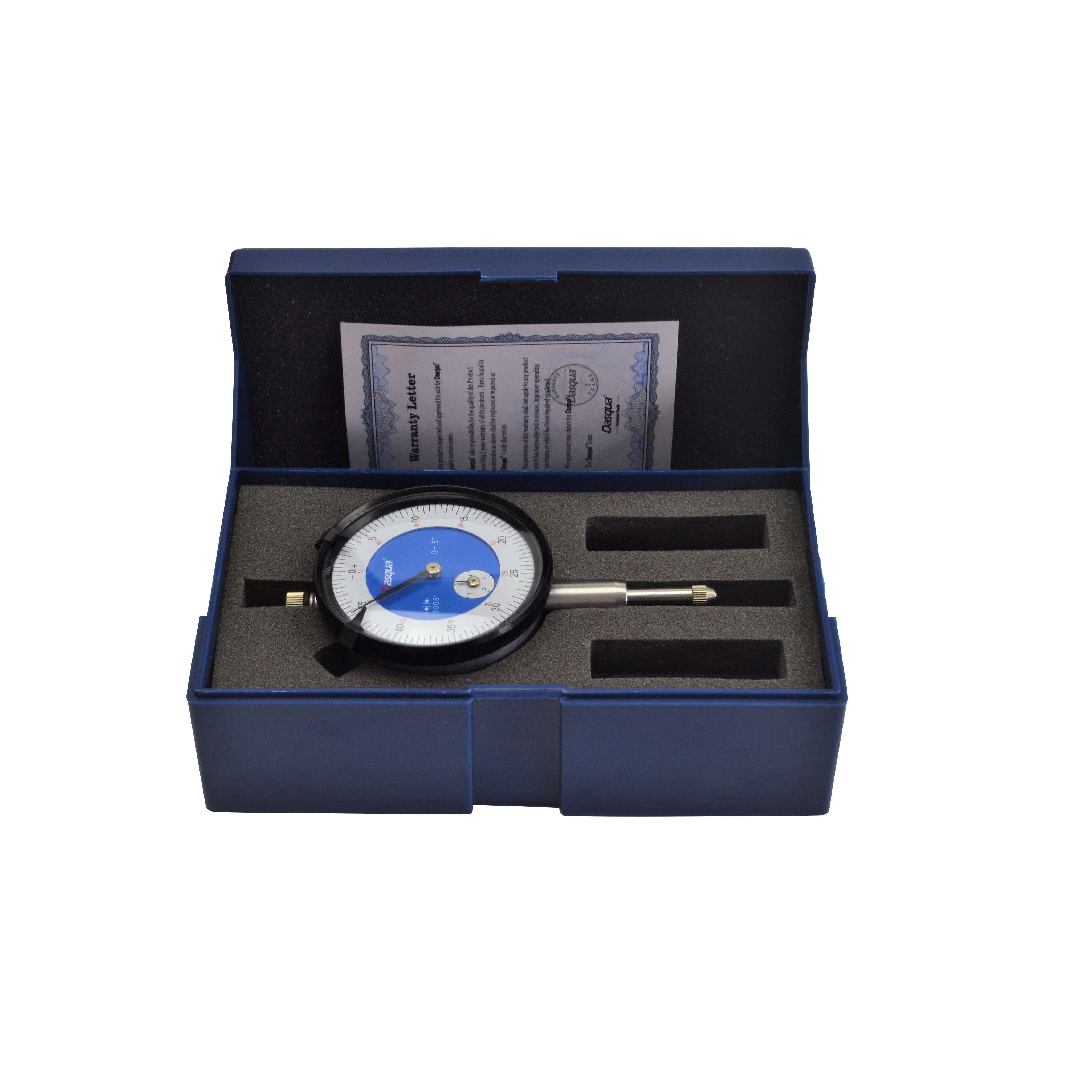

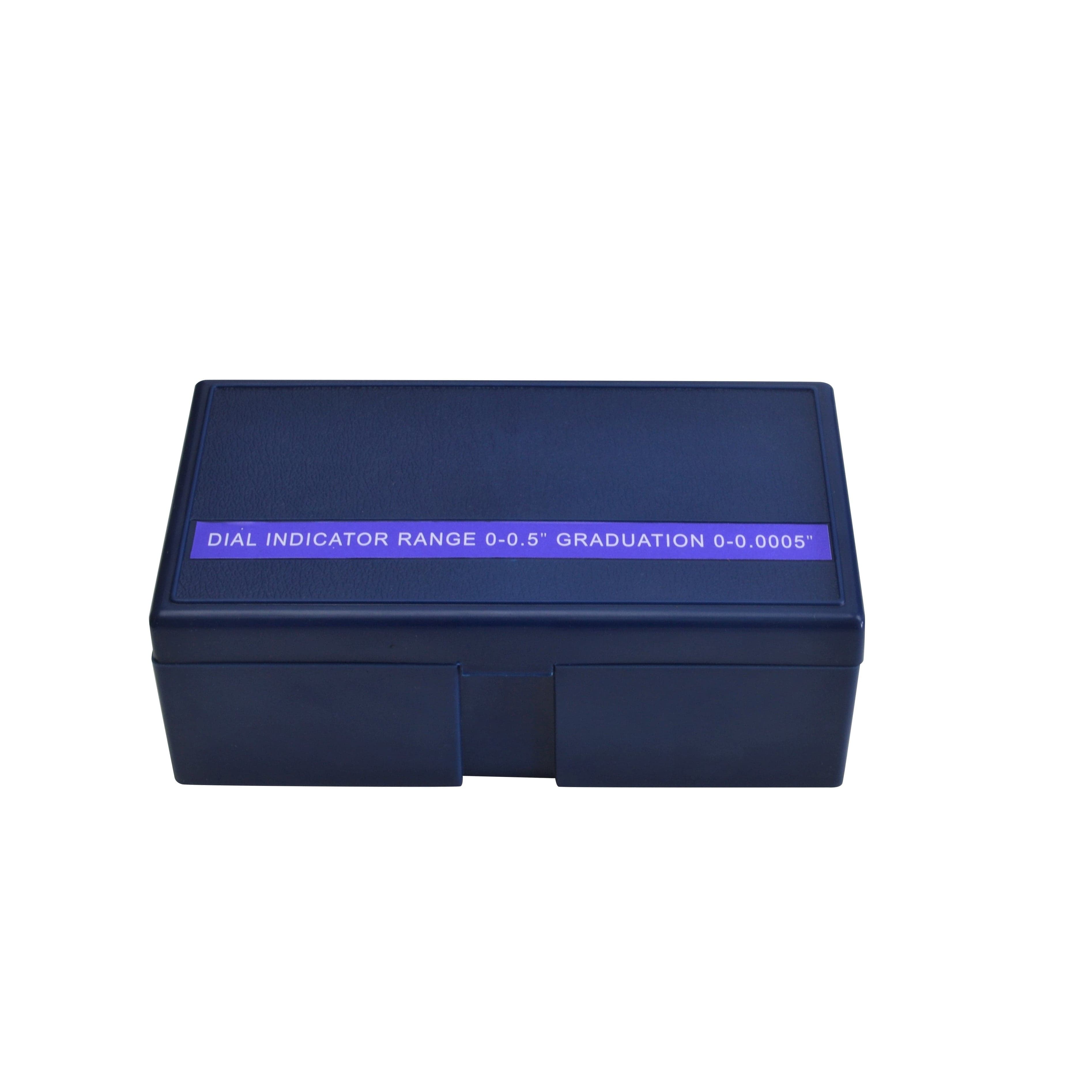

  • Packaged in moulded EVA with sturdy storage case.
