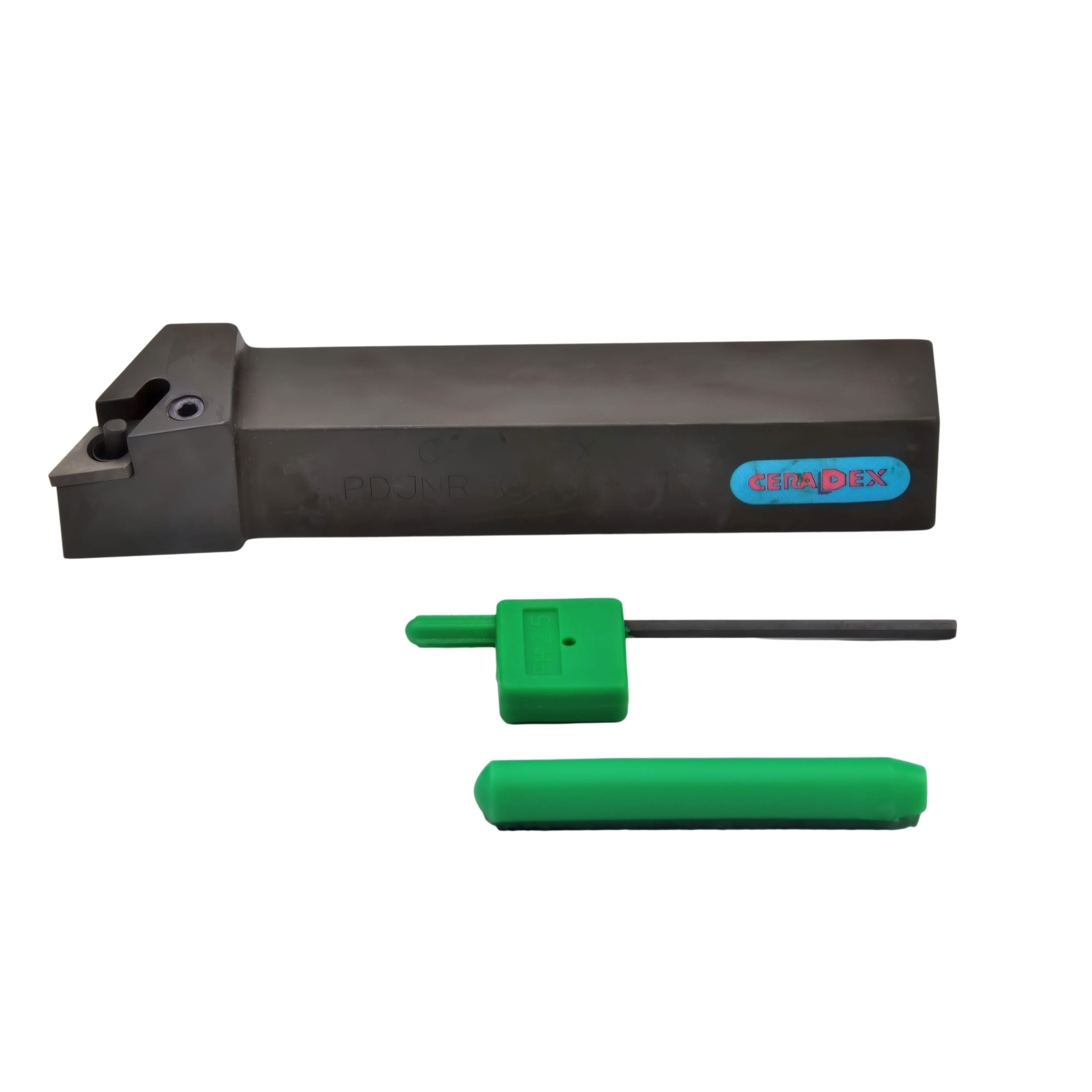

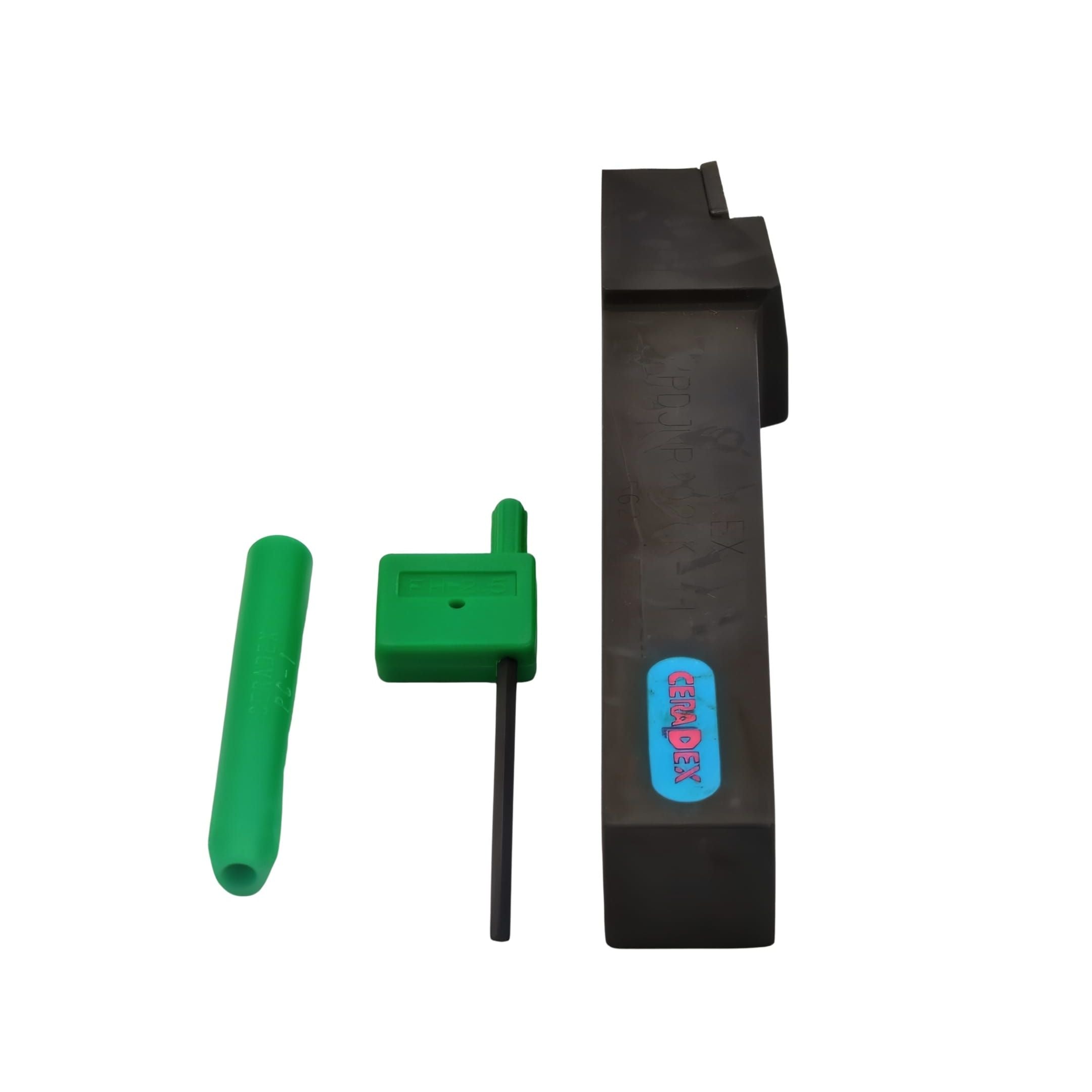

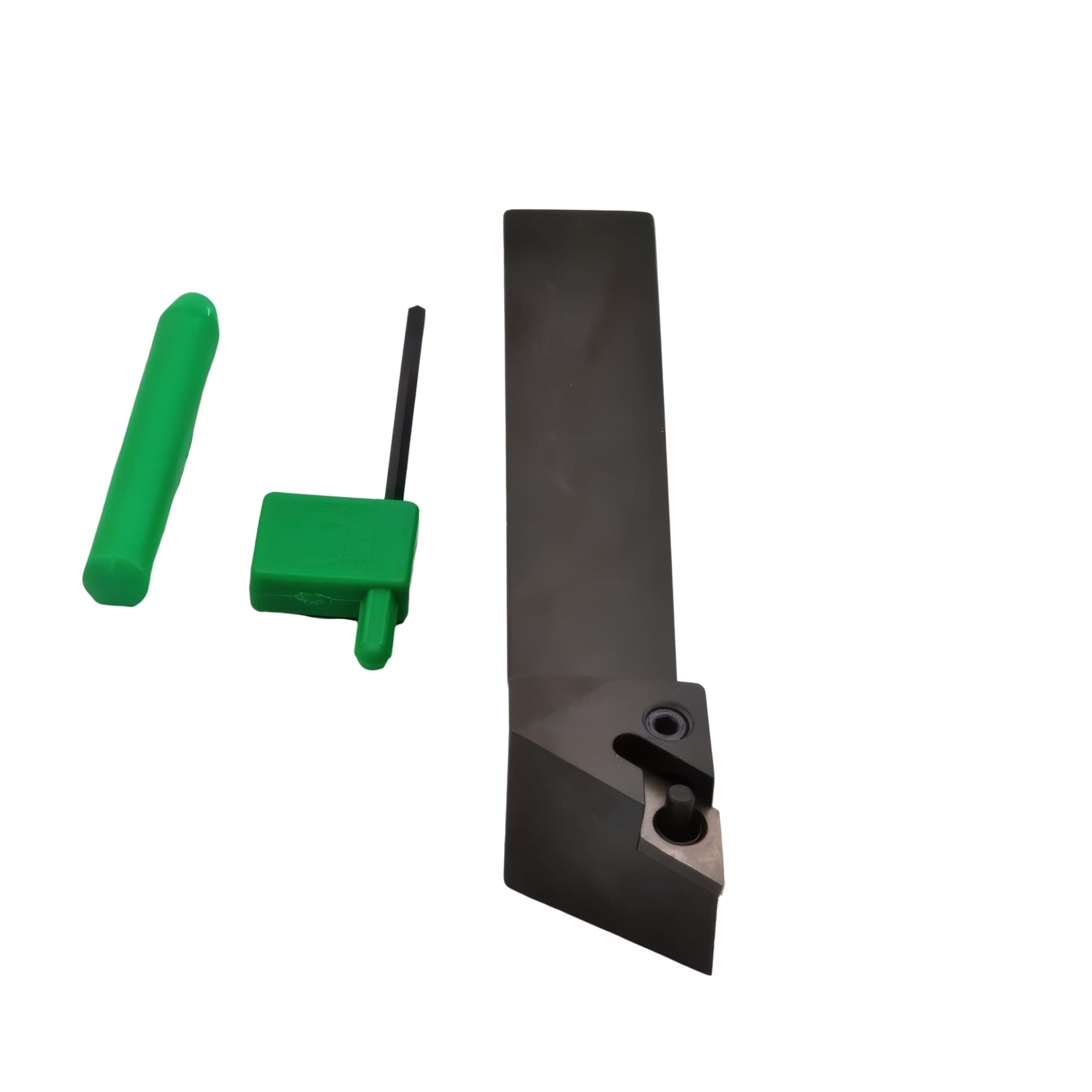

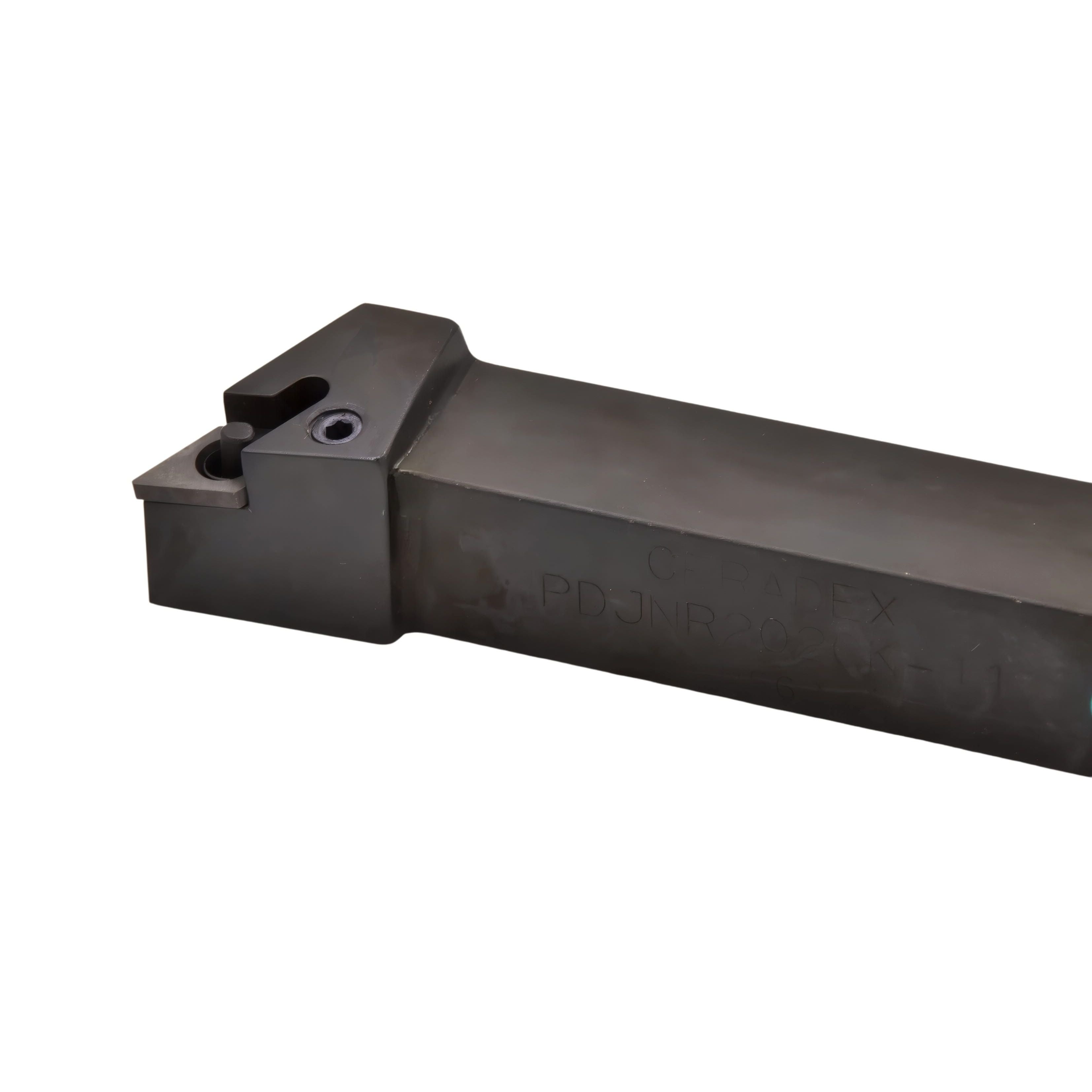

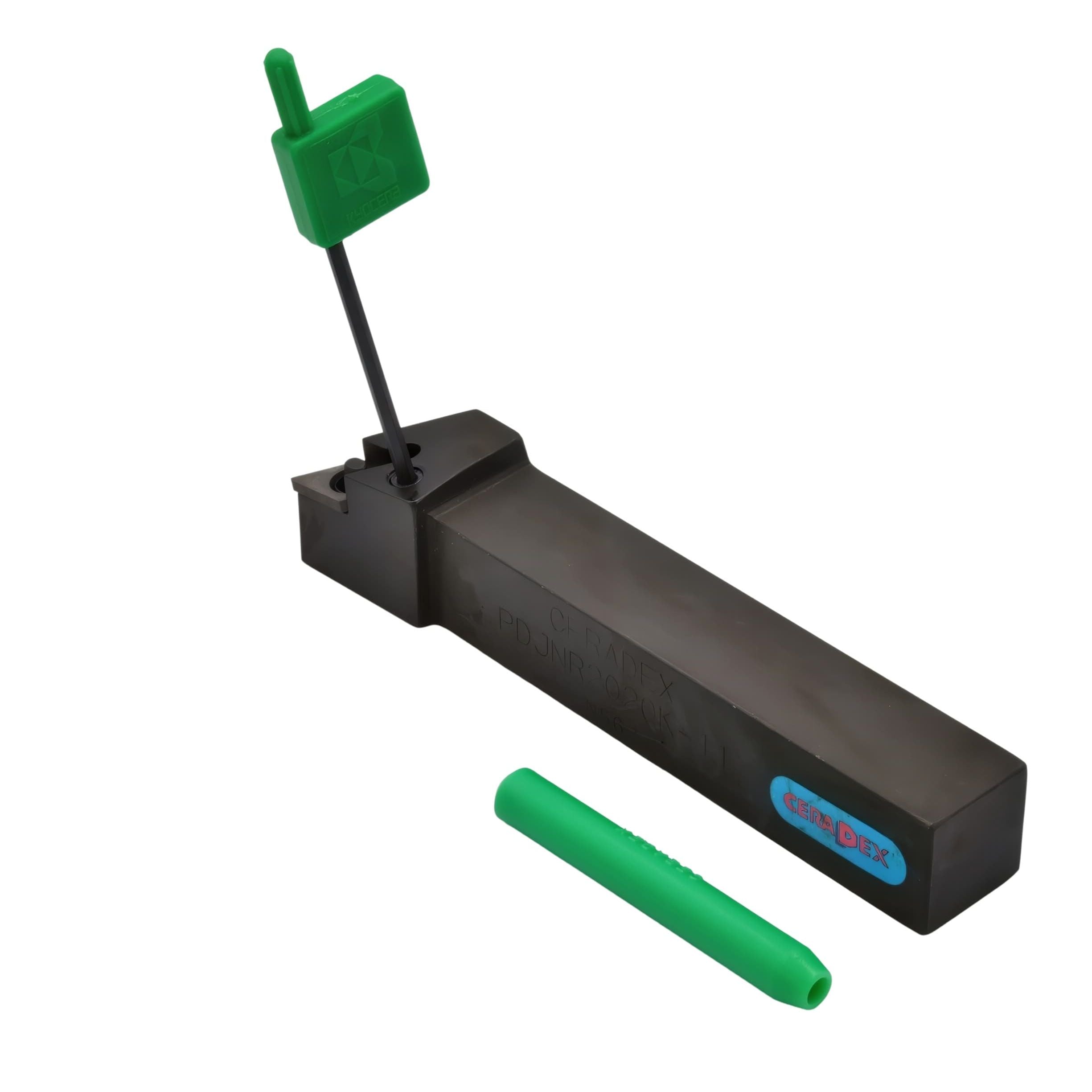

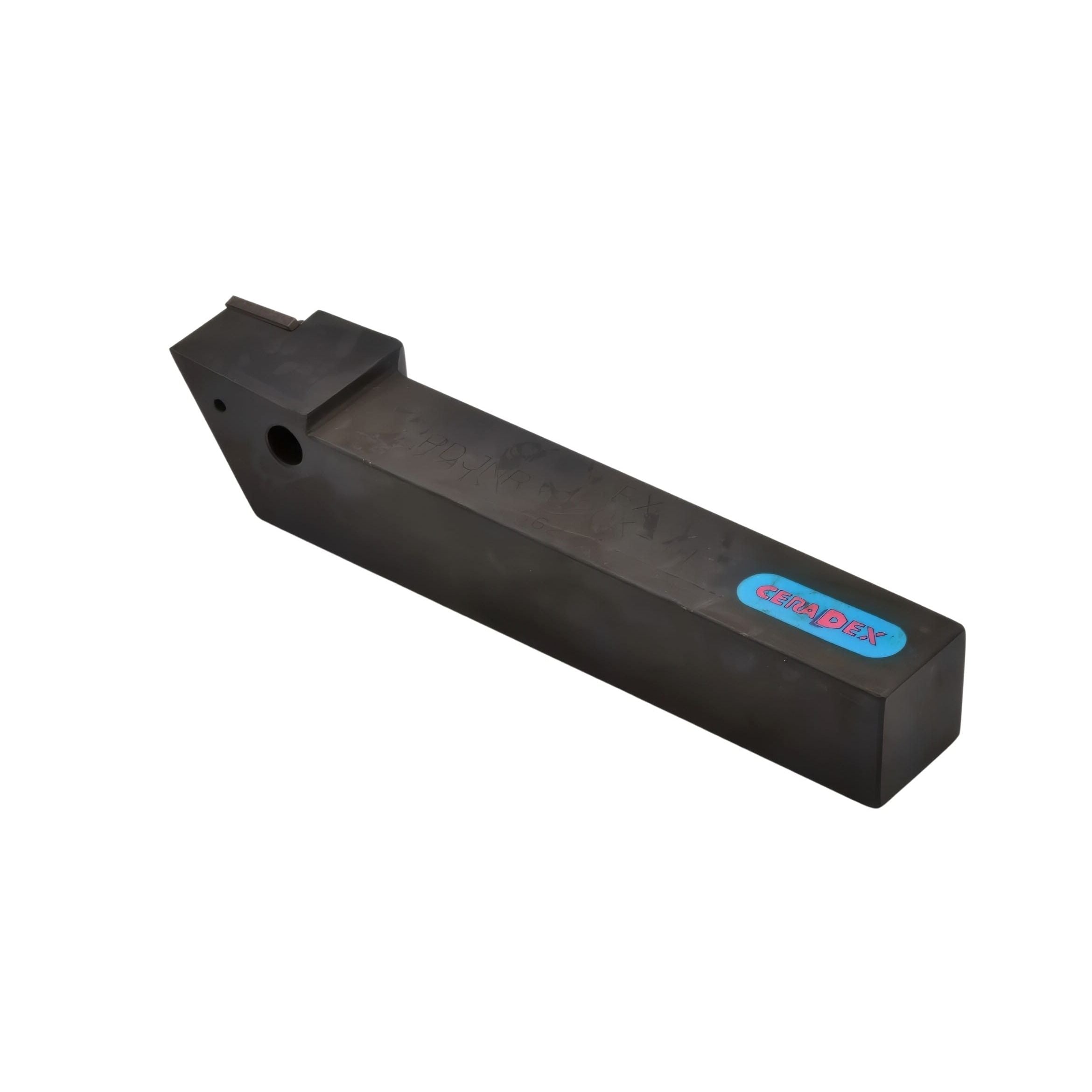

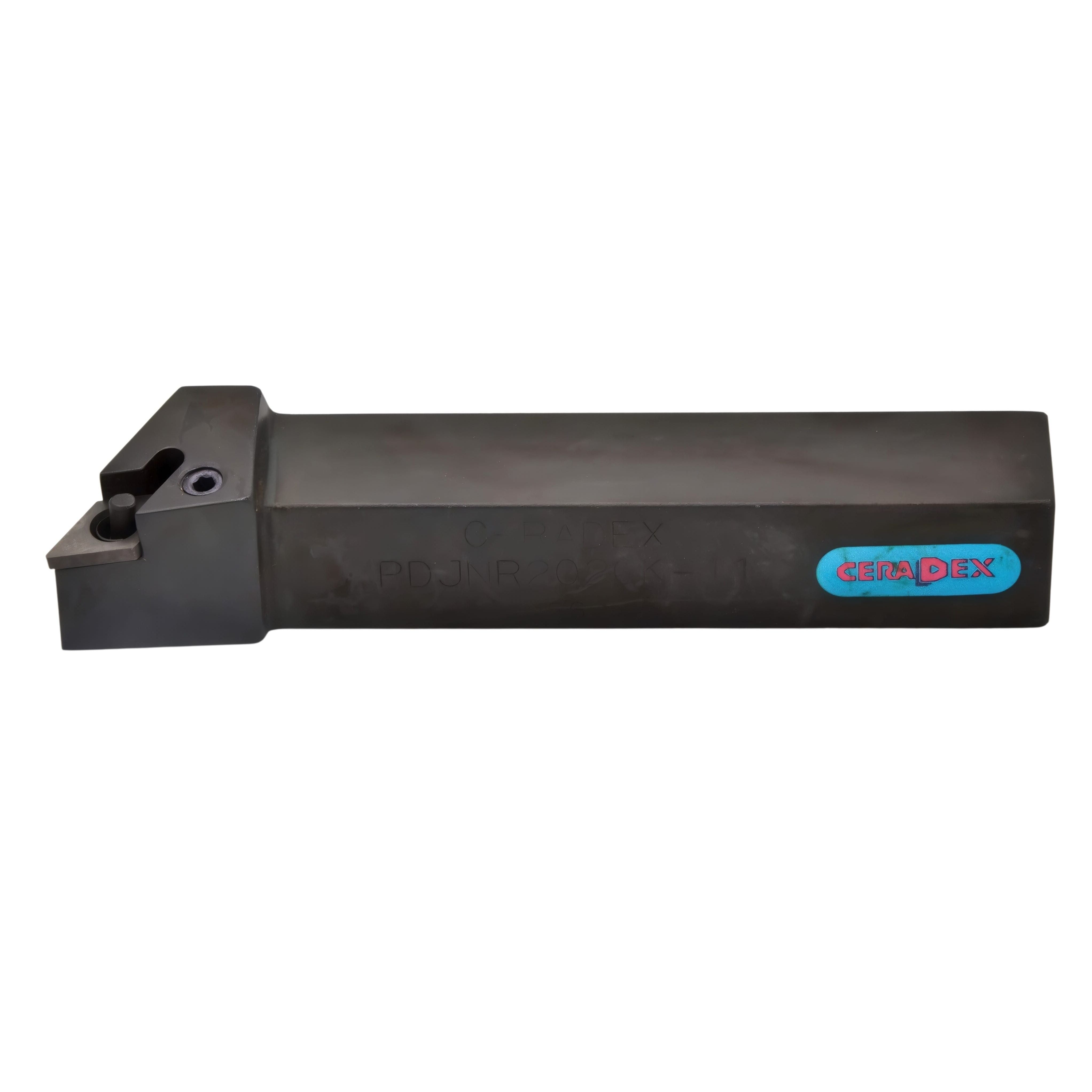

Ceradex PDJNR2020K-11 External Turning Toolholder – THC07812

The Ceradex PDJNR2020K-11 is a robust external turning toolholder designed for precision machining and reliable performance in a wide range of turning applications. Built for stability and accuracy, it provides...
$135.00
$0.00
$135.00
(-0%)
SKU: PDJNR2020K-11
Availability: In Stock
Subtotal: $135.00
KYOCERA ASIA PACIFIC PTE LTD TOOL HOLDERS Ceradex PDJNR2020K-11 External Turning Toolholder – THC07812

Ceradex PDJNR2020K-11 External Turning Toolholder – THC07812

$0.00 $135.00

Ceradex PDJNR2020K-11 External Turning Toolholder – THC07812

$0.00 $135.00

The Ceradex PDJNR2020K-11 is a robust external turning toolholder designed for precision machining and reliable performance in a wide range of turning applications. Built for stability and accuracy, it provides consistent cutting results in both general-purpose and demanding machining environments.

Engineered to suit DN**11-style inserts, this right-hand turning toolholder delivers efficient chip control and dependable cutting performance. Its square shank design ensures secure clamping and precise positioning, making it suitable for CNC and manual lathe operations.

Key Features & Benefits

  • Designed for external turning applications
  • Compatible with DN**11 insert size
  • Right-hand cutting configuration for standard machining direction
  • Square shank design for secure and stable mounting
  • High rigidity for reduced vibration and improved surface finish
  • Reliable chip control for efficient machining
  • Suitable for general to medium-duty turning operations
  • Durable construction for long tool life

Technical Specifications

  • Part Number: PDJNR2020K-11
  • Item Number: THC07812
  • Product Type: External Turning Toolholder
  • Insert Compatibility: DN**11
  • Shank Width (B): 20 mm
  • Shank Height (H): 20 mm
  • Functional Height (HF): 20 mm
  • Hand: Right
  • Total Length (OAL): 125 mm
  • Head Length (LH): 28 mm
  • Clearance Angle: 0°
  • Insert Included Angle: 55°
  • Rake Angle Radial: -7°
  • Rake Angle Axial: -6°
  • Inscribed Circle (IC): 9.525 mm
  • Cutting Edge Angle: 93°
  • Cutting Edge Length: 11.628 mm
  • Corner Radius: 0.4 mm
  • Insert Thickness: 4.76 mm
  • Internal Coolant: No

Ceradex toolholders are engineered for precision machining, offering durability, reliability, and consistent performance across a wide range of turning applications.
