Carmex Threadmill Single Insert Toolholder 48mm Cut. SR0048M40

Mill-Thread Toolholder – SR0048M40, Ø48 mm, Single Insert with Internal Coolant The SR0048M40 Mill-Thread Toolholder is engineered for heavy-duty thread milling applications, delivering robust performance with a 48 mm cutting...
$1,218.21
$0.00
$1,218.21
(-0%)
SKU: SR0048M40
Availability: In Stock
Subtotal: $1,218.21
Carmex Threadmill Single Insert Toolholder 48mm Cut. SR0048M40

Carmex Threadmill Single Insert Toolholder 48mm Cut. SR0048M40

$0.00 $1,218.21

Carmex Threadmill Single Insert Toolholder 48mm Cut. SR0048M40

$0.00 $1,218.21

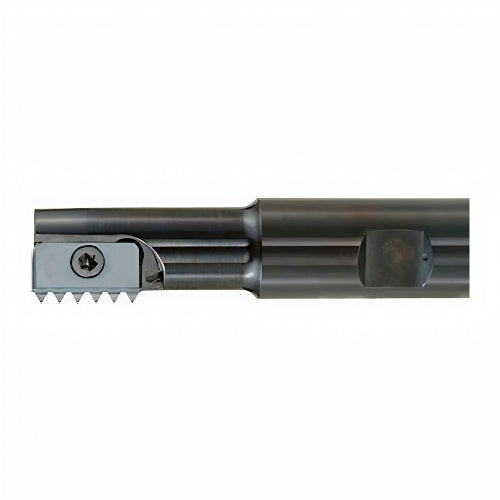

Mill-Thread Toolholder – SR0048M40, Ø48 mm, Single Insert with Internal Coolant

The SR0048M40 Mill-Thread Toolholder is engineered for heavy-duty thread milling applications, delivering robust performance with a 48 mm cutting diameter and integrated internal coolant supply. Designed for use with a single insert, this toolholder features a secure screw-clamping system to ensure reliable insert positioning and stable operation during deep or large-diameter threading tasks on CNC machines.

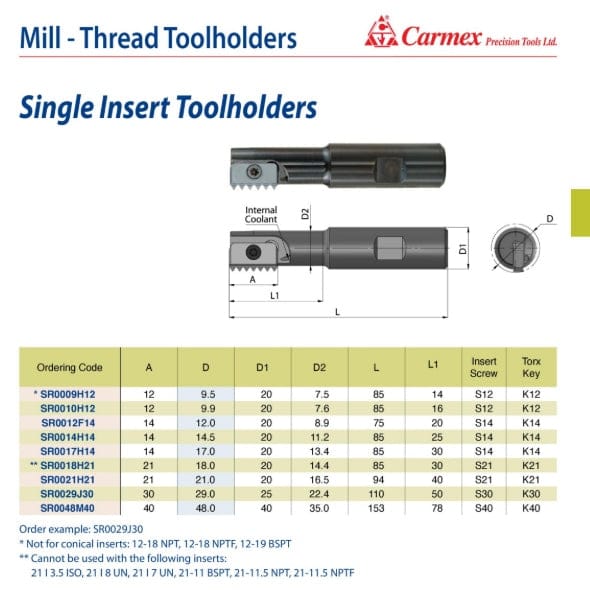

Designed for use with 40 mm insert pockets, the SR0048M40 features a 40 mm shank diameter (D1), 35.0 mm neck diameter (D2), an overall length of 153 mm, and a 78 mm projection length (L1). It is fully compatible with S40 insert screws and K40 Torx keys, making it ideal for high-volume or precision-critical milling environments where rigidity, coolant efficiency, and insert stability are essential.

Key Features:

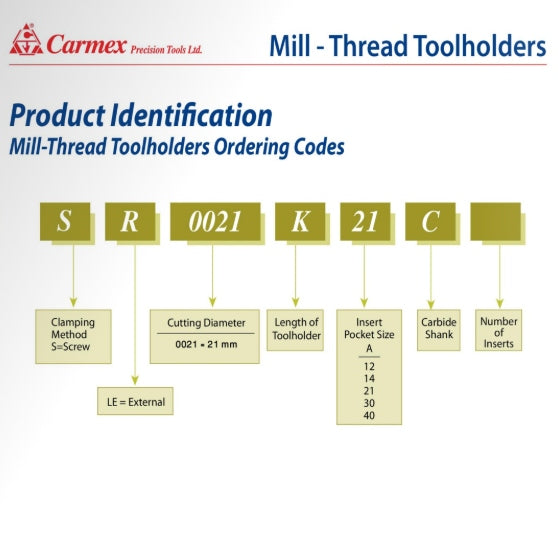

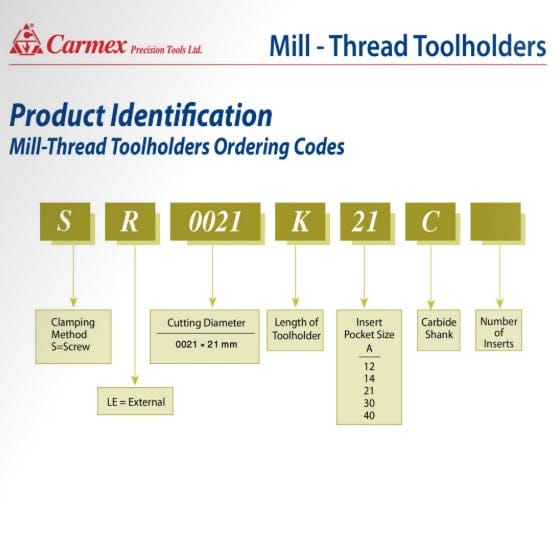

  • Ordering Code: SR0048M40
  • Toolholder Type: Single Insert Mill-Thread
  • Coolant Supply: Internal Coolant Bore
  • Clamping Method: Screw
  • Insert Pocket Size: 40 mm
  • Cutting Diameter: 48 mm
  • D1: 40 mm
  • D2: 35.0 mm
  • L: 153 mm
  • L1: 78 mm
  • Insert Screw: S40
  • Torx Key: K40

Carmex Precision Tools Ltd. is a world-class manufacturer of high-performance cutting solutions. Their product lineup includes Thread Turning inserts, Mill-Thread holders, Spiral Mill-Thread, and Solid Carbide threadmills—designed to meet the demands of modern machining with precision, durability, and reliability.
