Carmex Threadmill Single Insert Toolholder 29mm Cut. SR0029J30

Mill-Thread Toolholder – SR0029J30, Ø29 mm, Single Insert with Internal Coolant The SR0029J30 Mill-Thread Toolholder is designed for large-diameter thread milling operations, offering reliable performance with a 29 mm cutting...
$894.58
$0.00
$894.58
(-0%)
SKU: SR0029J30
Availability: In Stock
Subtotal: $894.58
Carmex Threadmill Single Insert Toolholder 29mm Cut. SR0029J30

Carmex Threadmill Single Insert Toolholder 29mm Cut. SR0029J30

$0.00 $894.58

Carmex Threadmill Single Insert Toolholder 29mm Cut. SR0029J30

$0.00 $894.58

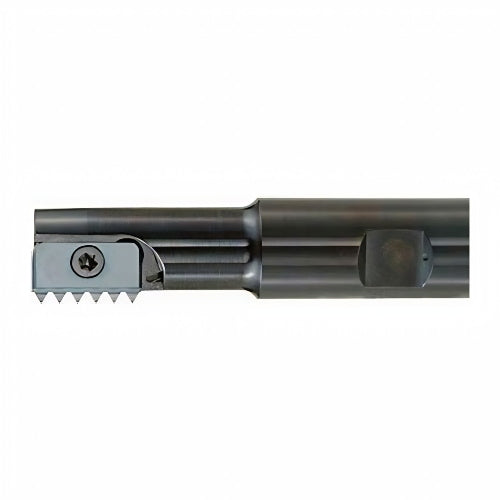

Mill-Thread Toolholder – SR0029J30, Ø29 mm, Single Insert with Internal Coolant

The SR0029J30 Mill-Thread Toolholder is designed for large-diameter thread milling operations, offering reliable performance with a 29 mm cutting diameter and integrated internal coolant bore for effective chip evacuation and temperature control. This single-insert toolholder uses a secure screw-clamping system to ensure stable insert positioning during high-load CNC threading processes.

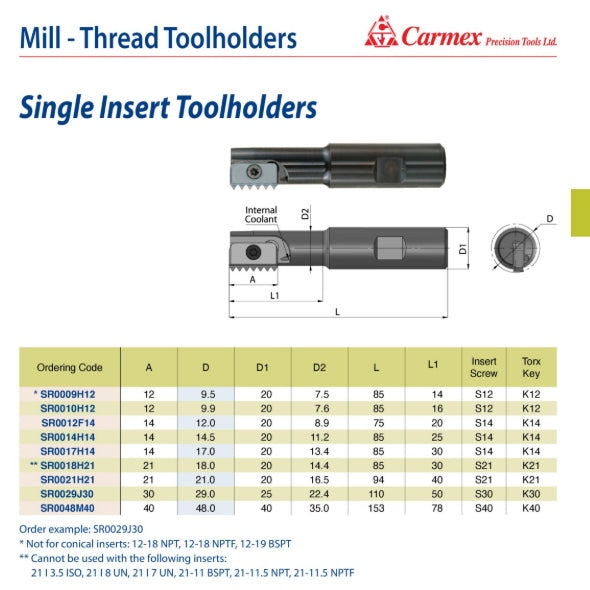

Compatible with 30 mm pocket-size inserts, the toolholder features a 25 mm shank diameter (D1), 22.4 mm neck diameter (D2), a total length of 110 mm, and a 50 mm projection length (L1). It is suitable for use with S30 insert screws and K30 Torx keys, delivering rigidity, longevity, and precision in both medium and large-scale threading tasks.

Key Features:

  • Ordering Code: SR0029J30
  • Toolholder Type: Single Insert Mill-Thread
  • Coolant Supply: Internal Coolant Bore
  • Clamping Method: Screw
  • Insert Pocket Size: 30 mm
  • Cutting Diameter: 29 mm
  • D1: 25 mm
  • D2: 22.4 mm
  • L: 110 mm
  • L1: 50 mm
  • Insert Screw: S30
  • Torx Key: K30

Carmex Precision Tools Ltd. is internationally recognized for its high-performance threading and grooving solutions. With a comprehensive offering of Thread Turning inserts, Mill-Thread holders, Spiral Mill-Thread systems, and Solid Carbide threadmills, Carmex is a trusted partner for precision machining across industries.
