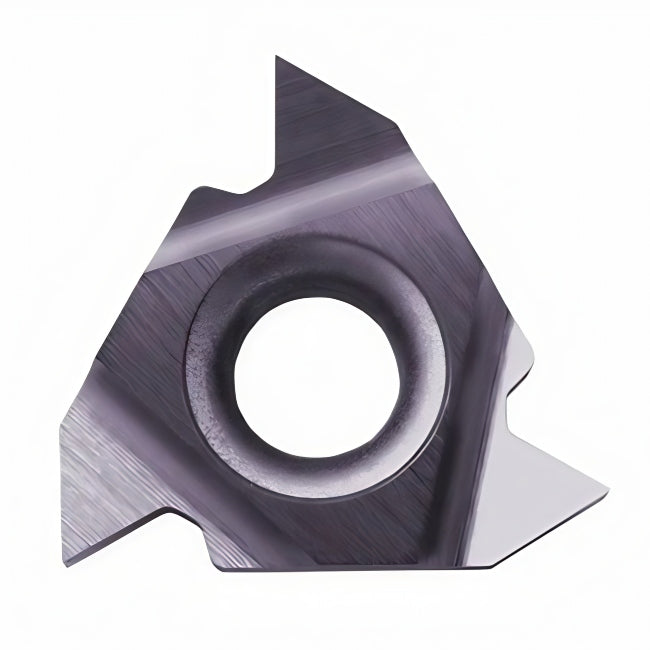

Carmex Internal Right Hand UN Unified Thread Turning Insert 20 TPI / 16 IR 20 UN BMA

Internal Thread Turning Insert – UN Full Profile 60° The UN Full Profile Internal Thread Turning Insert is engineered for precise internal threading of Unified thread forms (UNC, UNF, UNEF,...
$31.60
$0.00
$31.60
(-0%)
SKU: 16 IR 20 UN BMA
Availability: In Stock
Subtotal: $31.60
Carmex Internal Right Hand UN Unified Thread Turning Insert 20 TPI / 16 IR 20 UN BMA

Carmex Internal Right Hand UN Unified Thread Turning Insert 20 TPI / 16 IR 20 UN BMA

$0.00 $31.60

Carmex Internal Right Hand UN Unified Thread Turning Insert 20 TPI / 16 IR 20 UN BMA

$0.00 $31.60

Internal Thread Turning Insert – UN Full Profile 60°

The UN Full Profile Internal Thread Turning Insert is engineered for precise internal threading of Unified thread forms (UNC, UNF, UNEF, UNS) with a 60° profile. Designed for a 20 TPI pitch, it forms the complete thread geometry—including crest, root, and flanks—in one pass, ensuring consistency and strength in every cut.

Made from premium BMA-grade carbide, this insert provides excellent wear resistance, cutting edge durability, and thermal performance. The insert's optimized X and Y geometry ensures smooth cutting, reliable chip control, and consistent profile integrity across a wide range of materials and machining conditions.

Key Features:

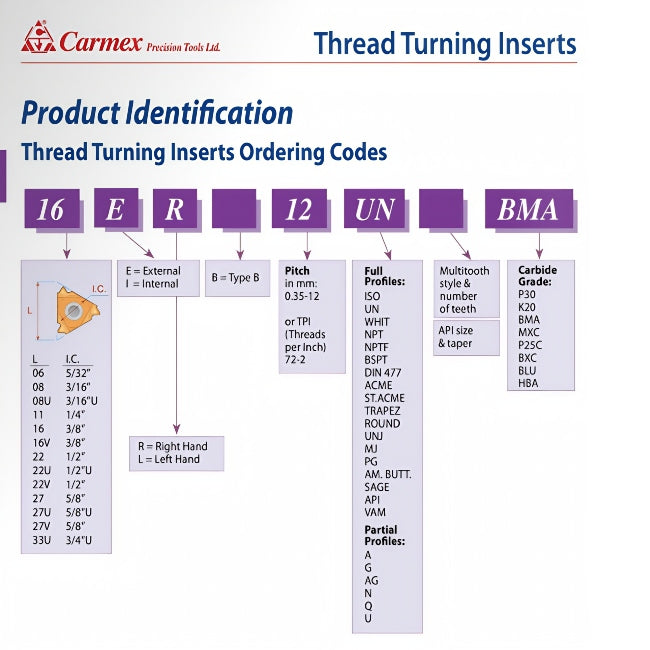

  • Ordering Code: 16 IR 20 UN BMA

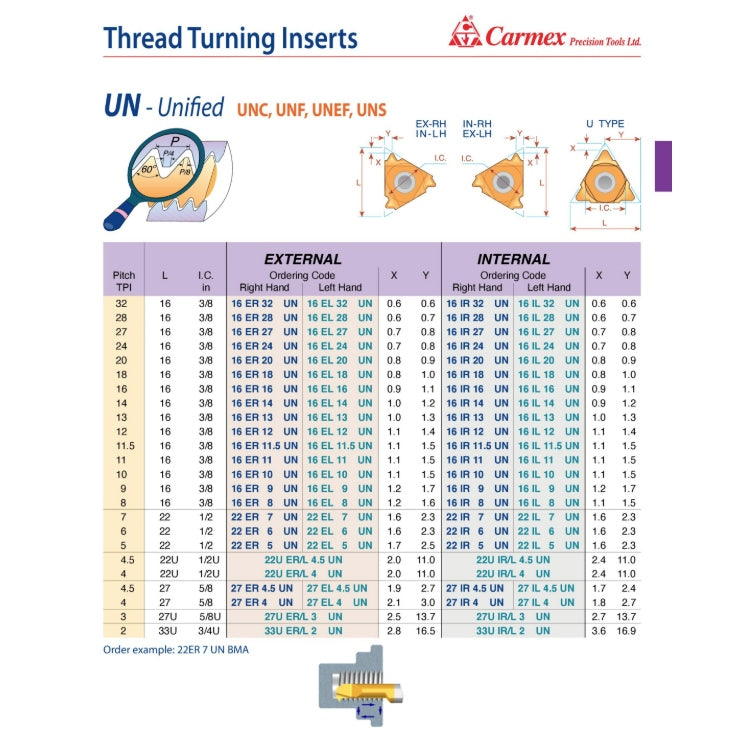

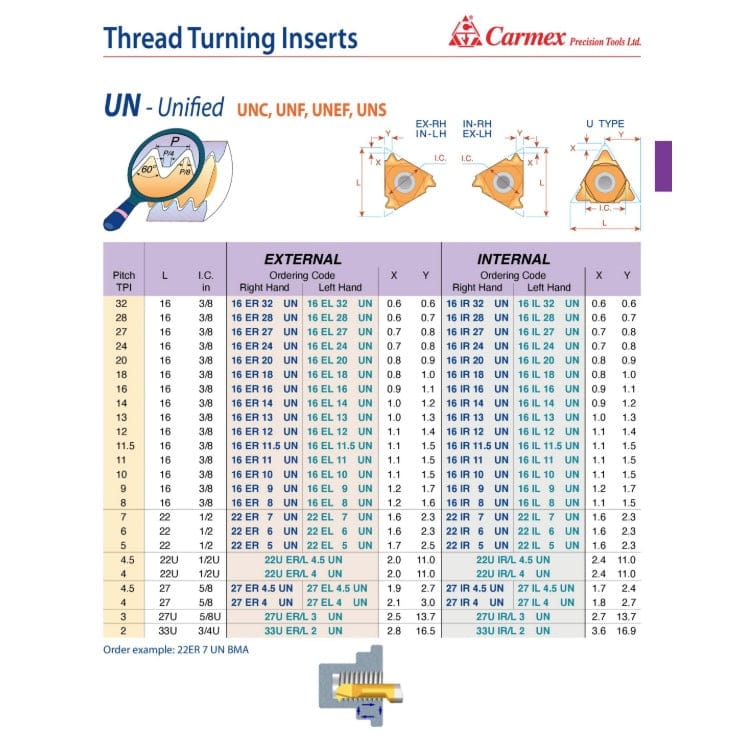

  • Thread Type: UN (Unified Thread Standard – 60°)
  • Profile: 60° Full Form
  • Insert Type: Internal
  • Hand: Right Hand
  • L: 16 mm
  • I.C.: 3/8"
  • Pitch: 20 TPI
  • X: 0.8 mm
  • Y: 0.9 mm

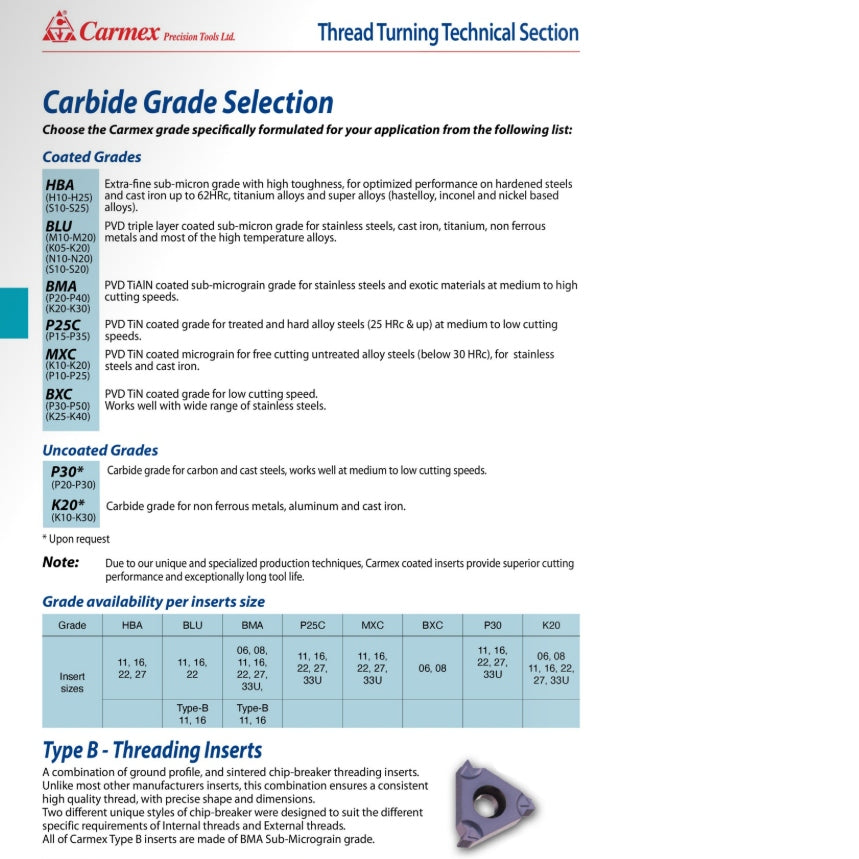

  • Carbide Grade: BMA
  • Applications: Internal Thread Turning for Unified Thread Forms
  • Key Advantage: Full-profile threading with high accuracy, wear resistance, and chip control

Carmex Precision Tools Ltd. is a globally recognized leader in the development and manufacturing of high-quality cutting tools. With a strong focus on innovation and precision, Carmex offers a comprehensive range of solutions for threading, turning, and milling applications. From Thread Turning Inserts and Toolholders to Mill Thread systems and Solid Carbide threadmills, Carmex products are trusted by professionals worldwide for their reliability, accuracy, and exceptional performance across diverse industries and materials.
