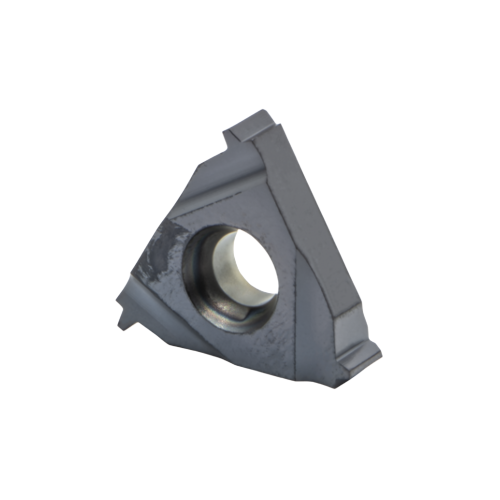

Carmex Internal Right Hand Trapezoidal (TR) Thread Turning Insert 27 mm / 7.0 mm Pitch / 27 IR 7 TR BMA

Internal Thread Turning Insert – Trapezoidal (DIN 103) The Carmex 27 IR 7 TR BMA is a precision internal thread turning insert designed for machining Trapezoidal (Tr) thread profiles in...
$81.02
$0.00
$81.02
(-0%)
Vendor: CARMEX
SKU: 27 IR 7 TR BMA
Availability: In Stock
Subtotal: $81.02
Carmex Internal Right Hand Trapezoidal (TR) Thread Turning Insert 27 mm / 7.0 mm Pitch / 27 IR 7 TR BMA

Carmex Internal Right Hand Trapezoidal (TR) Thread Turning Insert 27 mm / 7.0 mm Pitch / 27 IR 7 TR BMA

$0.00 $81.02

Carmex Internal Right Hand Trapezoidal (TR) Thread Turning Insert 27 mm / 7.0 mm Pitch / 27 IR 7 TR BMA

$0.00 $81.02

Internal Thread Turning Insert – Trapezoidal (DIN 103)

The Carmex 27 IR 7 TR BMA is a precision internal thread turning insert designed for machining Trapezoidal (Tr) thread profiles in accordance with DIN 103 standards. With a 7.0 mm pitch, this full-profile insert generates accurate thread geometry with well-defined flanks and roots, ensuring superior load-bearing performance and smooth motion transmission in power screw, lead screw, and actuator applications.

Manufactured from advanced BMA-grade carbide, this insert offers excellent wear resistance, edge stability, and heat tolerance. It performs exceptionally well on stainless steels, hardened steels, and tough alloys, ensuring stable cutting performance, smooth chip evacuation, and extended tool life even under high-stress threading conditions.

Key Features:

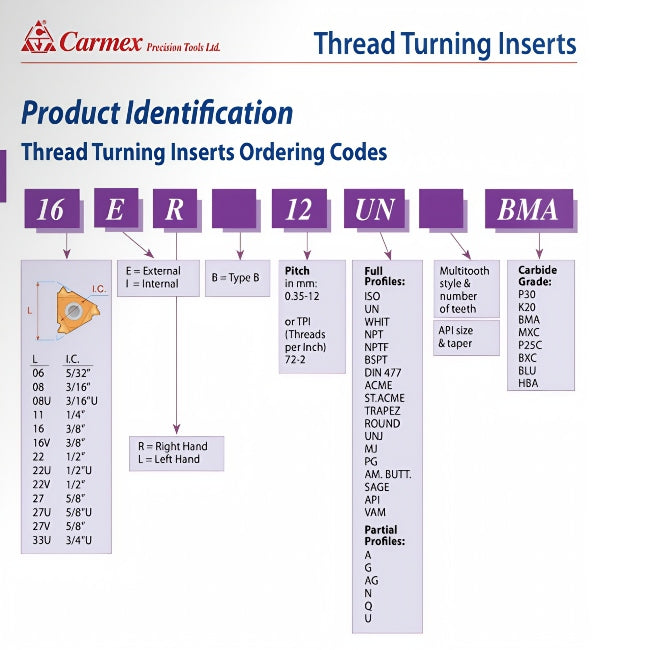

  • Ordering Code: 27 IR 7 TR BMA
  • Thread Type: Trapezoidal (DIN 103)
  • Profile: Full Form
  • Insert Type: Internal
  • Hand: Right Hand
  • L: 27 mm
  • I.C.: 5/8"
  • Pitch: 7.0 mm
  • X: 2.2 mm
  • Y: 2.6 mm

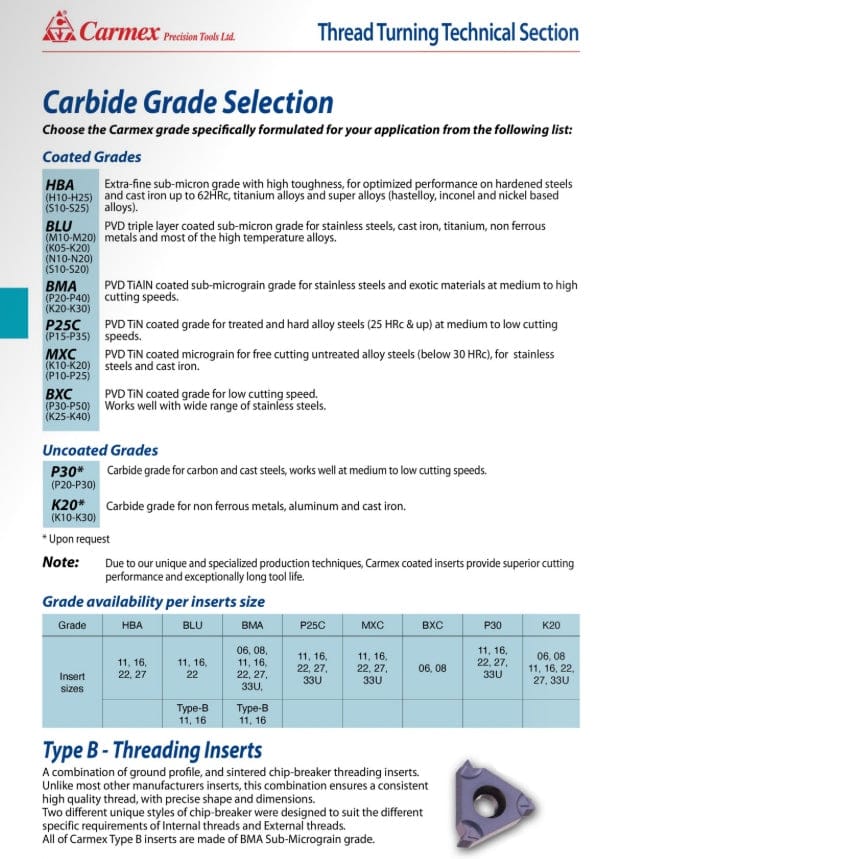

  • Carbide Grade: BMA
  • Applications: Internal thread turning for Trapezoidal (Tr) threads in mechanical transmission, power screw, and motion control systems
  • Key Advantage: Full-profile Trapezoidal threading insert delivering high accuracy, excellent flank definition, and outstanding wear resistance for large-pitch internal threads

Manufactured by Carmex Precision Tools Ltd.—a global leader in advanced threading and grooving technologies—this insert is part of a comprehensive product line including Thread Turning Inserts, Mill Thread systems, and Solid Carbide Threadmills. Renowned for precision, durability, and performance, Carmex tools are trusted worldwide in demanding machining applications.
