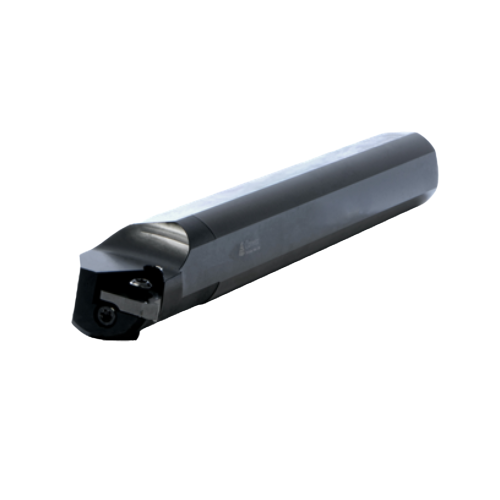

Carmex SIR 0040 T27 – Internal Right Hand Thread Turning Toolholder (40 mm Shank, 27 mm Insert)

The Carmex SIR 0040 T27 is a heavy-duty internal thread turning toolholder engineered for precision threading with 27 mm inserts. Featuring a rigid 40 mm shank and 1.5° helix angle, it provides exceptional strength, stability, and accuracy for large-diameter internal threading applications. The robust construction and precision-ground surfaces ensure consistent performance and long tool life even in demanding industrial operations.

Manufactured from premium hardened alloy steel, this toolholder guarantees excellent insert clamping, minimal deflection, and smooth cutting action. The SIR 0040 T27 is fully compatible with Carmex 27 IR inserts for ISO, UN, and Whitworth thread profiles, making it ideal for high-precision threading across multiple materials and thread standards.

Key Features & Benefits

  • Ordering Code: SIR 0040 T27
  • Type: Internal Thread Turning Toolholder
  • Hand: Right Hand
  • Clamping Method: Screw
  • Insert Length: 27 mm
  • Shank Diameter (D): 40 mm
  • Head Diameter (D1): 40 mm
  • Minimum Bore Diameter: 48 mm
  • Overall Length (L): 300 mm
  • Helix Angle: 1.5°
  • Compatible Inserts: Carmex 27 IR Series
  • Applications: Internal threading in large precision bores and deep-hole operations
  • Advantages: High rigidity | Smooth threading action | Long tool life

Carmex Precision Tools Ltd. is a globally recognized manufacturer of high-performance threading tools, offering advanced solutions for turning and milling applications. Their product range includes Thread Turning Inserts and Toolholders, Mill-Thread Inserts and Holders, Solid Carbide Mill-Thread Tools, and Spiral Mill-Thread Systems
