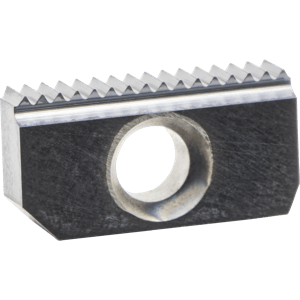

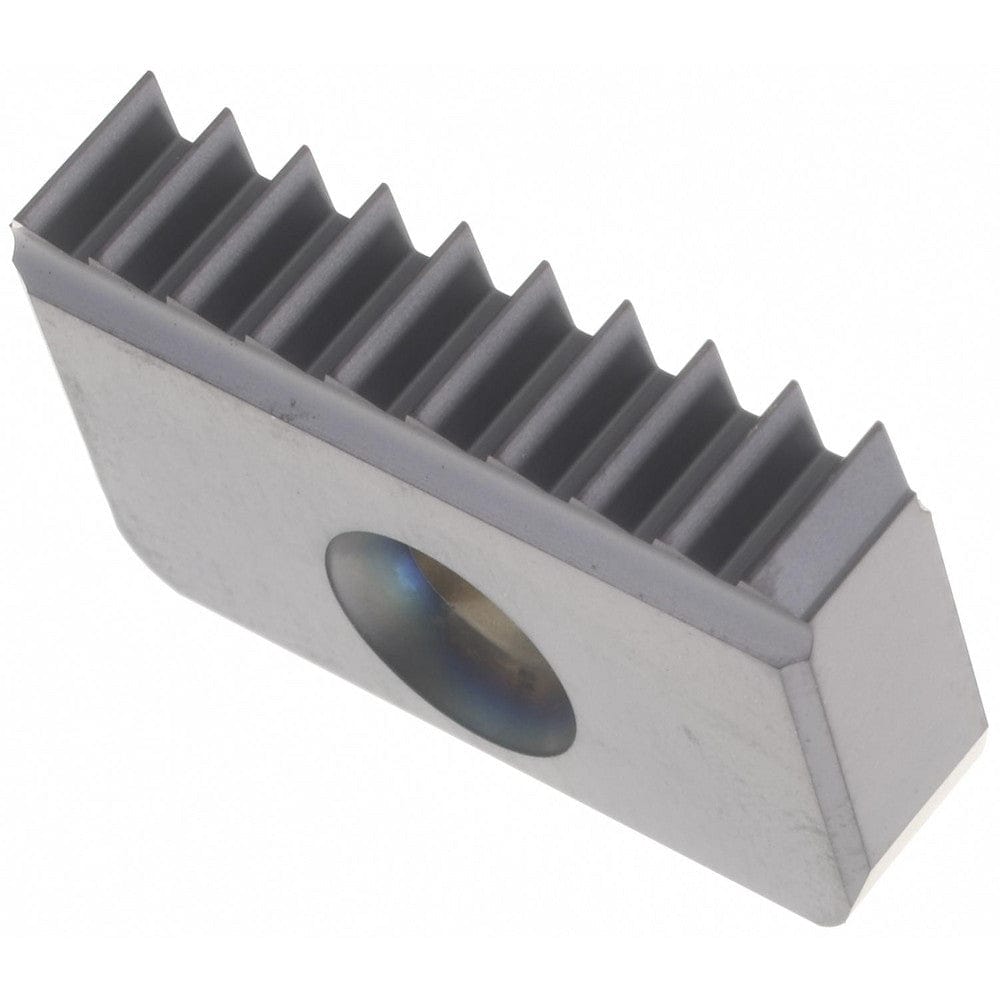

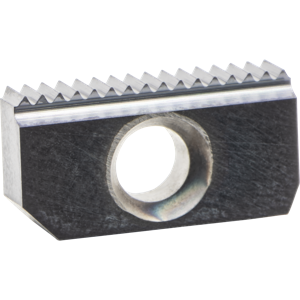

Carmex Internal ISO Threadmill Insert 12mm / 0.75mm Pitch / 12 I 0.75 ISO MT7

Mill-Thread Insert – ISO 0.75 mm Pitch, Internal The Carmex 12 I 0.75 ISO MT7 is a precision-engineered internal thread milling insert designed for producing ISO metric threads with a...
$93.38
$0.00
$93.38
(-0%)
Vendor: CARMEX
SKU: 12I075ISOMT7
Availability: In Stock
Subtotal: $93.38
Carmex Internal ISO Threadmill Insert 12mm / 0.75mm Pitch / 12 I 0.75 ISO MT7

Carmex Internal ISO Threadmill Insert 12mm / 0.75mm Pitch / 12 I 0.75 ISO MT7

$0.00 $93.38

Carmex Internal ISO Threadmill Insert 12mm / 0.75mm Pitch / 12 I 0.75 ISO MT7

$0.00 $93.38

Mill-Thread Insert – ISO 0.75 mm Pitch, Internal

The Carmex 12 I 0.75 ISO MT7 is a precision-engineered internal thread milling insert designed for producing ISO metric threads with a 0.75 mm pitch. Engineered for use with CNC milling machines utilizing helical interpolation, this insert provides exceptional accuracy and repeatability in small-diameter internal threads, ideal for high-precision applications in industries such as aerospace, medical, and instrumentation manufacturing.

Constructed from MT7 fine-grain carbide, it delivers outstanding wear resistance, hardness, and heat stability, ensuring long service life and consistent performance even under demanding cutting conditions. The insert’s compact size 12 design offers 6.3 mm height and 2.9 mm thickness, guaranteeing excellent stability and reduced vibration during machining.

It is fully compatible with Carmex SR Series toolholders, available in single, twin, and multi-insert styles. These holders offer superior rigidity, accuracy, and optional internal coolant delivery for improved chip evacuation and tool life.

Key Features & Benefits

  • Ordering Code: 12 I 0.75 ISO MT7
  • Thread Type: Internal Threading
  • Thread Profile: ISO – Metric 60°
  • Pitch (mm): 0.75
  • Insert Size: 12
  • H (Height): 6.3 mm
  • T (Thickness): 2.9 mm
  • Carbide Grade: MT7
  • Cutting Edge: Single
  • Applications: Precision internal ISO metric threading in fine-pitch components
  • Compatible Toolholders: SR Series (Single, Twin, or Multi-Insert)

Carmex Precision Tools Ltd. is globally renowned for its advanced threading technology, offering comprehensive solutions for turning, milling, and thread milling. The MT7 series ensures superior precision, long tool life, and compatibility across the full Carmex tooling ecosystem.
