Carmex Internal/External Whitworth Threadmill Insert 14mm / 19 TPI / 14 - 19 W MT7

Mill-Thread Insert – Whitworth 19 TPI, Internal / External The Carmex 14–19 W MT7 is a precision-engineered thread milling insert designed for cutting Whitworth (BSW/BSF/BSP) 55° threads with a 19...
$94.21
$0.00
$94.21
(-0%)
Vendor: CARMEX
SKU: 14-19WMT7
Availability: In Stock
Subtotal: $94.21
Carmex Internal/External Whitworth Threadmill Insert 14mm / 19 TPI / 14 - 19 W MT7

Carmex Internal/External Whitworth Threadmill Insert 14mm / 19 TPI / 14 - 19 W MT7

$0.00 $94.21

Carmex Internal/External Whitworth Threadmill Insert 14mm / 19 TPI / 14 - 19 W MT7

$0.00 $94.21

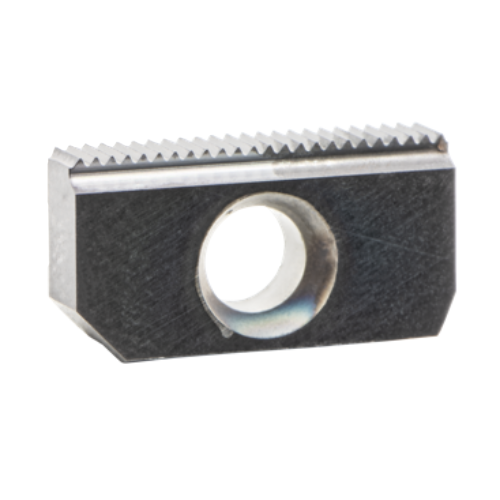

Mill-Thread Insert – Whitworth 19 TPI, Internal / External

The Carmex 14–19 W MT7 is a precision-engineered thread milling insert designed for cutting Whitworth (BSW/BSF/BSP) 55° threads with a 19 TPI pitch. Suitable for both internal and external applications, this insert ensures accurate thread form, excellent surface finish, and reliable repeatability, making it ideal for British Standard mechanical and pipe threading operations.

Crafted from MT7 fine-grain carbide, the insert offers superior wear resistance, hardness, and thermal stability for extended tool life and consistent cutting performance. With a size 14 body, 7.5 mm height, and 3.1 mm thickness, it provides excellent rigidity and vibration resistance during CNC helical interpolation threading.

Compatible with Carmex SR Series toolholders (single, twin, or multi-insert configurations), it delivers exceptional accuracy and productivity across a variety of Whitworth threading applications.

Key Features & Benefits

  • Ordering Code: 14–19 W MT7
  • Thread Type: Internal / External
  • Thread Profile: Whitworth (W) – 55°
  • TPI: 19
  • Insert Size: 14
  • H (Height): 7.5 mm
  • T (Thickness): 3.1 mm
  • Carbide Grade: MT7
  • Cutting Edge: Single
  • Applications: Whitworth thread milling for mechanical fittings, pipe connectors, and British Standard components
  • Compatible Toolholders: SR Series (Single, Twin, Multi-Insert)

Carmex Precision Tools Ltd. is globally recognized for its high-quality threading solutions, including Thread Turning Inserts, Mill-Thread Inserts, Solid Carbide Threadmills, and SR Toolholders — delivering precision, durability, and superior performance in industrial threading operations.
