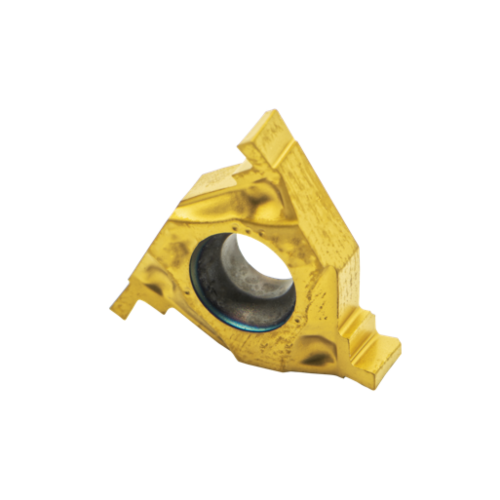

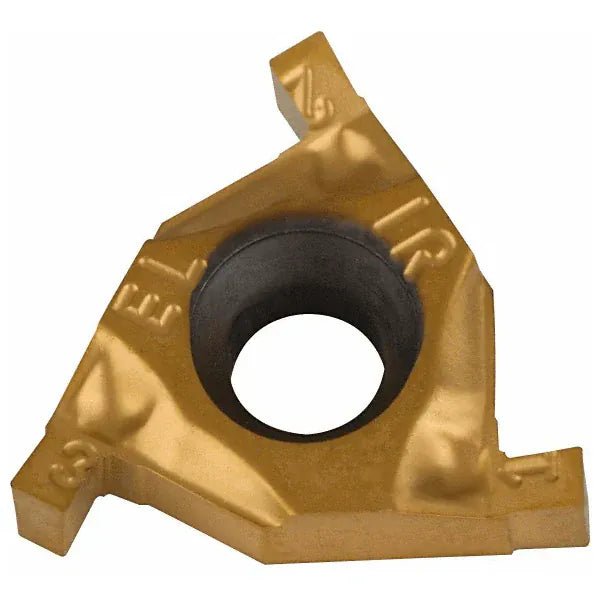

Carmex 16 IR/EL 1.00 BXC External/Internal Grooving Insert

Carmex External/Internal Grooving Insert 16 mm / 1.00 mm Width / 16 IR/EL 1.00 BXC

$0.00 $46.00

Carmex External/Internal Grooving Insert 16 mm / 1.00 mm Width / 16 IR/EL 1.00 BXC

$0.00 $46.00

External & Internal Grooving Insert – 1.00 mm Width (Neutral Cutting Edge)

The Carmex 16 IR/EL 1.00 BXC is a precision-engineered external and internal grooving insert designed for narrow groove and recess machining. With a 1.00 mm cutting width and versatile geometry, it enables accurate, stable performance in both internal and external operations, producing clean, burr-free grooves and reliefs across a range of materials.

Constructed from advanced BXC-grade carbide, the insert combines superior wear resistance with excellent edge integrity and heat stability. Its precision-ground cutting edge ensures consistent dimensional accuracy, excellent surface finish, and long tool life in high-precision turning or parting applications.

Key Features & Benefits

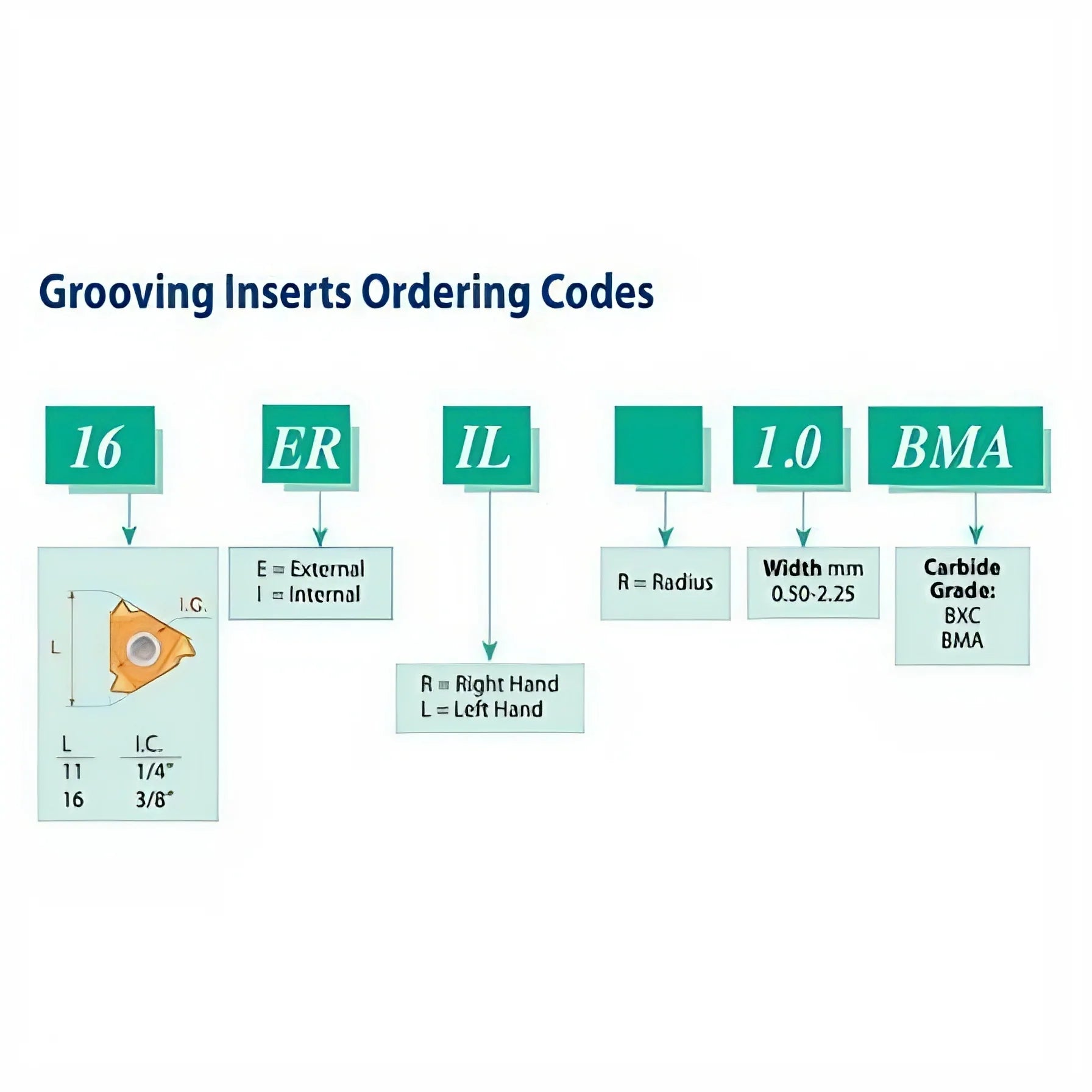

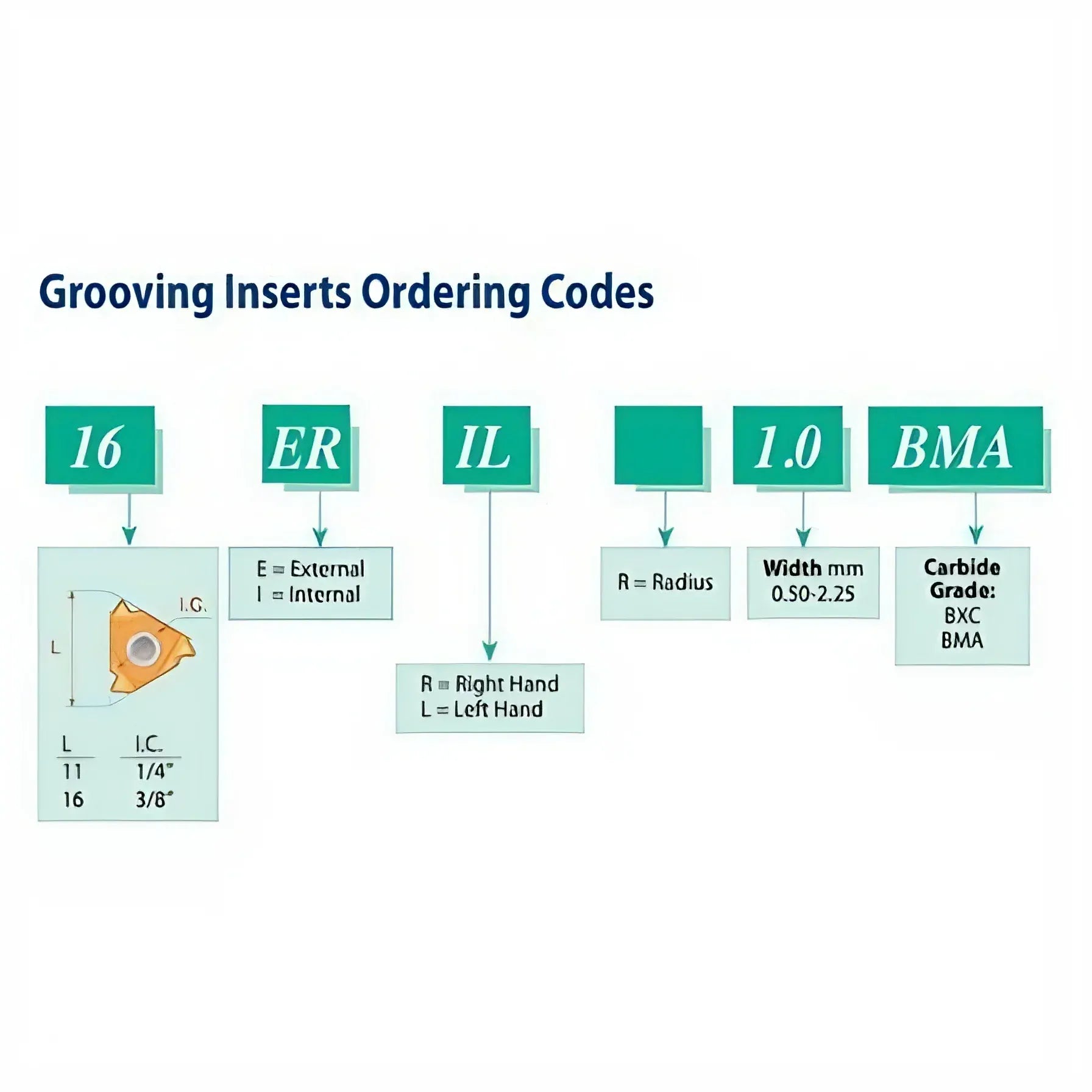

  • Ordering Code: 16 IR/EL 1.00 BXC
  • Operation Type: External & Internal Grooving
  • Cutting Width: 1.00 mm
  • Insert Size (L): 16 mm
  • Geometry: Neutral – usable in both IR & EL directions

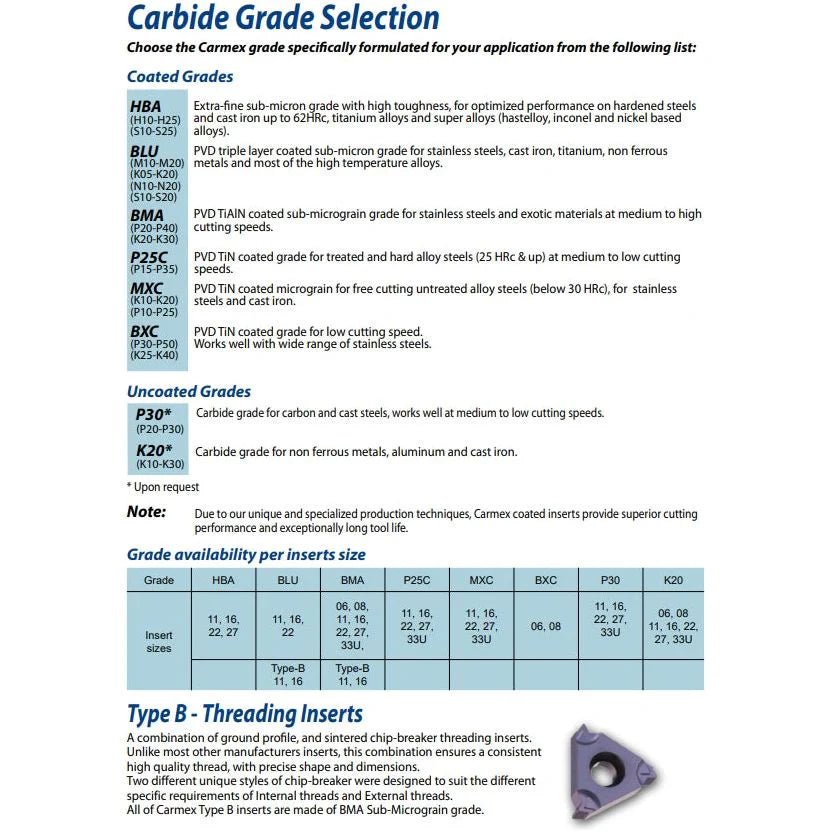

  • Carbide Grade: BXC (optimized for steel, stainless steel & non-ferrous materials)
  • Applications: Grooving, parting, and relief machining on external and internal surfaces
  • Advantages: High-precision narrow grooving insert with excellent wear resistance and surface finish in multi-directional operations

Manufactured by Carmex Precision Tools Ltd. — a global leader in threading and grooving technologies — this insert is part of Carmex’s comprehensive range of tooling solutions for precision turning and milling applications. Renowned for innovation, durability and performance, Carmex tools are trusted worldwide for their accuracy and consistency in high-demand machining environments.
