BT40 Shell Mill Arbor 27mm Pilot Diameter

The BT40 Shell Mill Arbor 27mm (BT40-FMB27-45) is built for high-rigidity face milling and precision CNC machining operations. Featuring a BT40 taper shank, a 27mm pilot diameter, and a compact...
$207.90
$0.00
$207.90
(-0%)
Vendor: Twin Eagle
SKU: 41-337-008
Availability: In Stock
Subtotal: $207.90
BT40 Shell Mill Arbor 27mm Pilot Diameter - Twin Eagle Imports

BT40 Shell Mill Arbor 27mm Pilot Diameter

$0.00 $207.90

BT40 Shell Mill Arbor 27mm Pilot Diameter

$0.00 $207.90

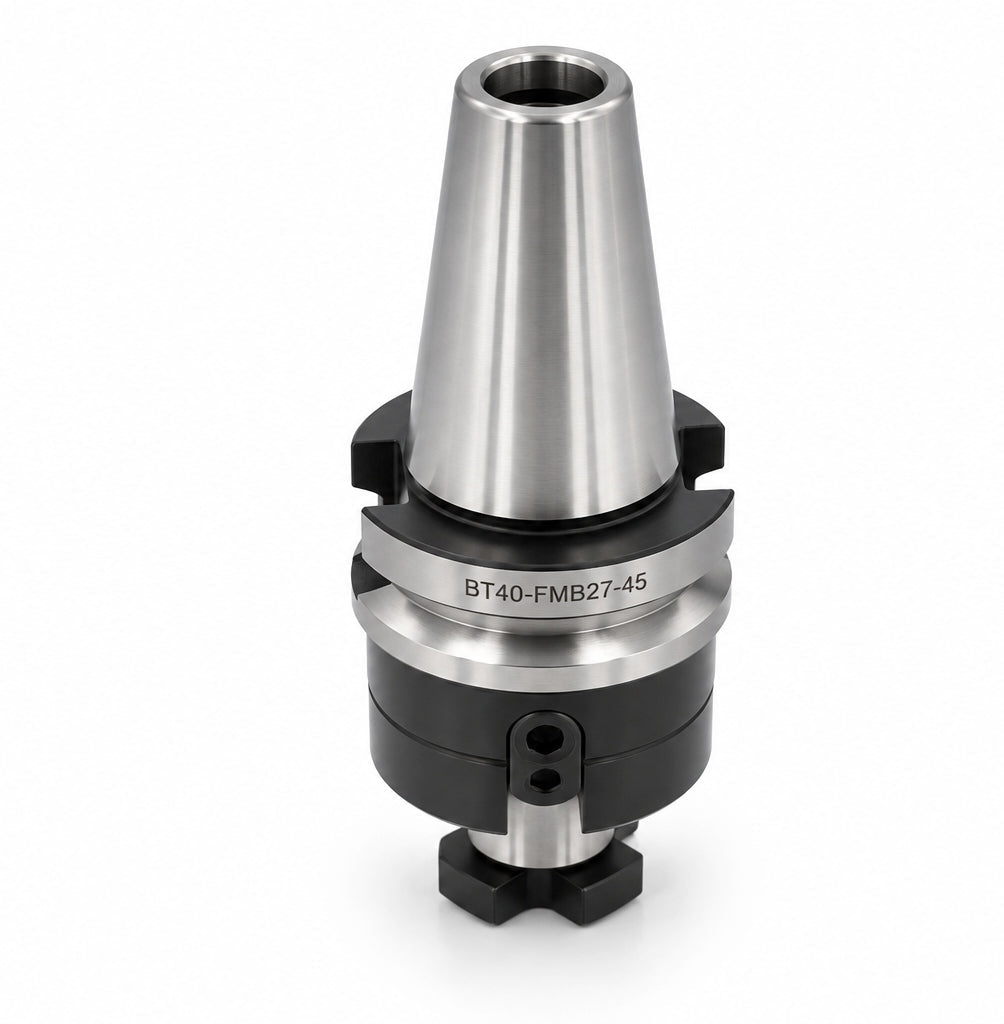

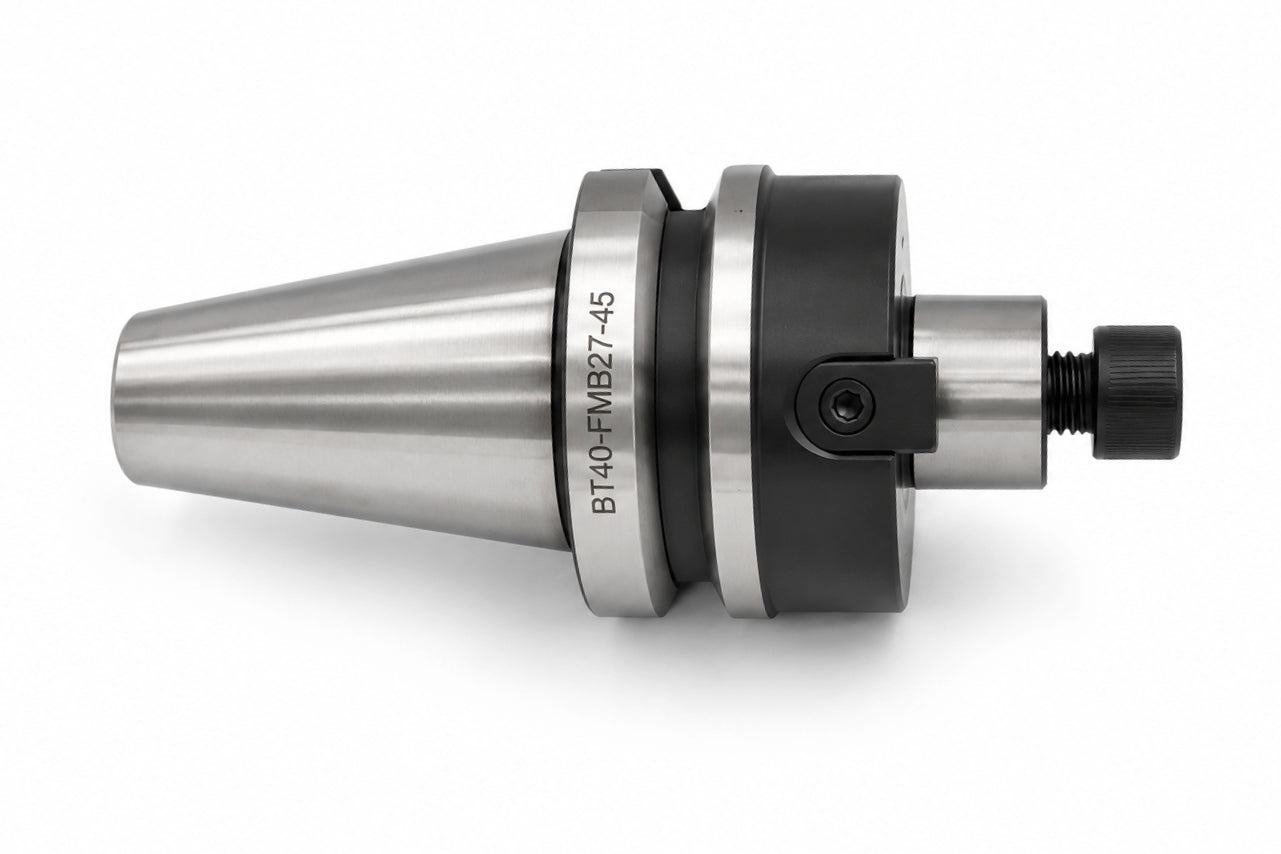

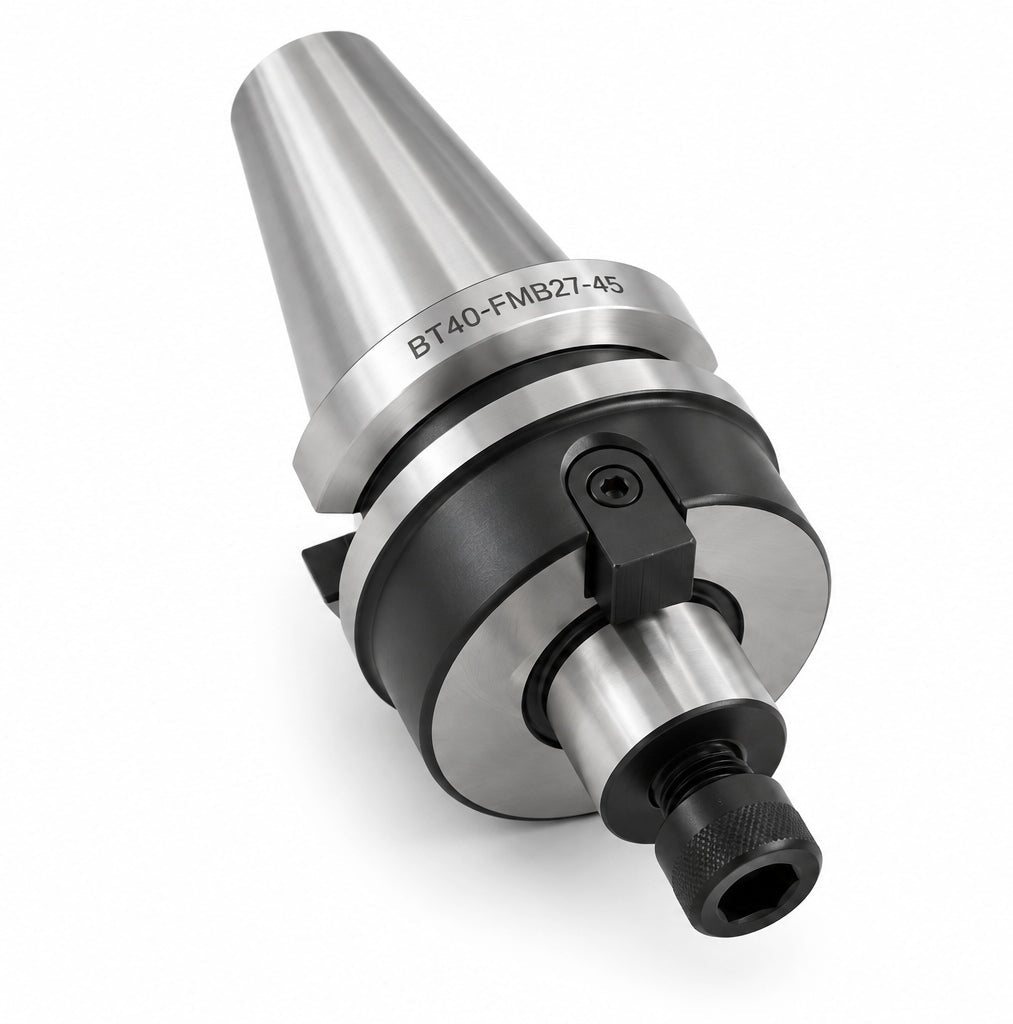

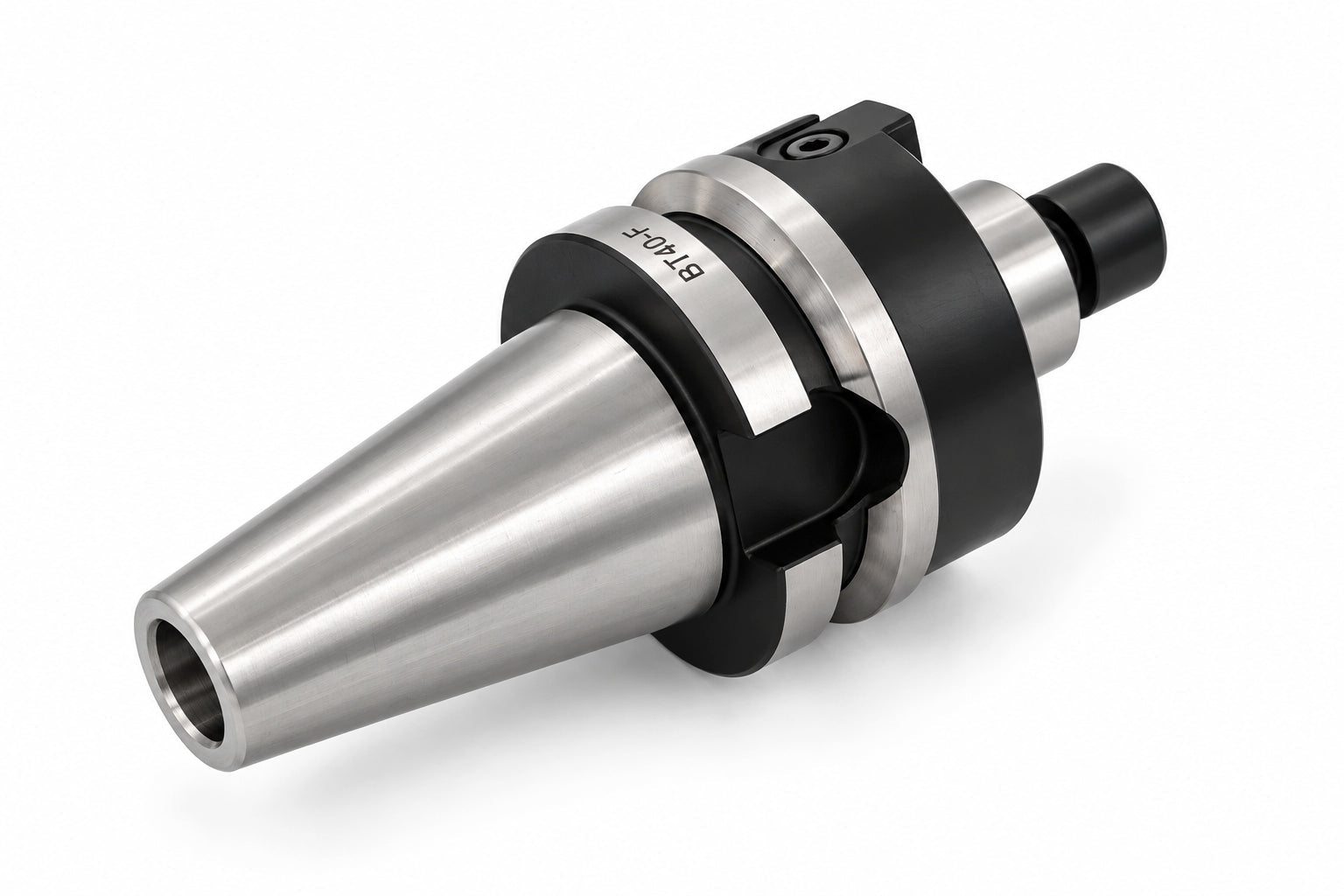

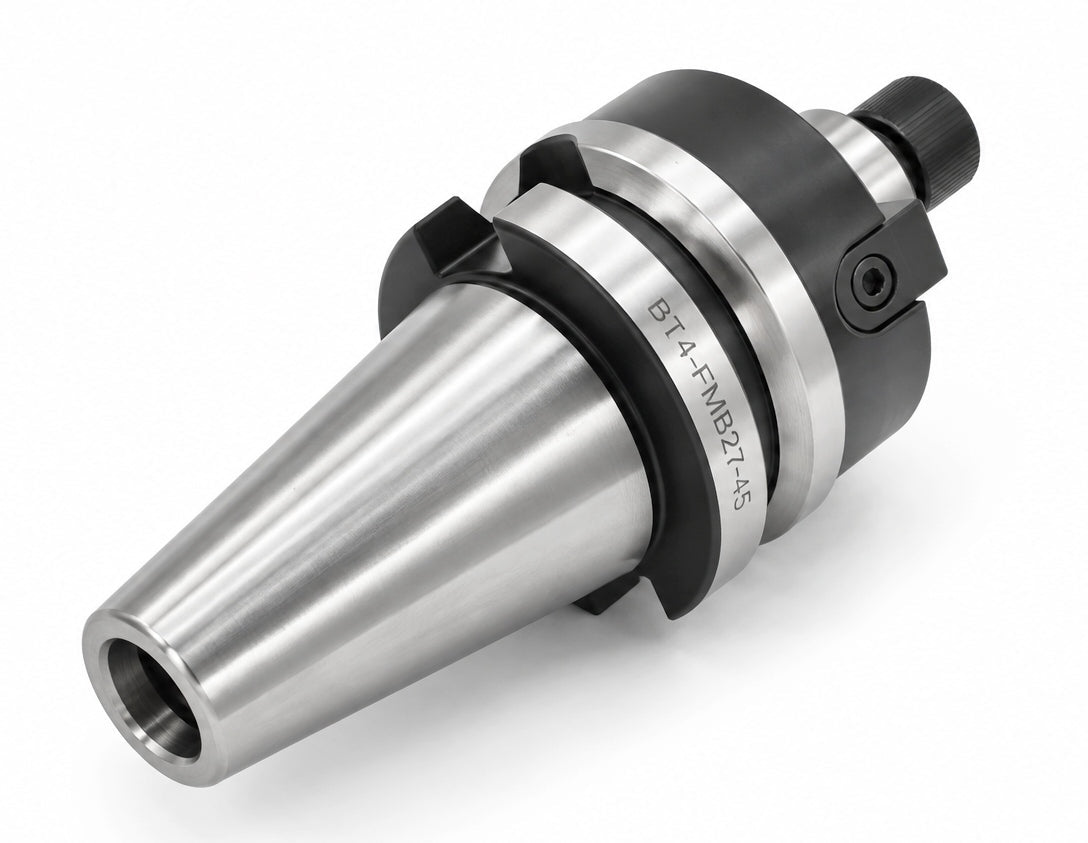

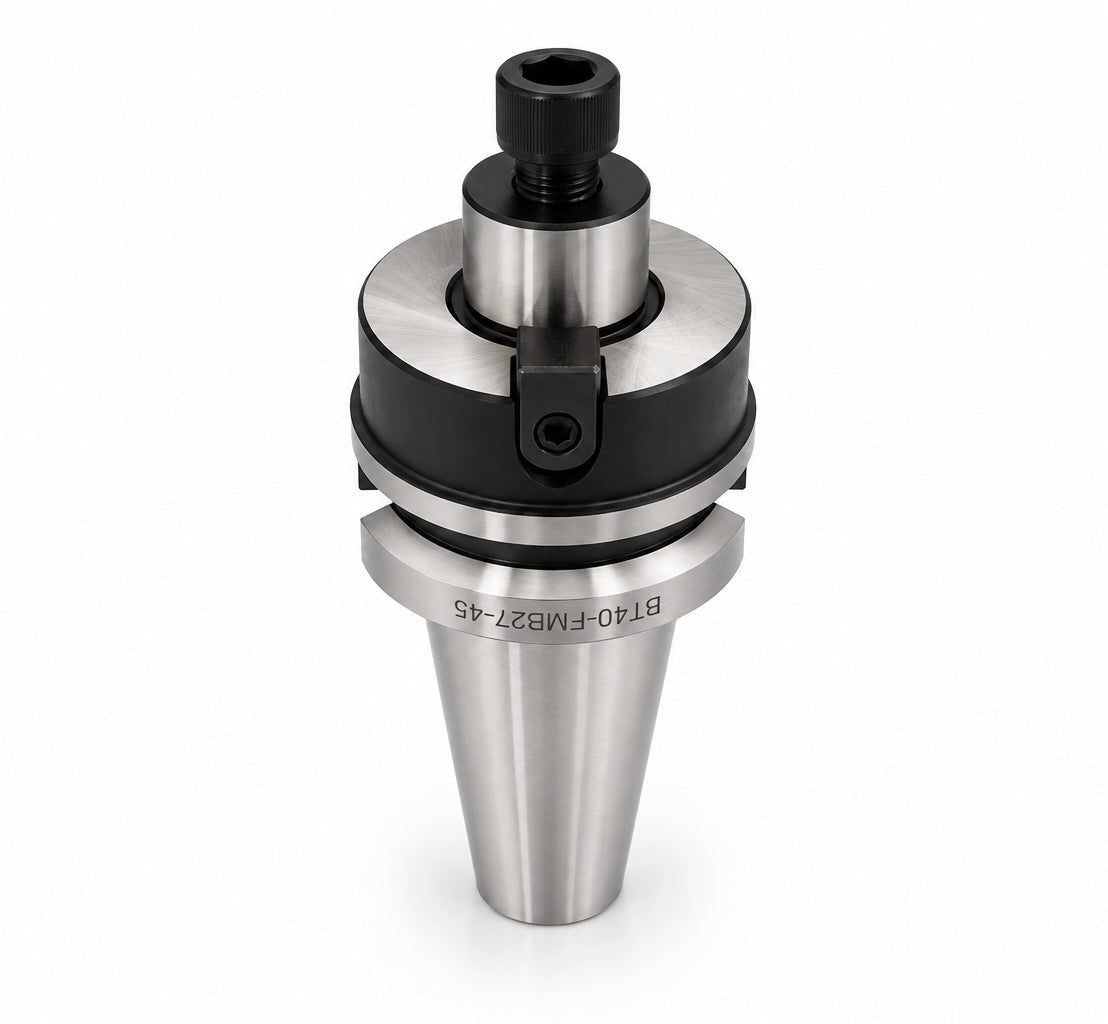

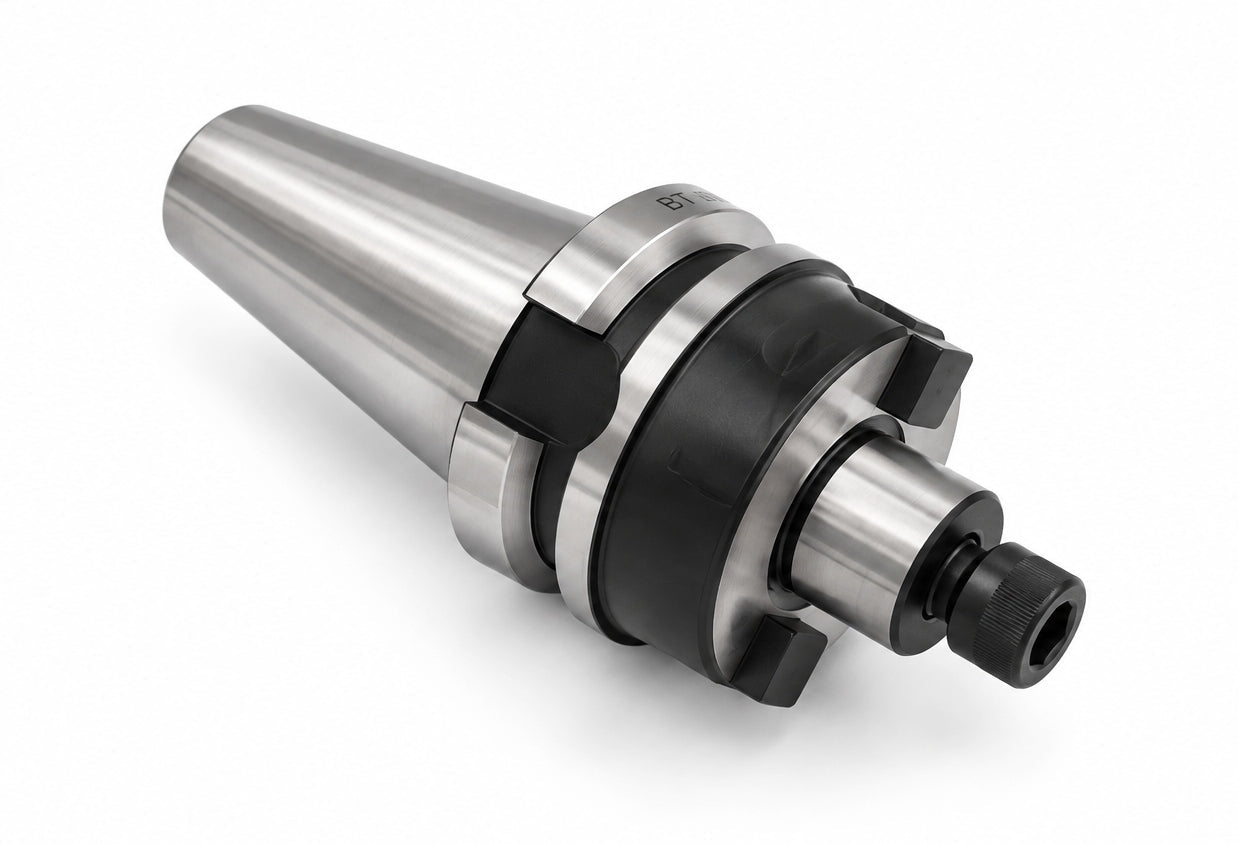

The BT40 Shell Mill Arbor 27mm (BT40-FMB27-45) is built for high-rigidity face milling and precision CNC machining operations. Featuring a BT40 taper shank, a 27mm pilot diameter, and a compact 45mm projection length, this toolholder delivers exceptional torque transmission and stability when holding indexable face mills and shell end mills.

Precision-ground throughout for superior concentricity and low runout, this arbor ensures balanced cutting forces, extended insert life, and superior surface finish quality during heavy face and shoulder milling cuts.

Key Features:

  • Hardened & Precision Ground: Manufactured from high-grade alloy steel and precision-ground for maximum rigidity and resistance to wear under heavy cutting loads.
  • Positive Drive Keys: Dual drive keys and a center locking screw provide maximum torque transfer while eliminating cutter slip.
  • BT40 Taper Shank: Standard BT40 taper engineered for high-speed CNC machining centers, VMCs, and automatic tool changers.
  • 27mm FMB Pilot Mount: Standard 27mm arbor pilot diameter compatible with a wide range of indexable face milling cutters.
  • Compact 45mm Projection: Short 45mm gage length minimizes overhang for increased dynamic stiffness and reduced vibration.

Product Specifications:

  • Shank Type: BT40 Taper
  • Arbor / Pilot Diameter: 27 mm (FMB27)
  • Projection / Gage Length: 45 mm
  • Model Code: BT40-FMB27-45
  • Item Code: 41-337-008
  • Material: Premium Alloy Steel (Hardened)
  • Application: Face Milling, Shoulder Milling, CNC Machining & VMC Operations
