AZ-7166 Plastic Plunger on Spring Loaded Element Limit Switch

Features Diverse actuators with adjustable action positions High switching capacity for both on and off (15A) Exceptional accuracy A broad range of operational speeds Each type offers a choice of...
$32.00
$32.00
(-0%)
Vendor: Tianyi
SKU: AZ-7166
Availability: In Stock
Subtotal: $32.00

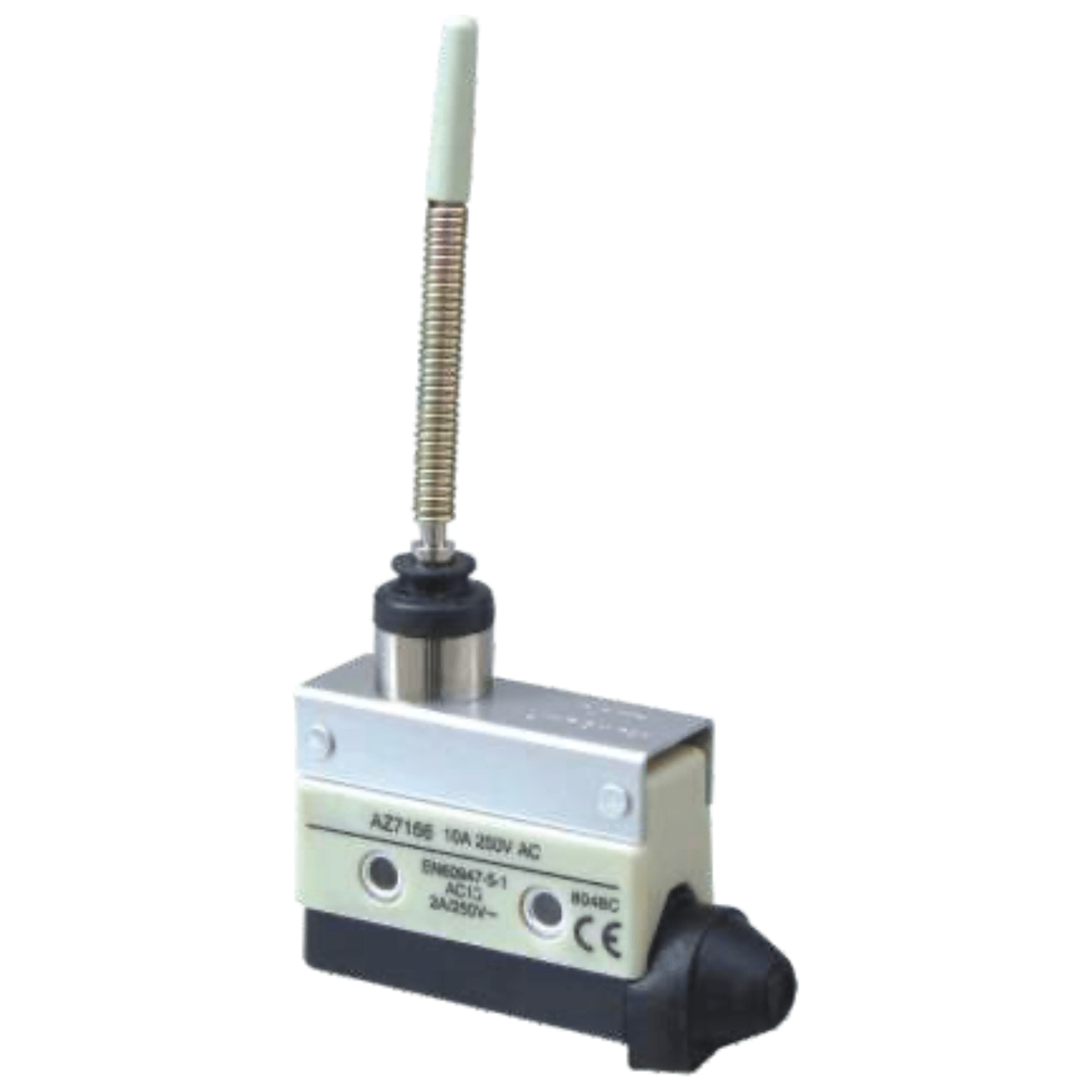

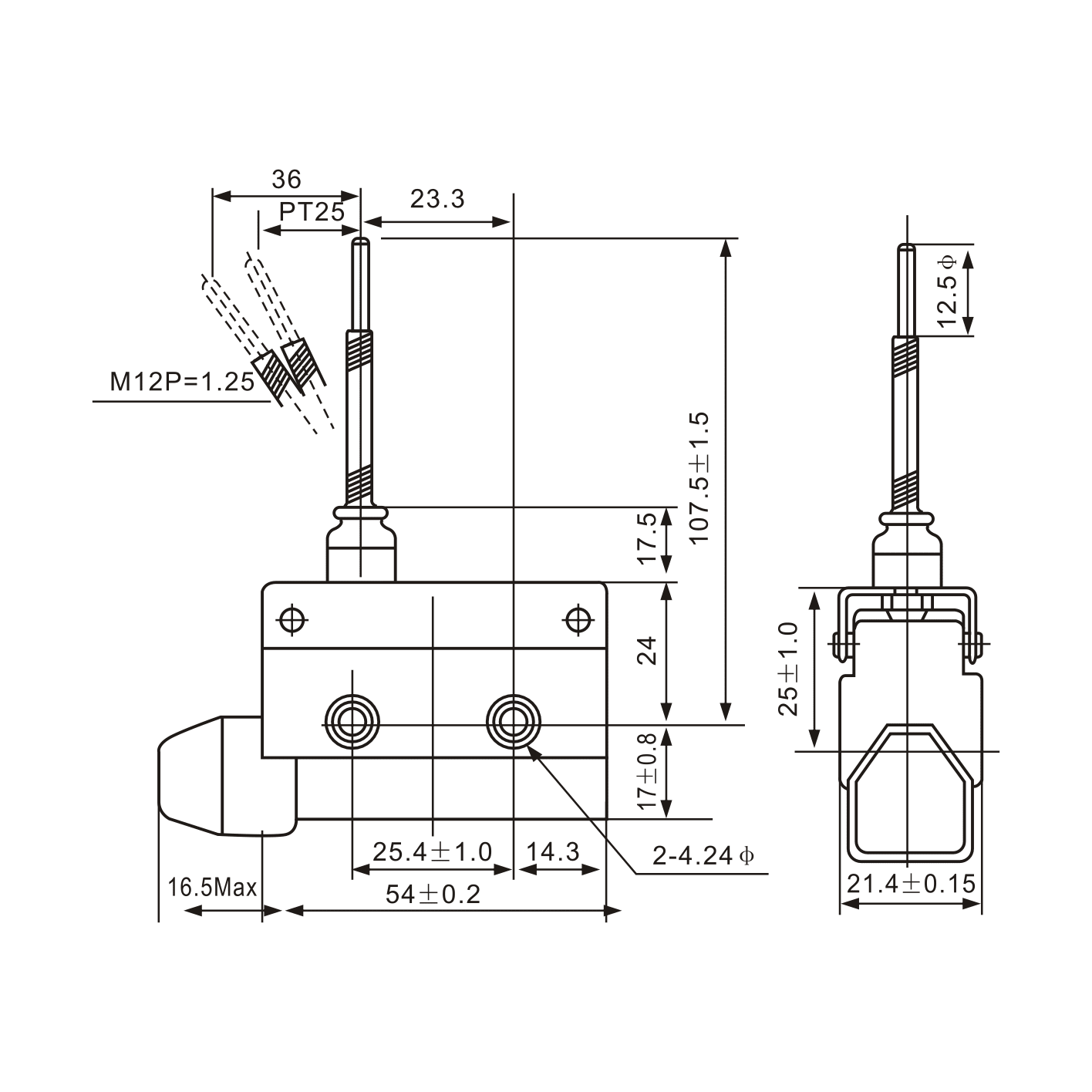

AZ-7166 Plastic Plunger on Spring Loaded Element Limit Switch

AZ-7166 Plastic Plunger on Spring Loaded Element Limit Switch

$32.00

AZ-7166 Plastic Plunger on Spring Loaded Element Limit Switch

$32.00

Features

  • Diverse actuators with adjustable action positions
  • High switching capacity for both on and off (15A)
  • Exceptional accuracy
  • A broad range of operational speeds
  • Each type offers a choice of solder terminals, tab terminals (marked as 'C'), or blank options for screw terminals.

Ratings

Rated Voltage Non-inductive load(A) Inductive load(A)
Resistance load Lamp Load Inductive load Motor Load
NC NO NC NO NC NO NC NO
125VAC 10 3 1.5 10 5 2.5
250VAC 10 2.5 1.25 10 3 1.5
480VAC 3 1.5 0.75 2.5 1.5 0.75
8VDC 10 3 1.5 6 6 5
14VDC 10 3 1.5 6 6 5
30VDC 8 3 1.5 6 5 2.5
125VDC 0.5 0.4 0.4 0.05 0.05 0.05
250VDC 0.25 0.2 0.2 0.03 0.03 0.03

Contact Form

  • close
  • Carry the son together open
  • Notes:
  • Inductive load has a power factor of 0.4 min(AC)and a time constant of 7 ms.

    lamp load has inrush current of 10 times the steady-state current, while motor load has an inrush current of 6 times the steady-state current.

Characteristics

Operation speed 0.01mm-50cm/sec 1mm-2m/sec
Operation Frequency 120 Mechanical:120operations/minute
Contact resistance 15㏁ 15㏁max (initial value)
Insulation resistance 100㏁ 500VDC 100㏁ min (at500VDC)
Dielectric strength 1000VAC , 50/60Hz 1000VAC , 50/60Hz For 1 minute between terminals of the same polarity
1500VAC , 50/60Hz 1500VAC , 50/60Hz For 1 minute between current-carrying and non current-carrying metal parts
1500VAC , 50/60Hz 1500VAC , 50/60Hz For 1 minute between each terminal and ground
Vibration 10-50Hz,1.5mm 10-50Hz,1.5mm double amplitude
Shock 1000m/Sec2(100G'S) Mechanical durable:1000m/Sec2(about 100G' S)
300m/Sec2(30G'S) Malfunction:300m/Sec2(about 30G' S)
Ambient temperature -10-+80°C Use:-10-+80°C
Humidity 95%RH <95%RH
Life 10,000,000(OT) Mechanical:100,000,000 operations above(under rated OT)
500,000 Electrical:500,000 operations above
Weight 60 About 60g
Degree of Protection IP40 IP40
