Aquaseal FlashRite #5 Metal Roof Pipe Flashing Red 125-200mm

AFS5R125-200 FlashRite Roof Flashing Aquaseal FlashRite #5 Metal Roof Pipe Flashing Silicone Red 125-200mm is expertly engineered to create a watertight seal around pipe penetrations on metal roofs. Designed to...
$69.00
$69.00
(-0%)
Vendor: Aquaseal
SKU: AFS5R125-200
Availability: In Stock
Subtotal: $69.00
Aquaseal FlashRite #5 Metal Roof Pipe Flashing Red 125-200mm

Aquaseal FlashRite #5 Metal Roof Pipe Flashing Red 125-200mm

$69.00

Aquaseal FlashRite #5 Metal Roof Pipe Flashing Red 125-200mm

$69.00

AFS5R125-200 FlashRite Roof Flashing

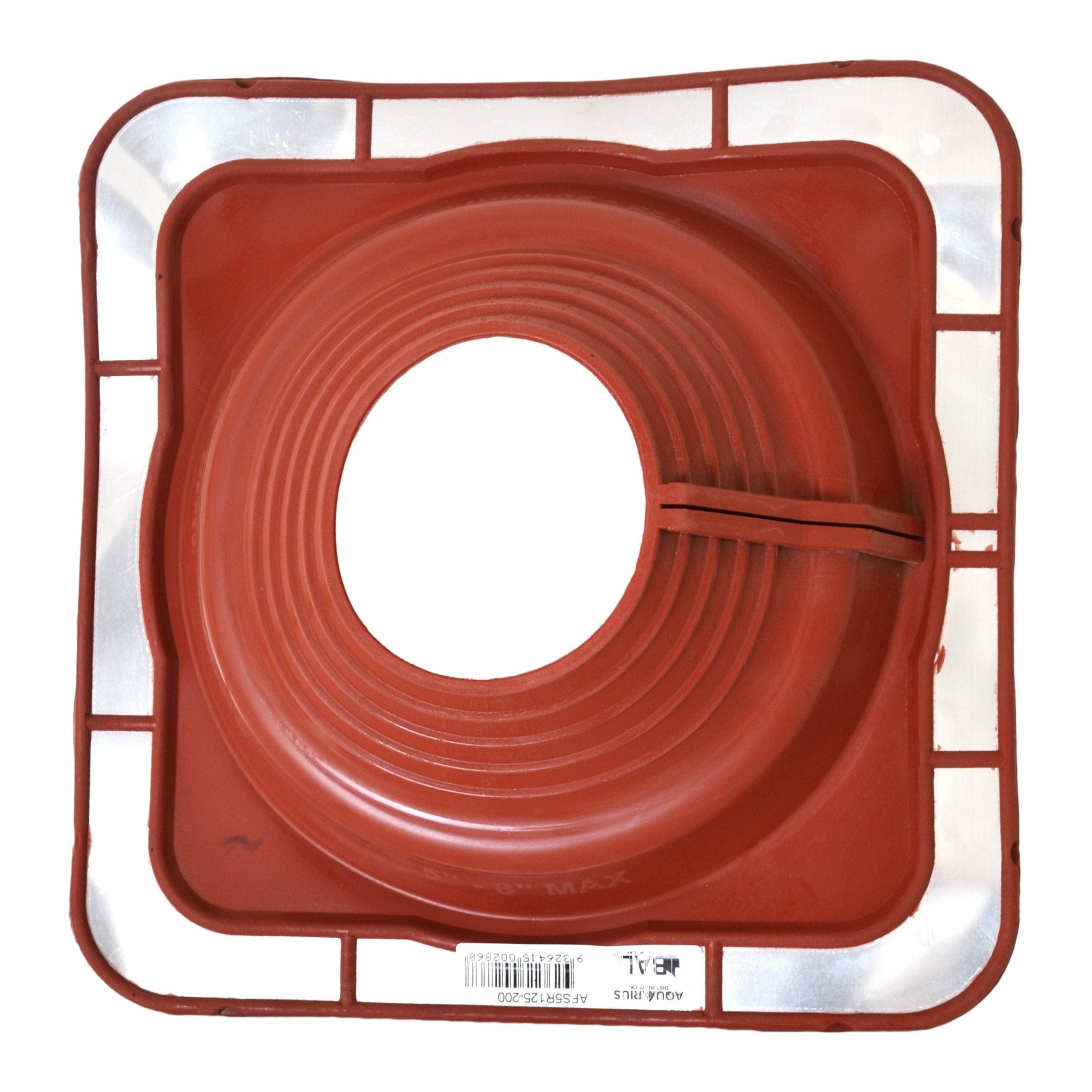

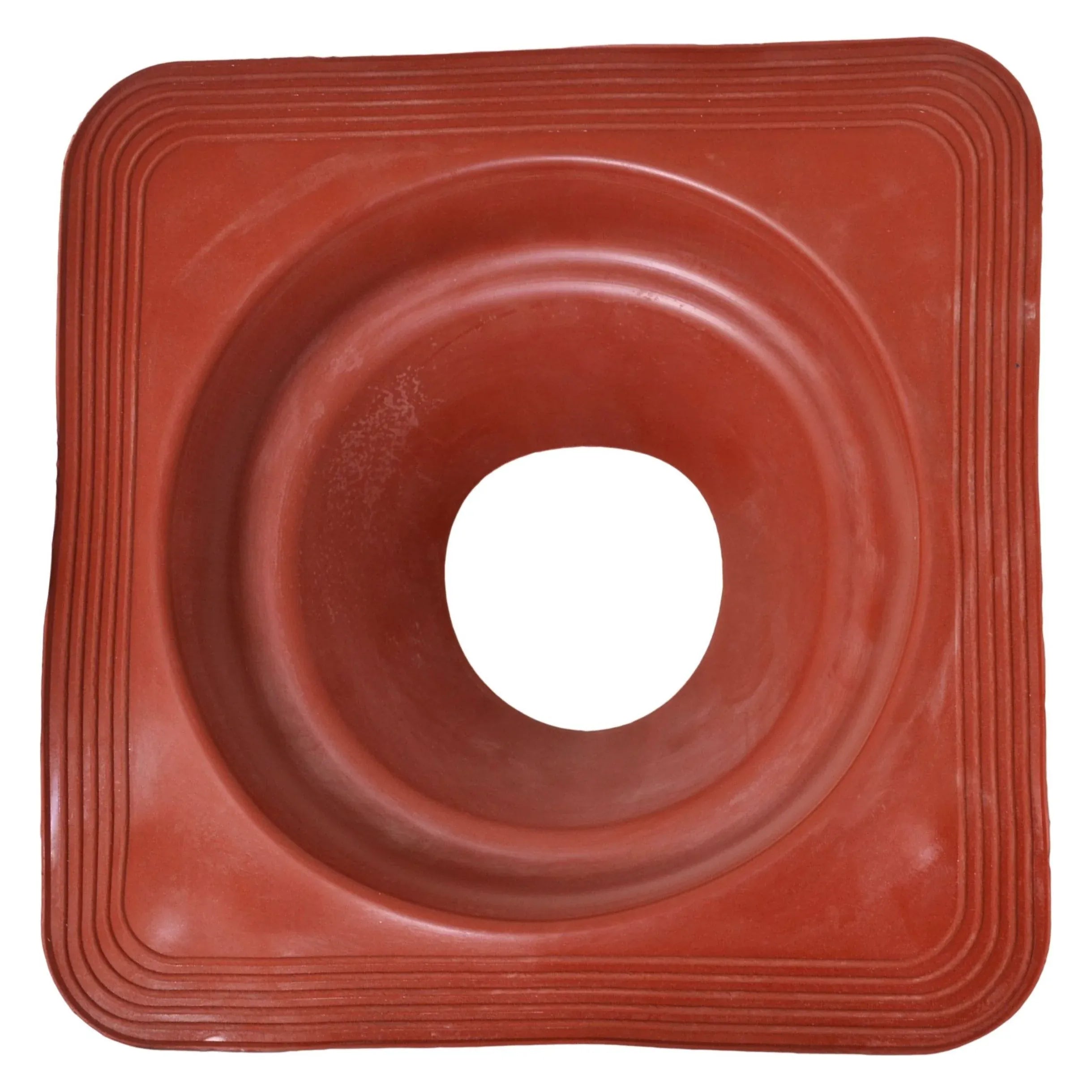

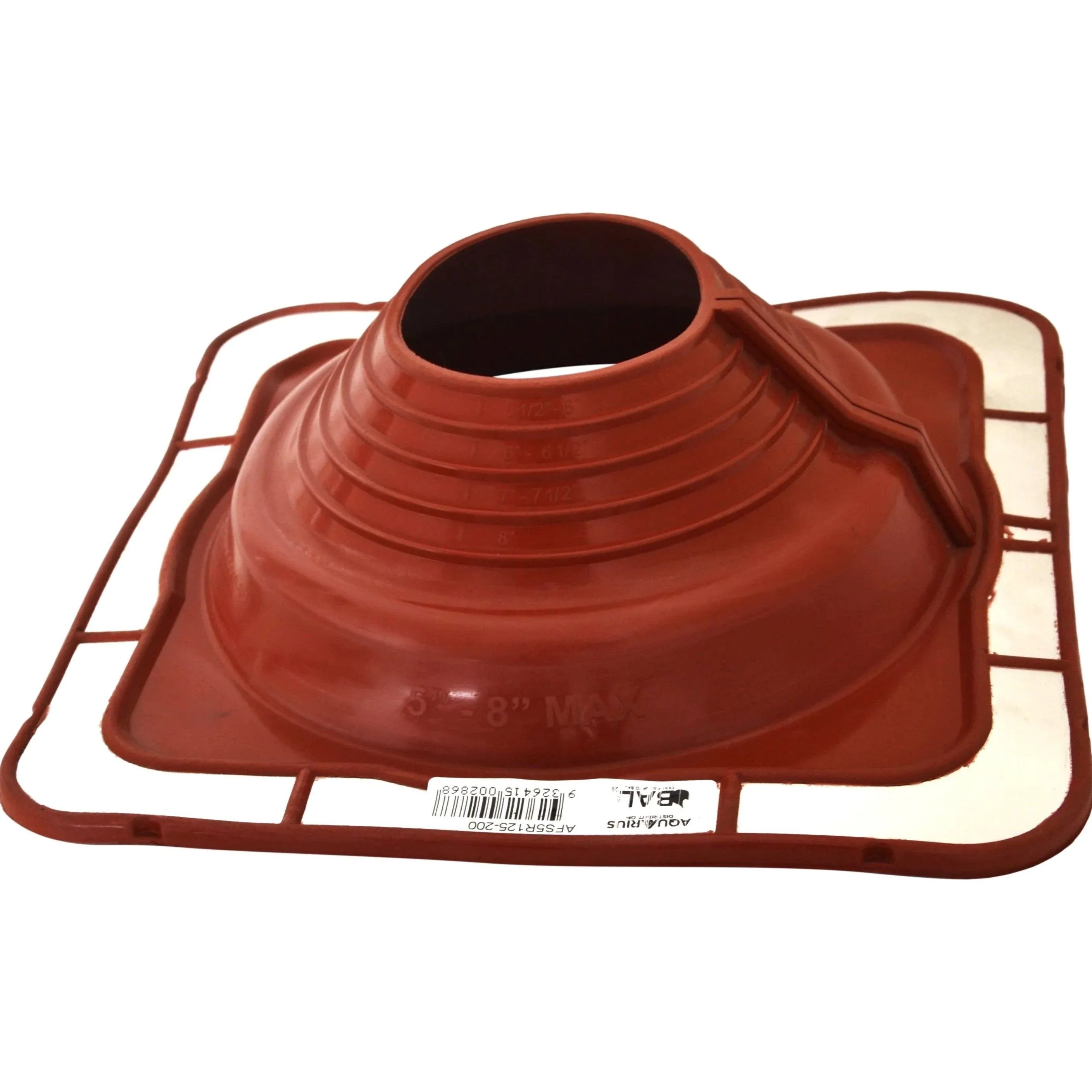

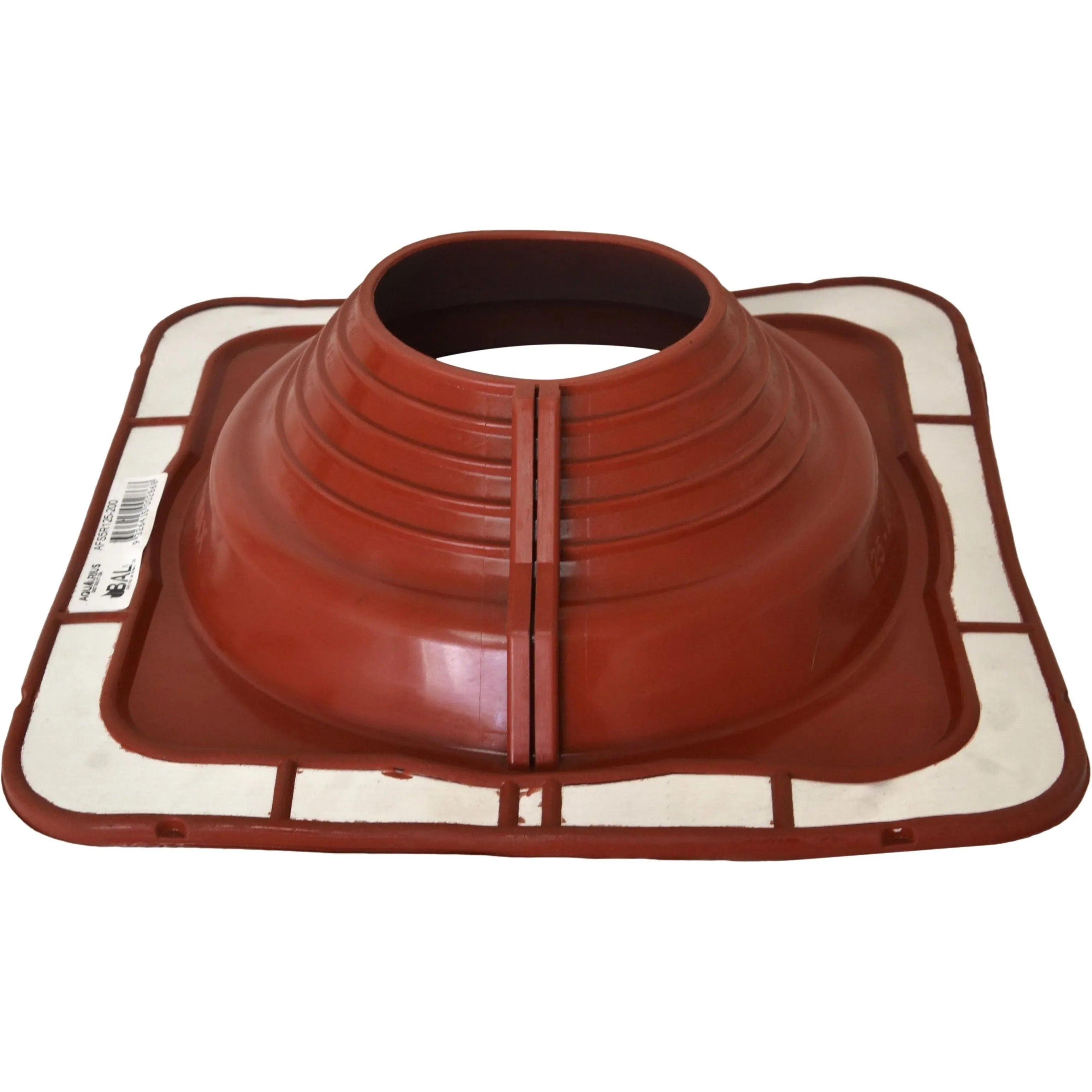

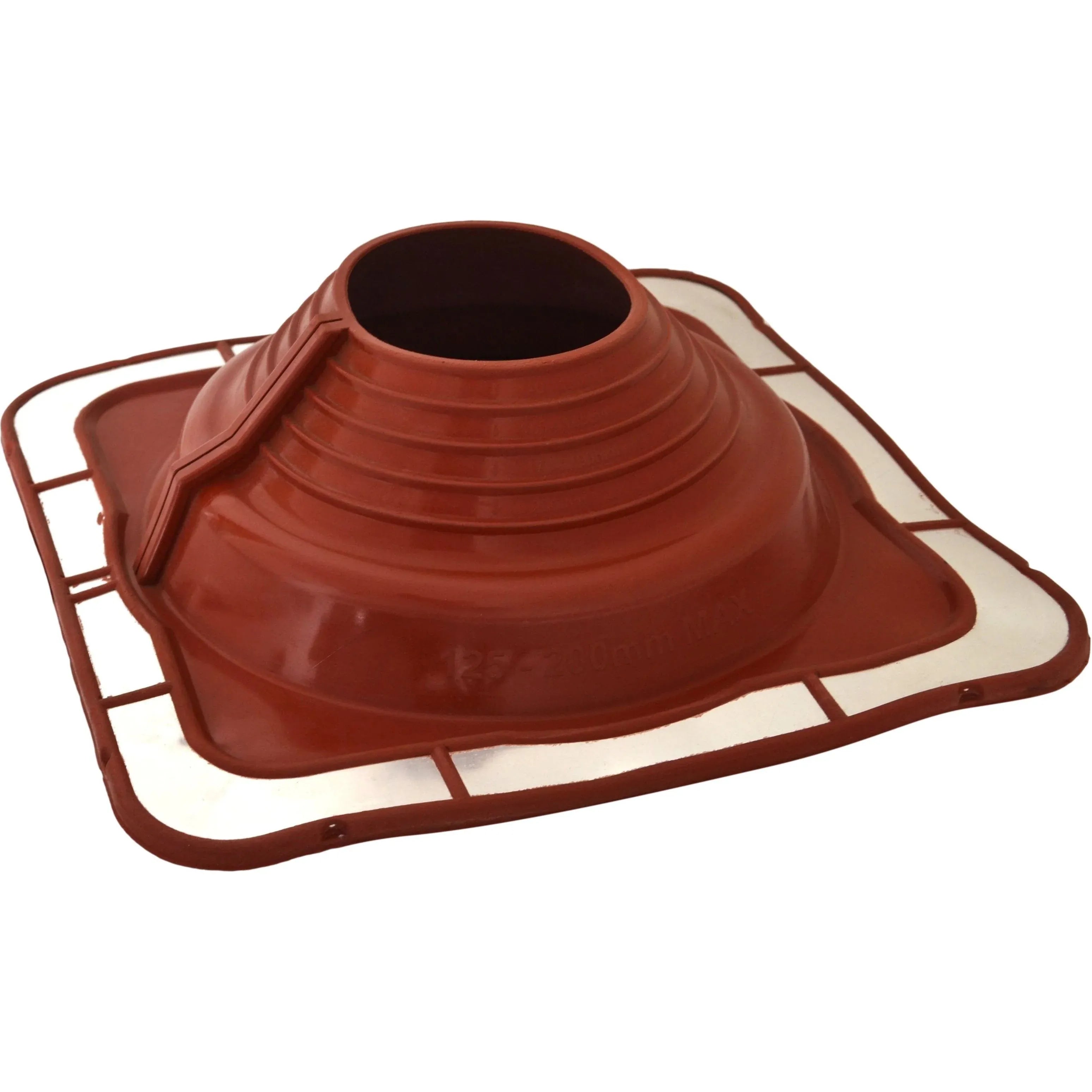

Aquaseal FlashRite #5 Metal Roof Pipe Flashing Silicone Red 125-200mm is expertly engineered to create a watertight seal around pipe penetrations on metal roofs. Designed to withstand harsh Australian weather conditions, this FlashRite is tailored for 200-300mm pipes and offers UV resistance and temperature stability ranging from -50°C (-58°F) to 200°C (392°F). It is ideal for BAL29 areas and comes with a 20-year warranty, making it a reliable choice for Australian conditions.

PRODUCT FEATURES :

  • FlashRite #5 Metal Roof Pipe Flashing Silicone Red 125-200mm
  • Part No : AFS5R125-200
  • FlashRite is for 125-200mm pipes and is suitable for metal roofs only
  • Made from Silicone, UV resistant, and has a temperature between -50°C (-58°F) to 200°C (392°F).
  • Suitable for both standard and retrofit application.
  • Supplied with 5 stainless steel retrofit clips
  • Designed and manufactured to withstand the harsh Australian weather conditions.

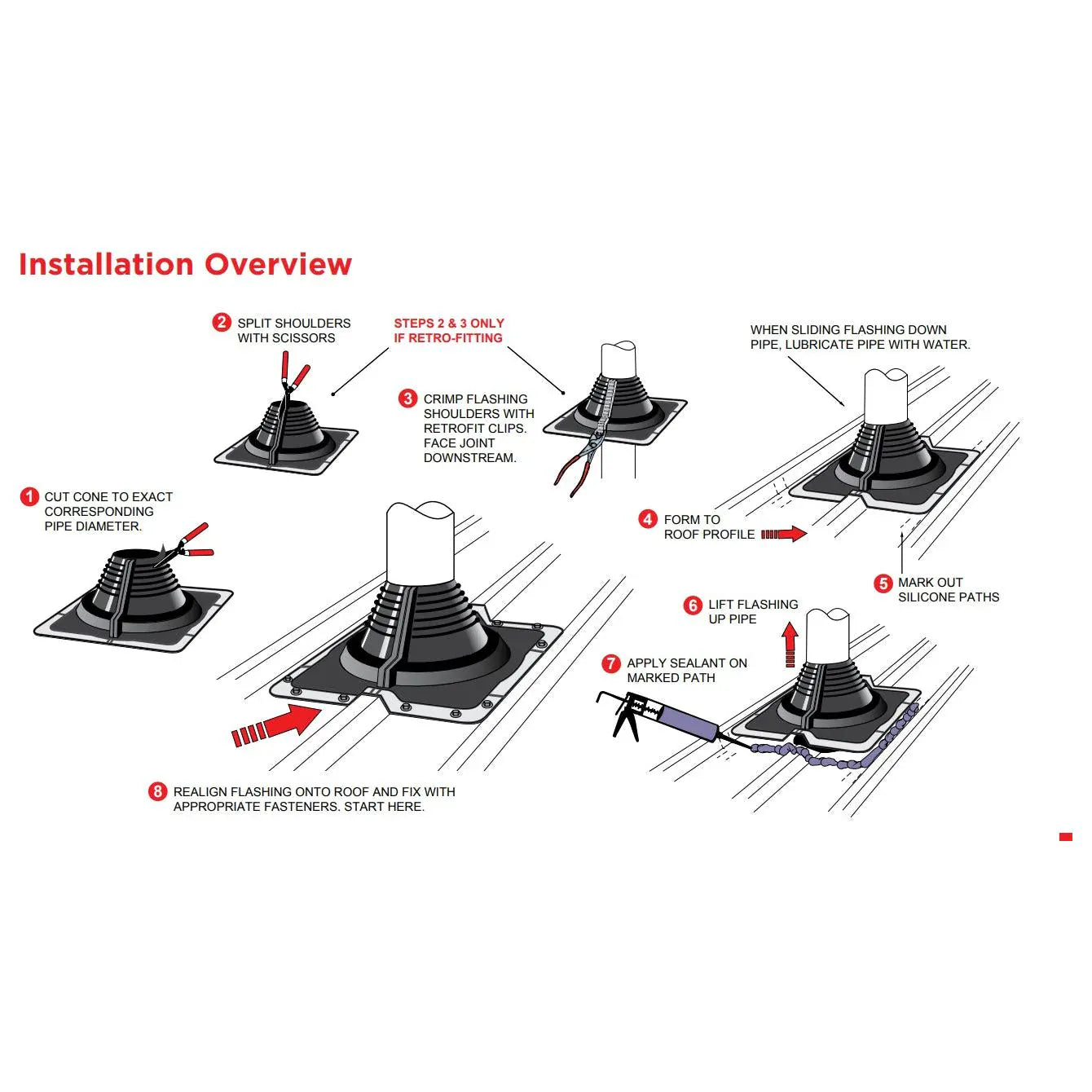

Installation :

  • Cut the cone to the exact matching pipe diameter.
  • Slide down the pipe using water to lubricate.
  • Form to match the roof profile.
  • Mark out edge for silicone seal.
  • Lift flashing to allow access for silicone seal.
  • Apply silicone.
  • Replace flashing to marked location and fix with selected fasteners.

Retrofit Installation :

  • Cut the cone to the exact matching pipe diameter.
  • Split shoulder with scissors down pathway.
  • Situate around the pipe diameter, take care to face joint downstream.
  • Crimp flashing shoulder with the provided clips.
  • Form to match the roof profile.
  • Mark out edge for silicone seal.
  • Lift flashing to allow access for silicone seal.
  • Apply silicone.
  • Replace flashing to marked location and fix with selected fasteners.
Aquaseal
FlashRite
Black EPDM
Code
Red Silicone
Code
Grey EPDM
Code
METRIC:
Pipe Size
(25° roof pitch)
METRIC:
Pipe Size
(45° roof
pitch)
IMPERIAL:
Pipe Size
(25° roof pitch)
IMPERIAL:
Pipe Size
(45° roof
pitch)
Base size Max
retrofit
clips
required
Mini AFE0B3-20 AFS0R3-20 AFE0G3-20 3-25mm 3-20mm ⅛"-1" ⅛"-¾" 80x80mm n/a
No. 1 AFE1B5-45 AFS1R5-45 AFE1G5-45 5-50mm 5-40mm ⅕"-2" ⅕"-1½" 120x120mm n/a
No. 2 AFE2B25-70 AFS2R25-70 AFE2G25-70 25-70mm 25-65mm 1"-2¾" 1"-2½" 163x163mm 3
No. 3 AFE3B50-100 AFS3R50-100 AFE3G50-100 50-100mm 50-80mm 2"-4" 2"-3⅛" 210x210mm 4
No. 4 AFE4B90-150 AFS4R90-150 AFE4G90-150 90-150mm 90-130mm 3½"-6" 3½"-5" 260x260mm 5
No. 5 AFE5B125-200 AFS5R125-200 AFE5G125-200 125-200mm 125-165mm 5"-8" 5"-6½" 313x313mm 5
No. 6 AFE6B150-230 AFS6R150-230 AFE6G150-230 150-250mm 150-230mm 6"-10" 6"-9" 370x370mm 6
No. 7 AFE7B200-300 AFS7R200-300 AFE7G200-300 195-300mm 195-255mm 8"-11⅚" 8"-10" 440x440mm 7
