Aluminium Alloy pipe plug with 13 mm bypass 94-110mm 031/203 MPA 100-13
Click to enlarge

in stock

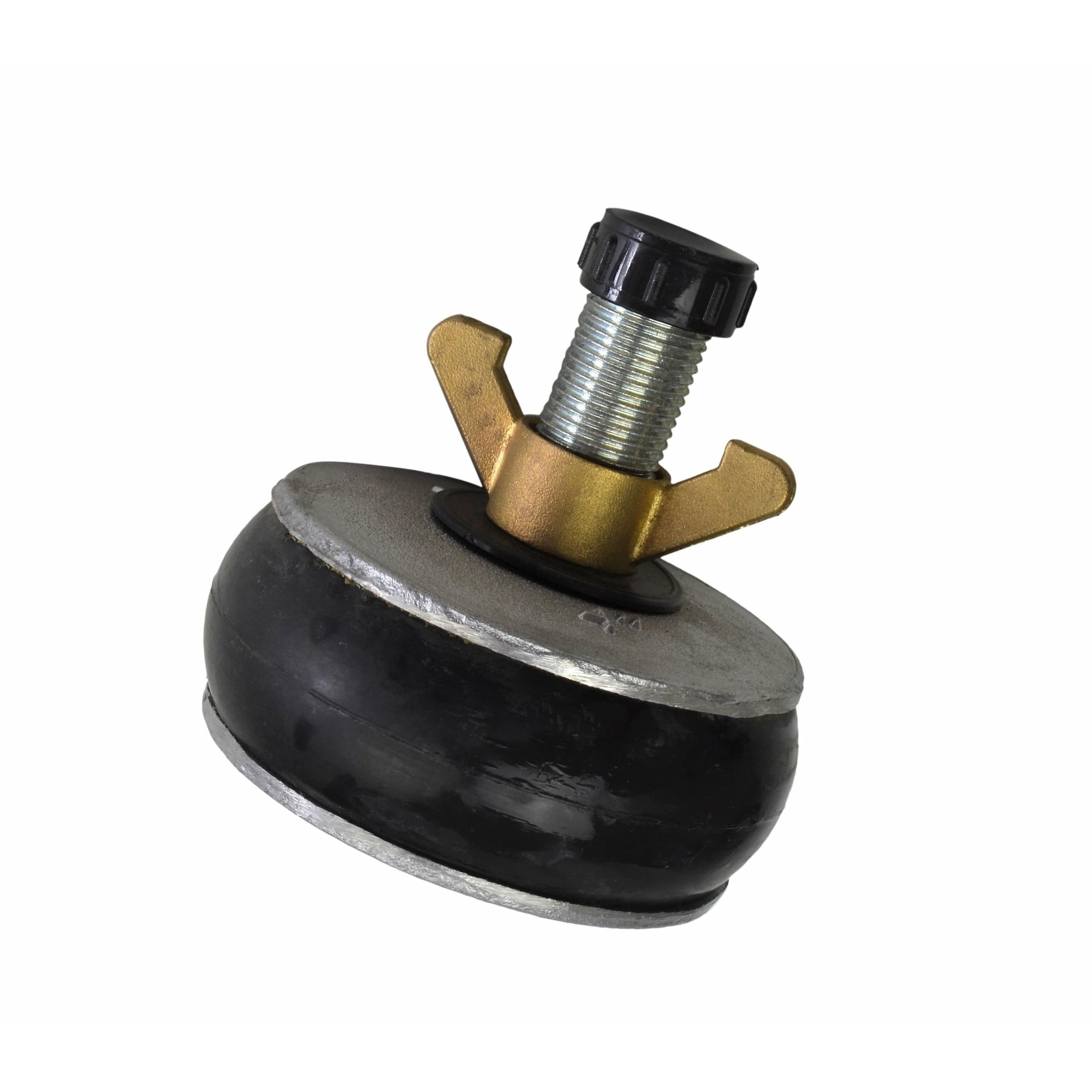

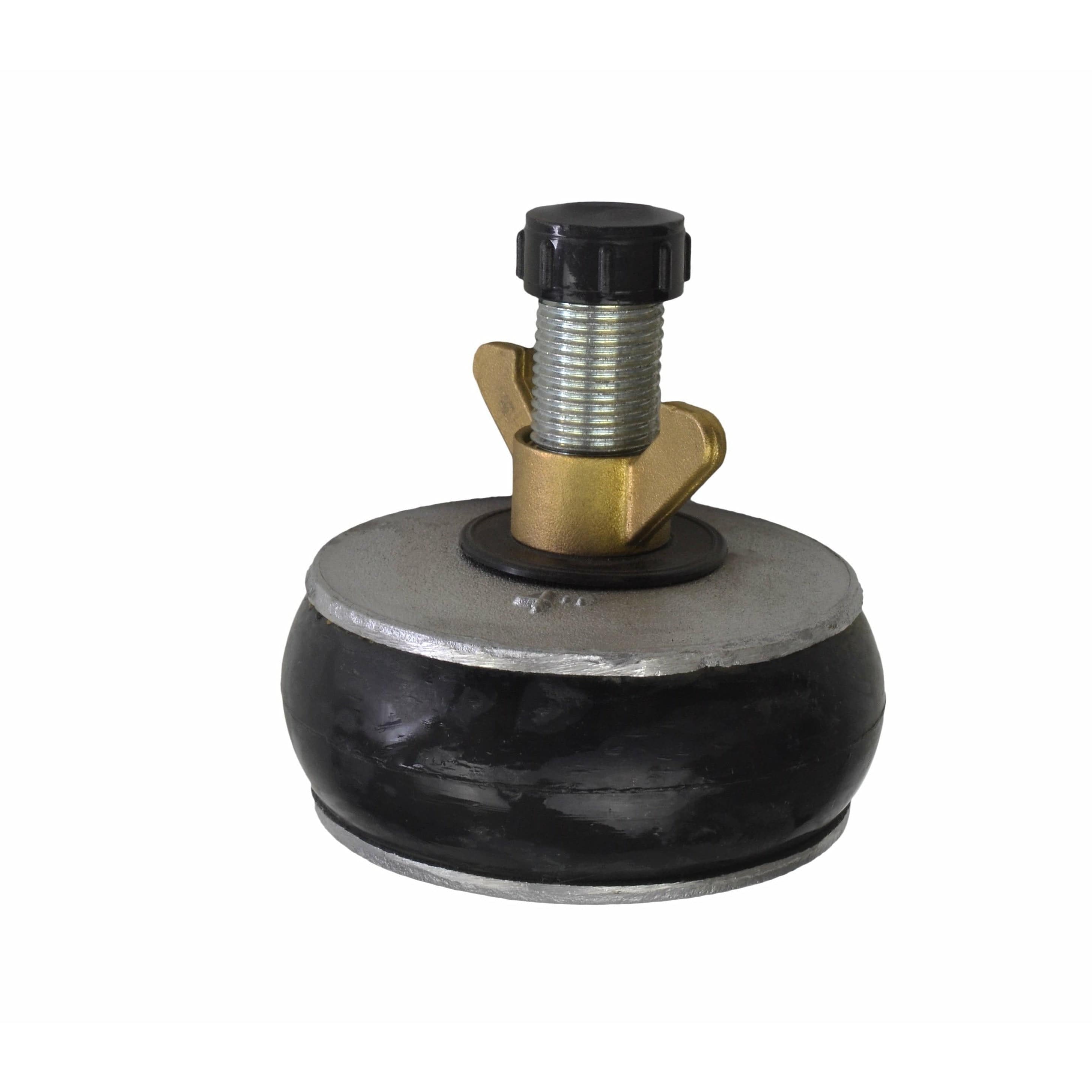

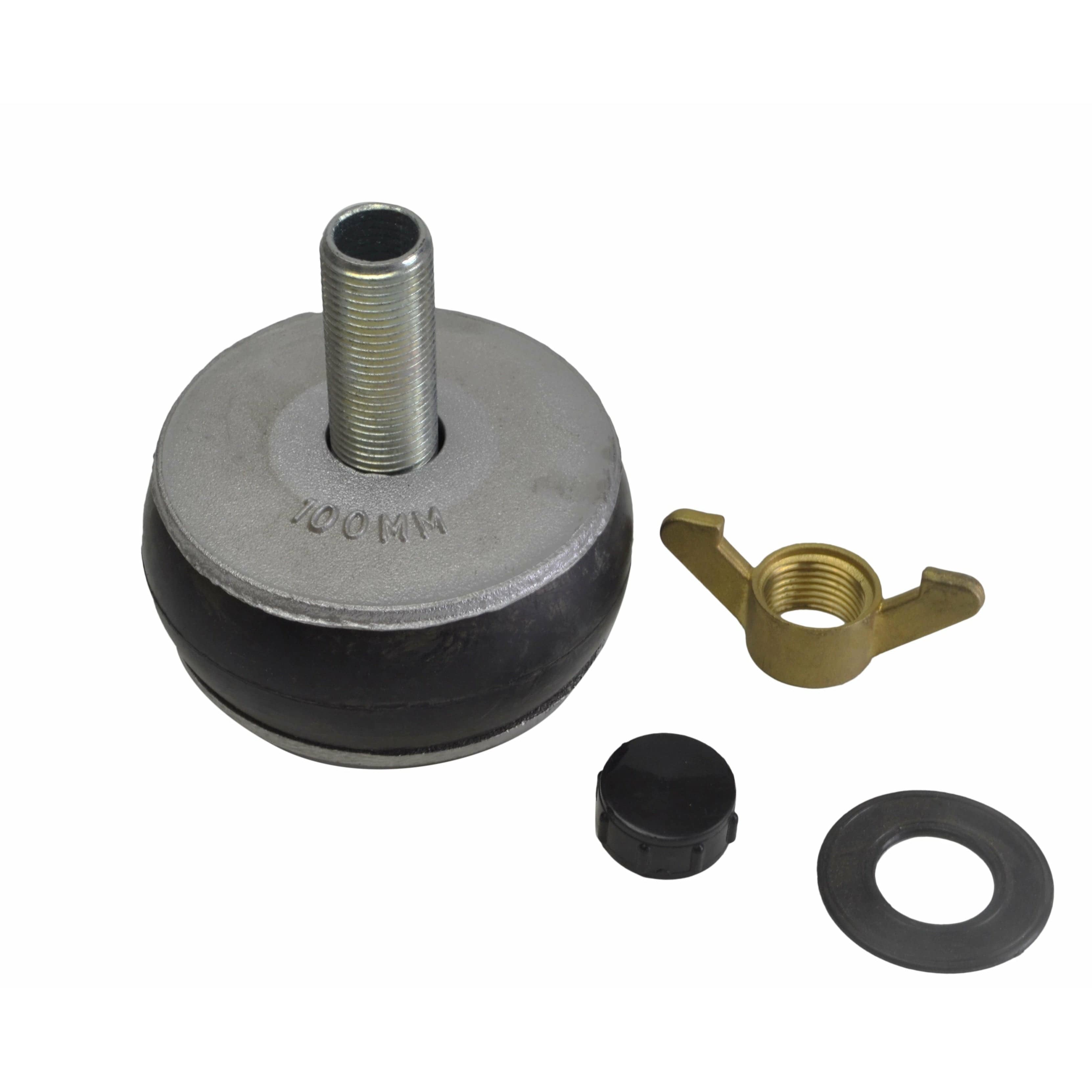

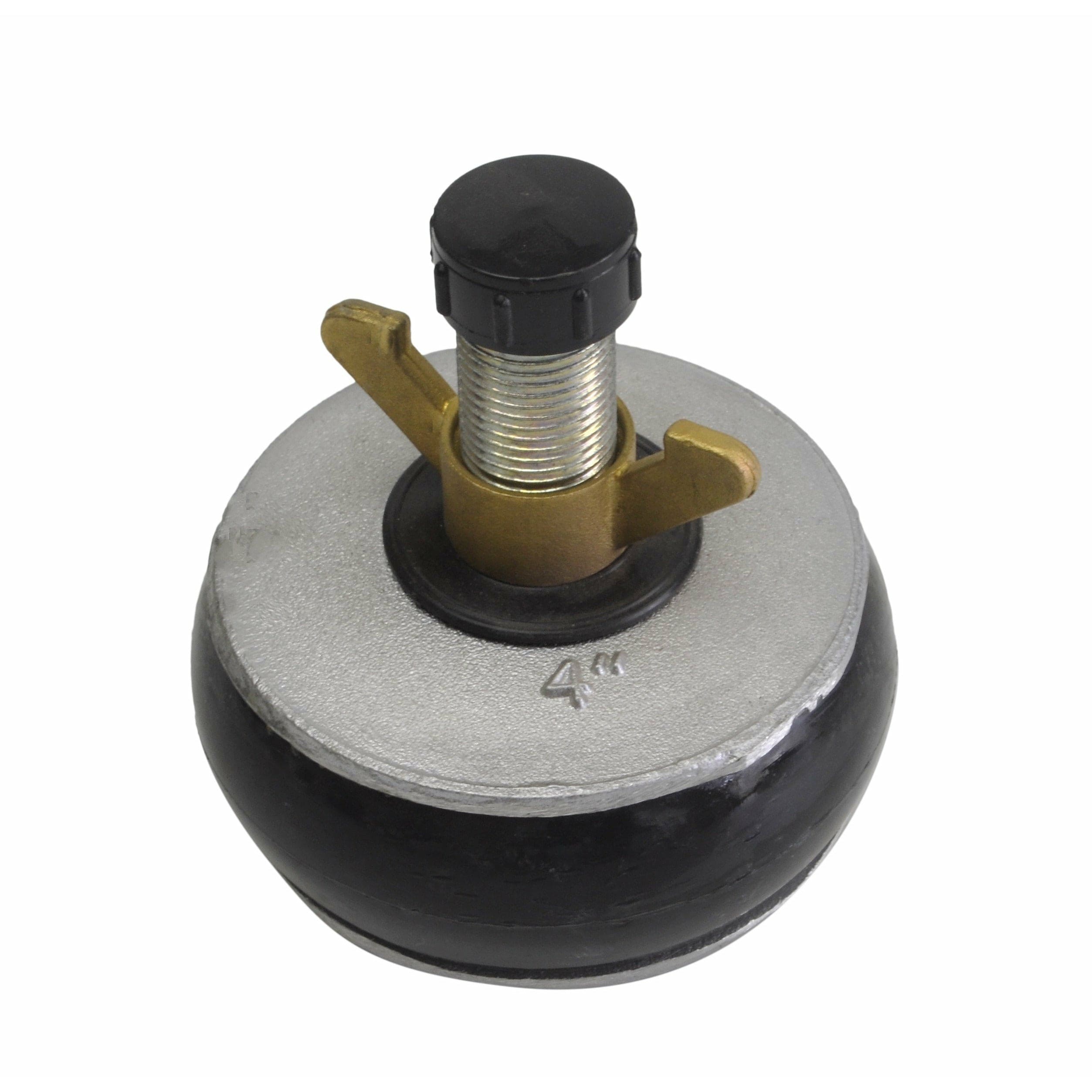

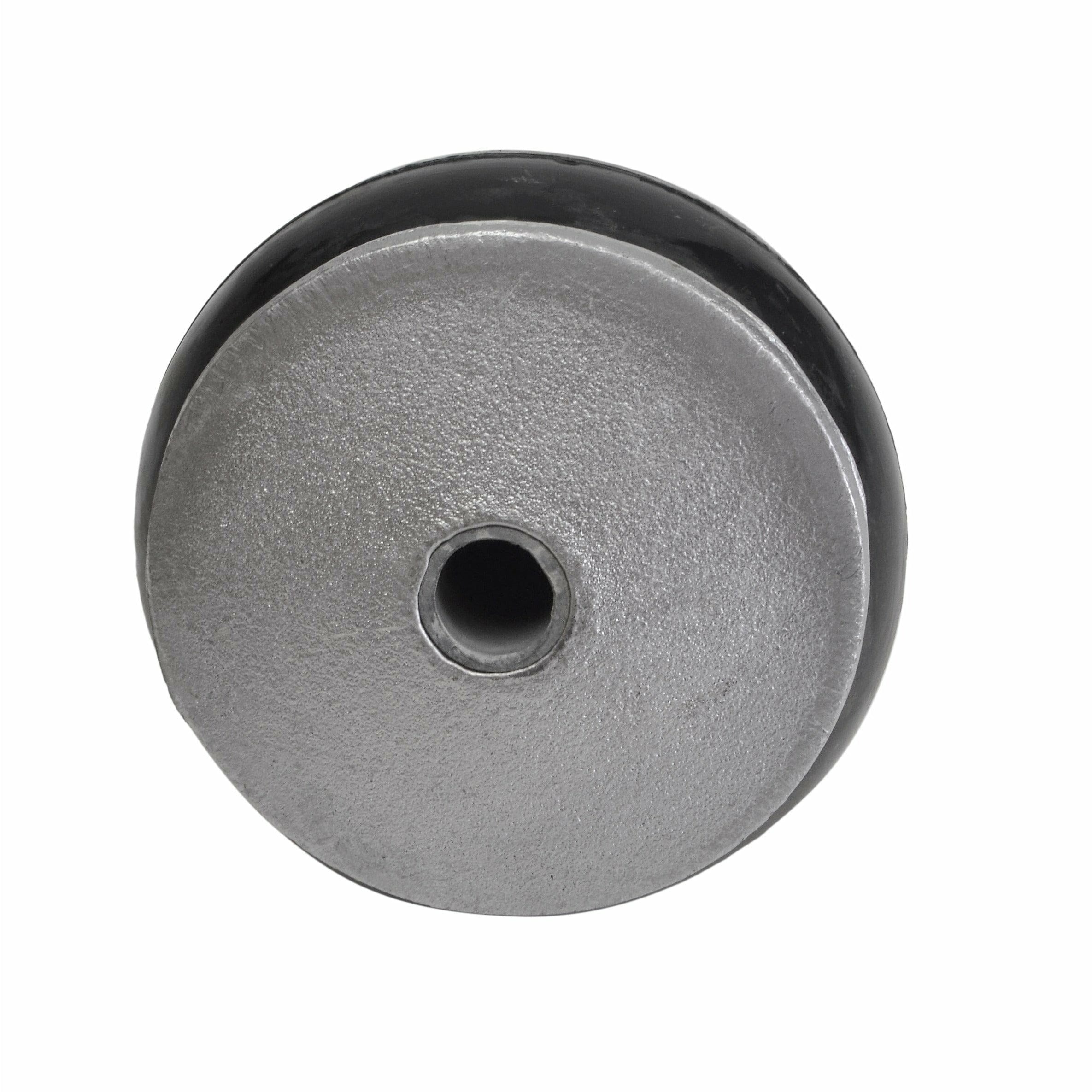

Aluminium Alloy pipe expanding plug with 13 mm bypass 94-110mm 031/203 MPA 100-13

sold in last hours
Vendor: Twin Eagle Imports
SKU: 410
$74.00
Order in The Next to get it by
Real Time 5 Visitor Right Now

Product Type:

Barcode: 880923102490

Aluminium Mechanical Test Plug 100 mm

Each Aluminium Alloy Drain Test Plug expands to suit a variety of dimensions within its range.Effective sealing is simple. Aluminium Test Plugs and Stoppers merely need inserting into a pipe or other opening and the brass wing nut to be turned clockwise. The rubber ring will expand and provide a positive seal.Tightening of the wing nuts are simple with the use of friction free washers.Sizes range from 1.5" to 36" (38 to 900 mm) and great for leak testing, isolation, sealing, stopping and even for the weld purging of pipework

Application

Effective sealing is simple. The MPA or Mechanical Plug Aluminium merely need inserting into a pipe or other opening and the wing nut to be turned clockwise. The rubber ring will expand and provide a positive seal. Tightening of the wing nuts is simple with the use of friction free washers. To relive back pressure build up behind the plug the cap at the end of the plug can be unscrewed

  • Start Range 94 mm
  • End range 110 mm
  • Purge port 13 mm
  • Item Code 203 MPA 100-13
