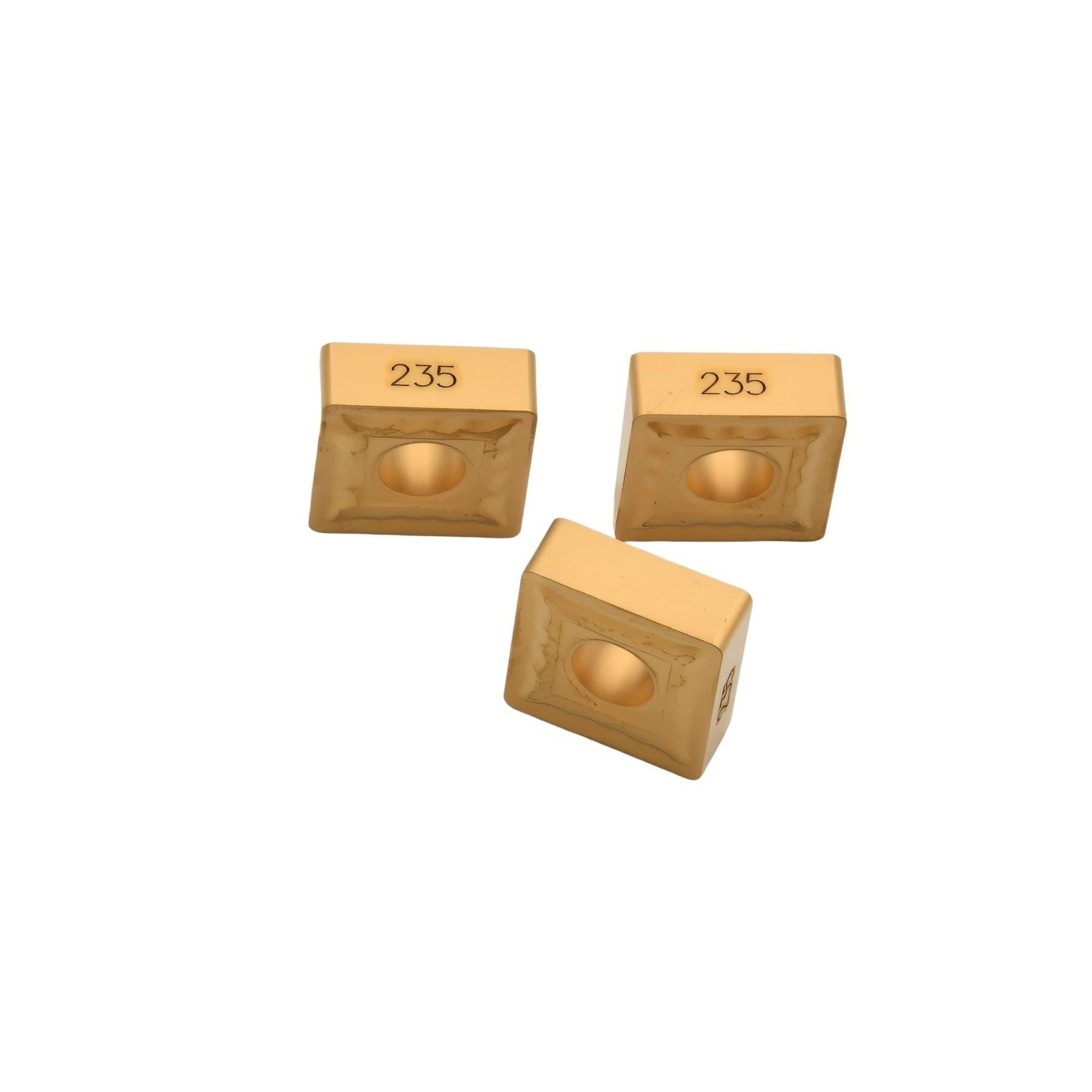

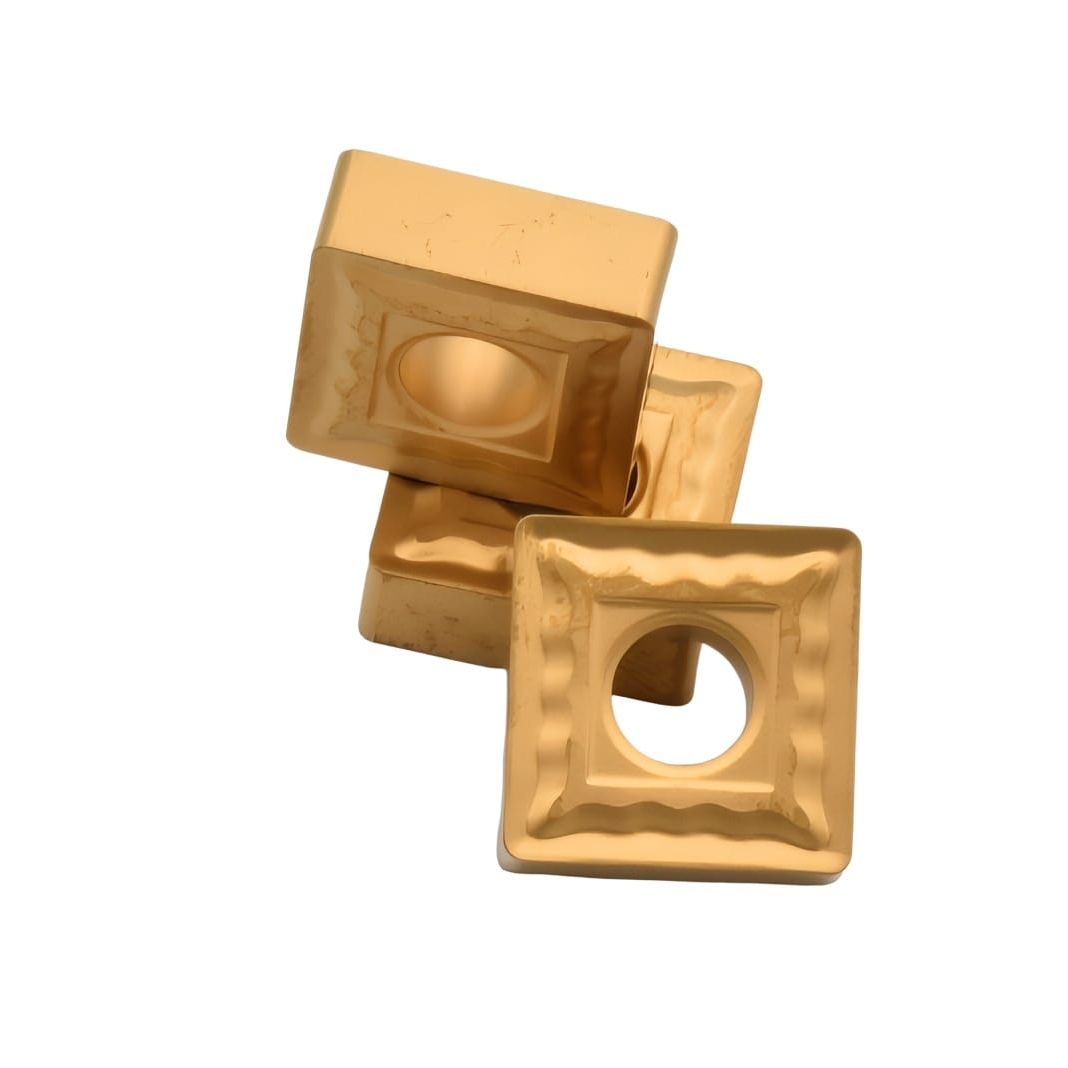

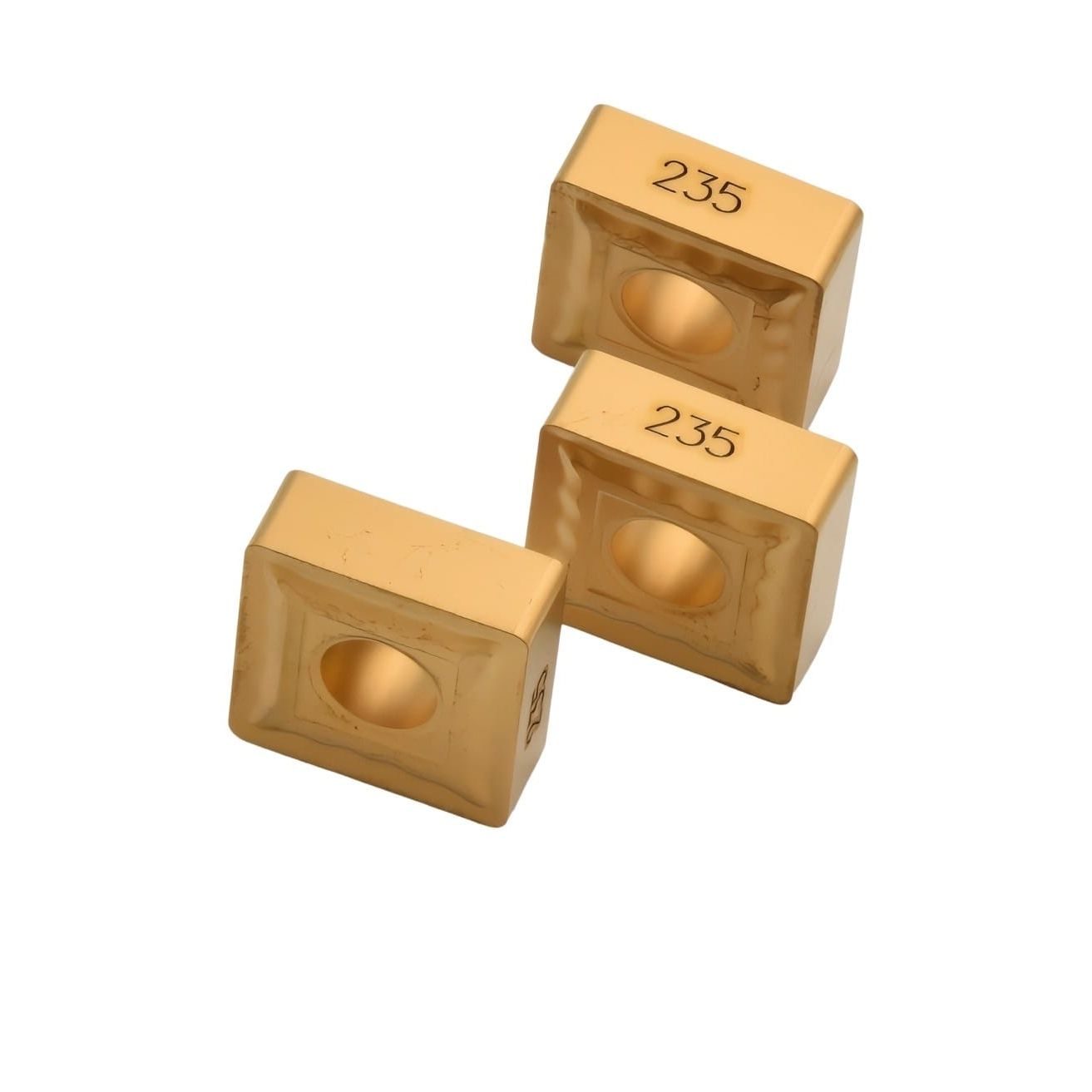

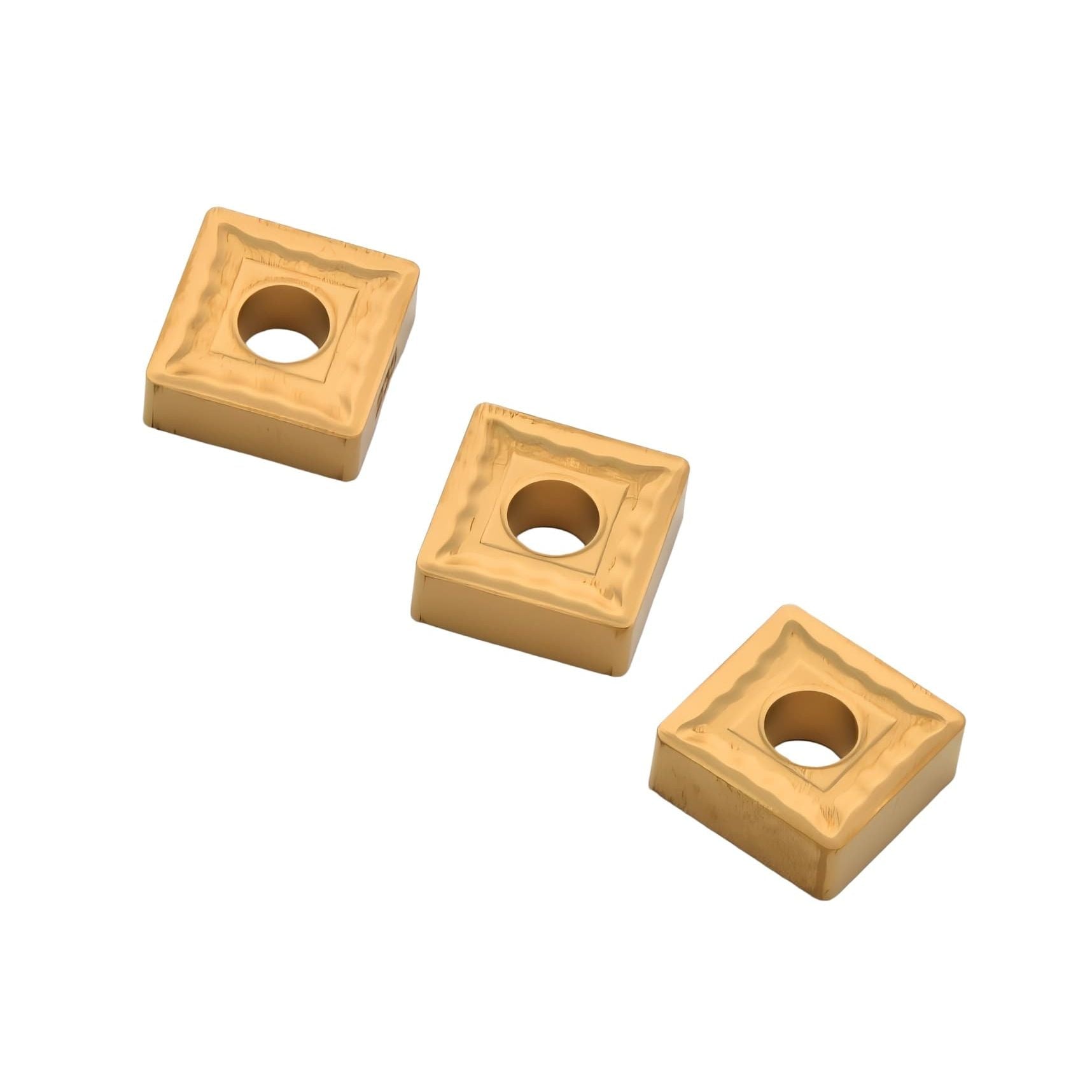

10pc Sandvik Coromant SNMG 12 04 08-QM 235 Turning Insert (Suitable for Steel & Stainless Steel, Medium Chipbreaker)

Sandvik SNMG 12 04 08-QM 235 Carbide Turning Inserts – Pack of 10 The Sandvik SNMG 12 04 08-QM 235 is a premium double-sided square carbide turning insert engineered for...
$242.00
$0.00
$242.00
(-0%)
Vendor: SANDVIK
SKU: SNMG 12 04 08-QM 235-10
Availability: In Stock
Subtotal: $242.00
SANDVIK INSERTS 10pc Sandvik Coromant SNMG 12 04 08-QM 235 Turning Insert (Suitable for Steel & Stainless Steel, Medium Chipbreaker)

10pc Sandvik Coromant SNMG 12 04 08-QM 235 Turning Insert (Suitable for Steel & Stainless Steel, Medium Chipbreaker)

$0.00 $242.00

10pc Sandvik Coromant SNMG 12 04 08-QM 235 Turning Insert (Suitable for Steel & Stainless Steel, Medium Chipbreaker)

$0.00 $242.00

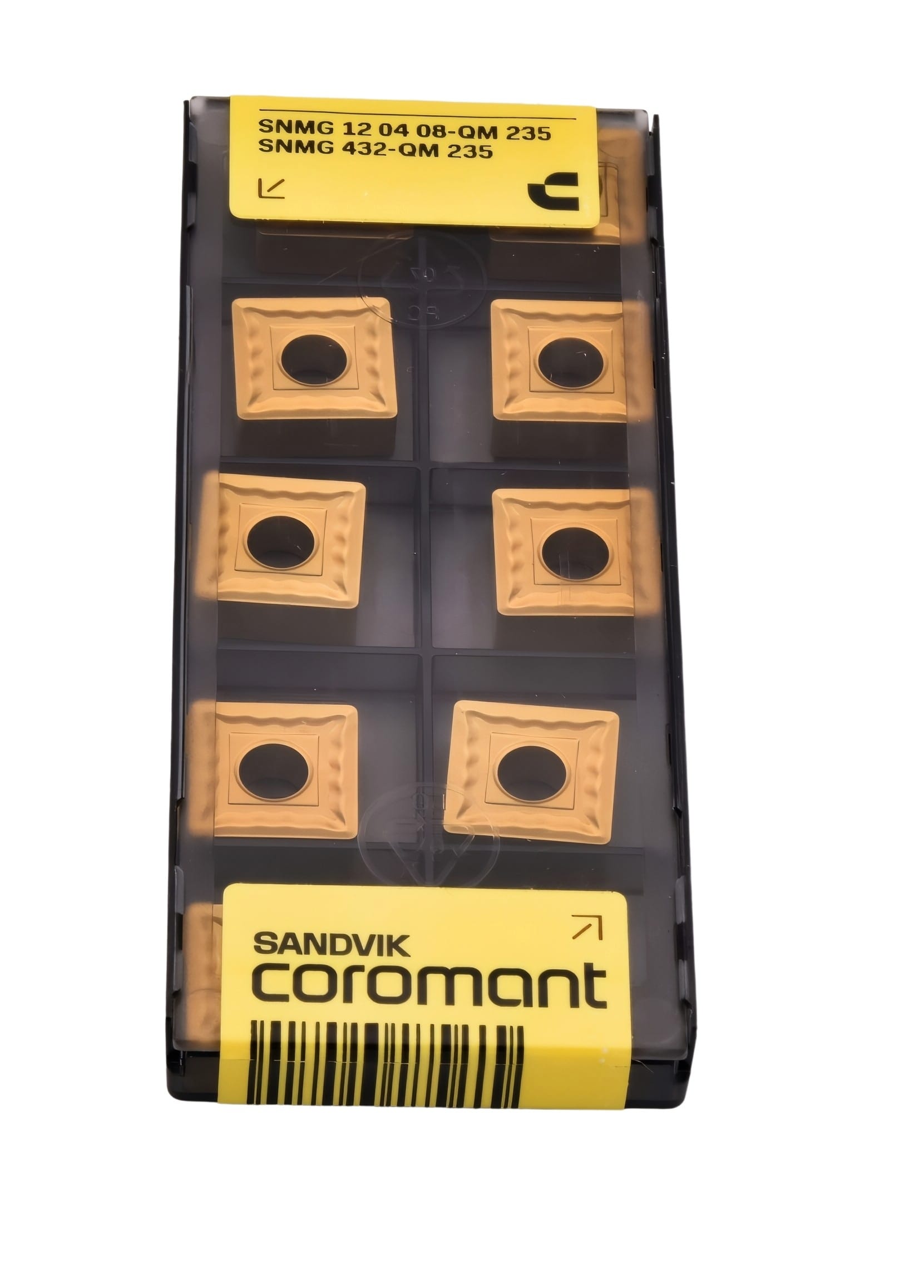

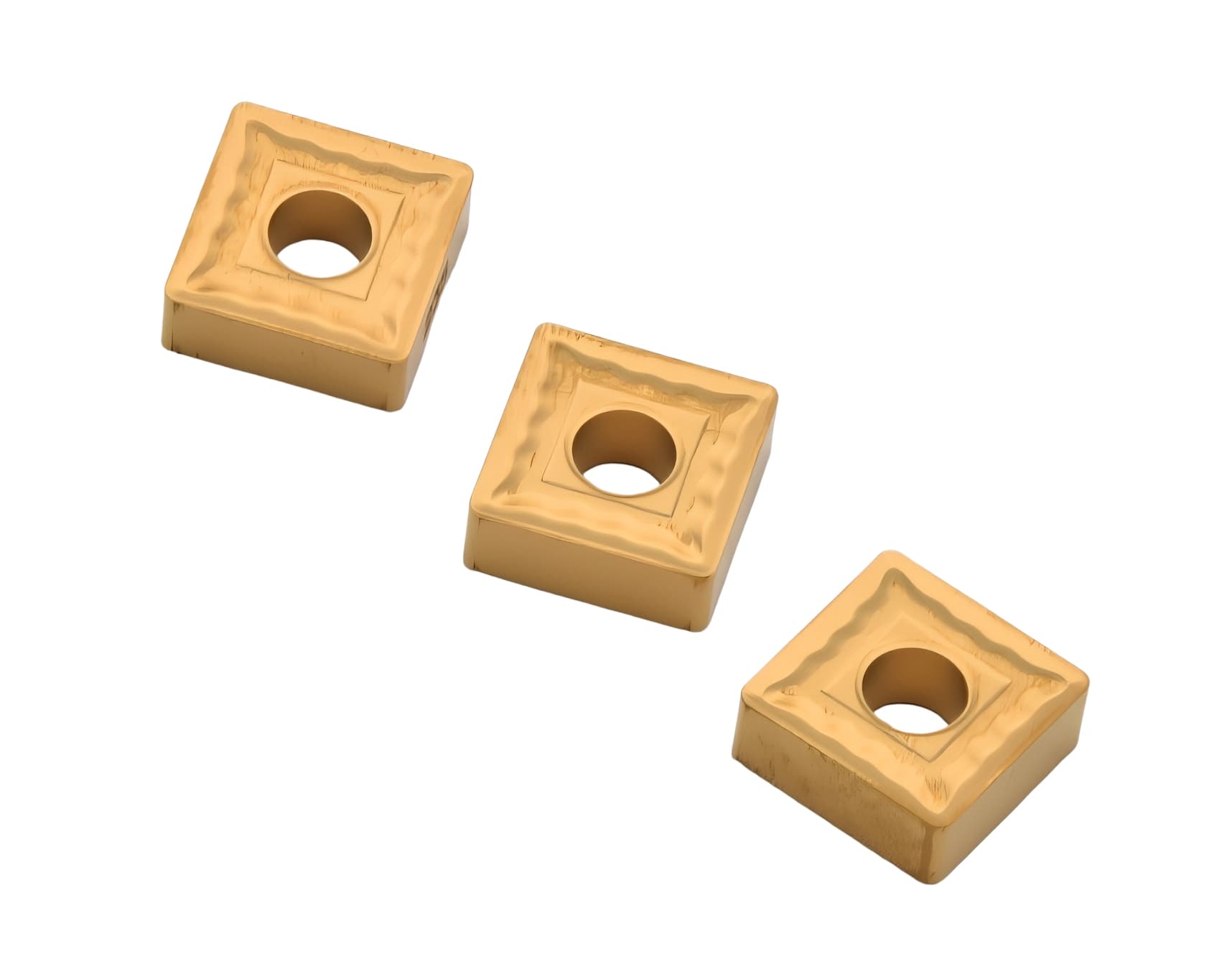

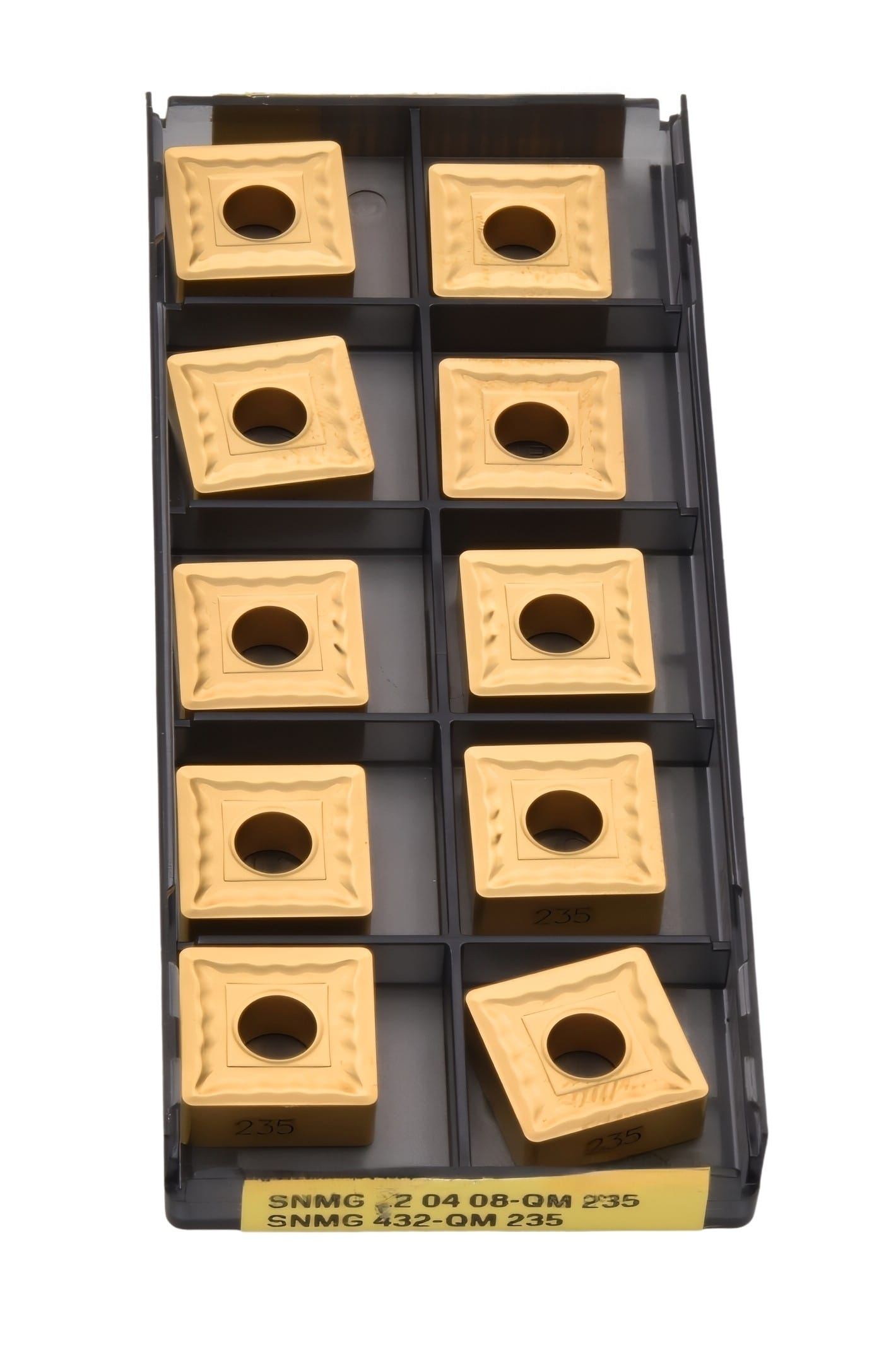

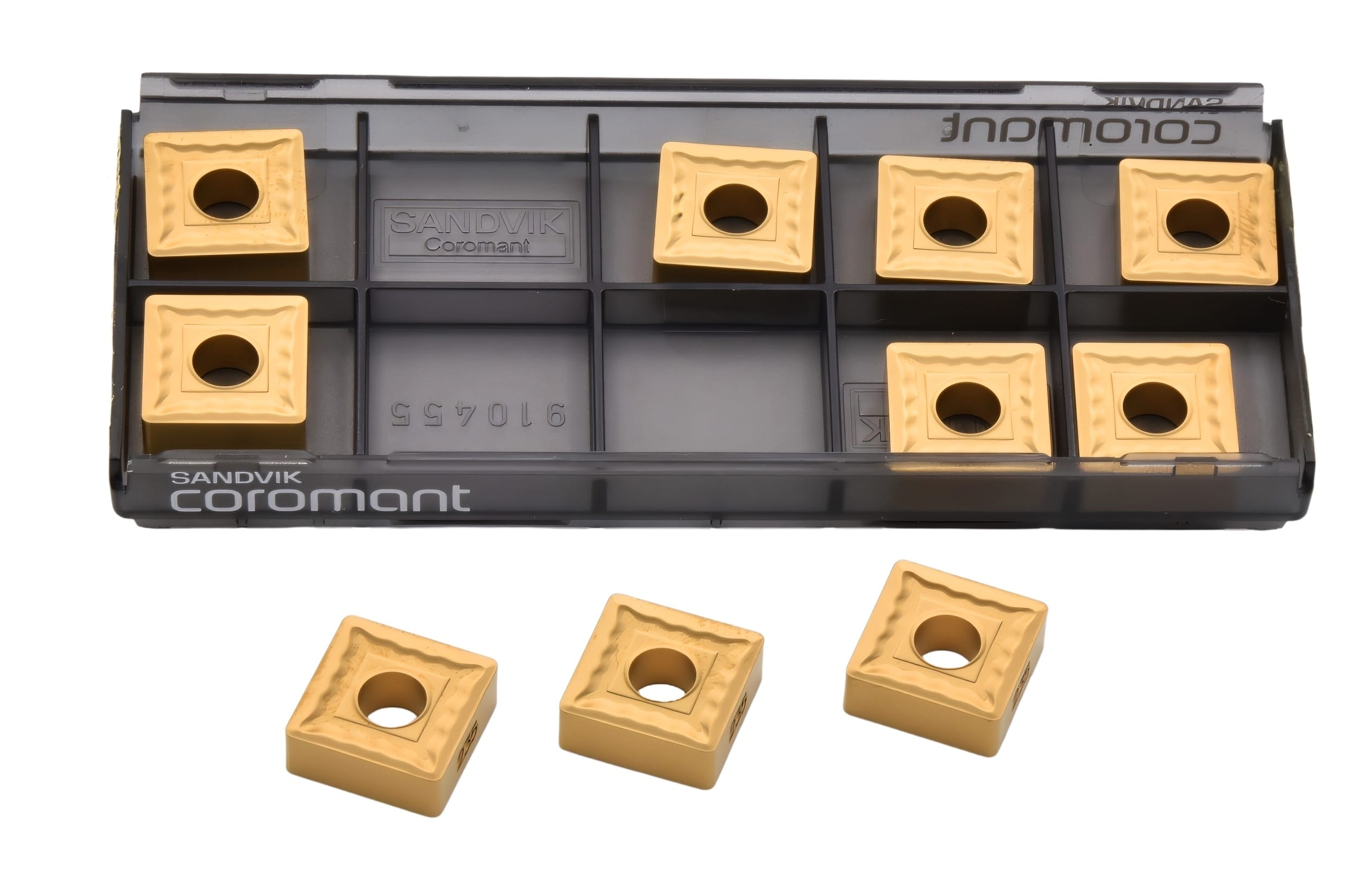

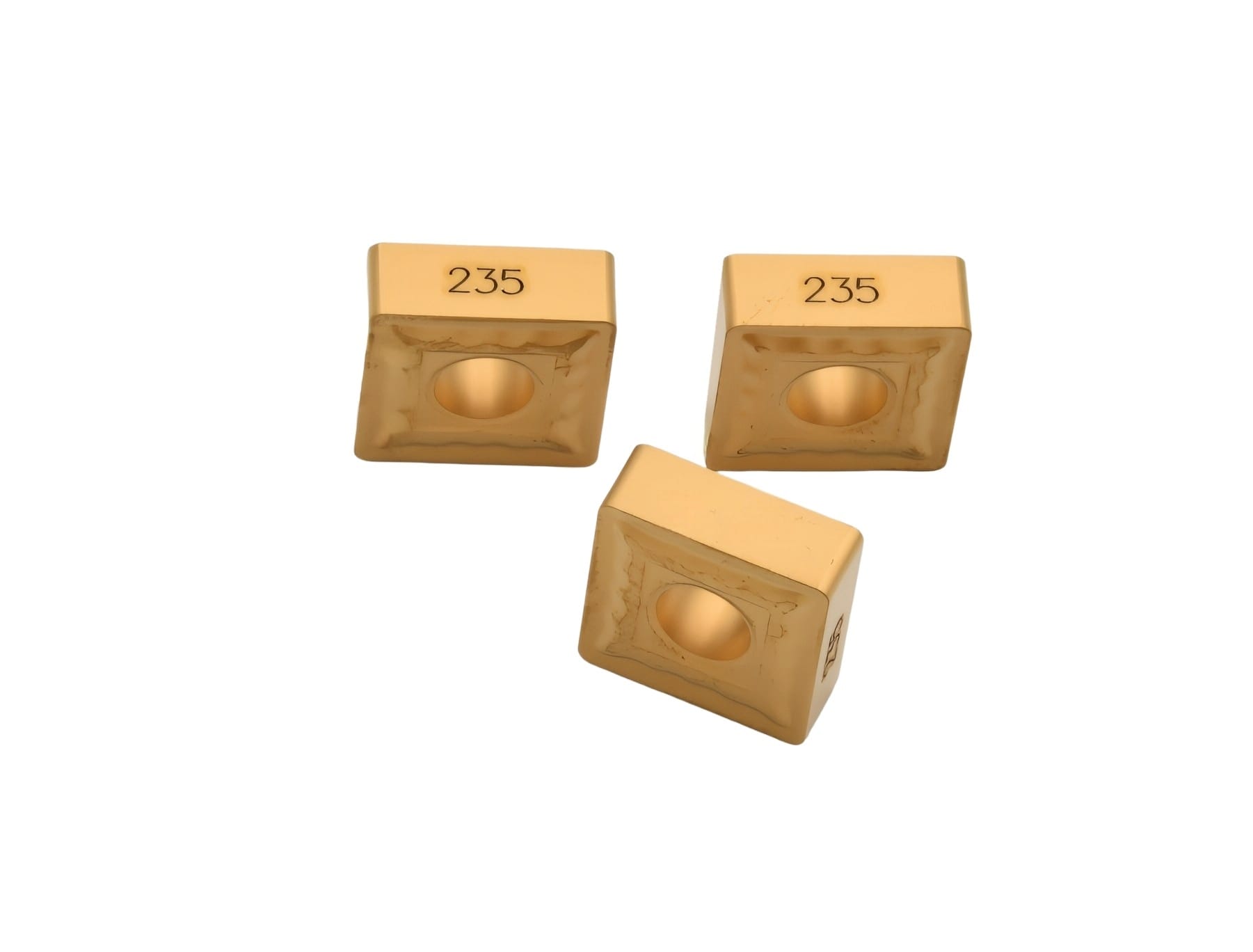

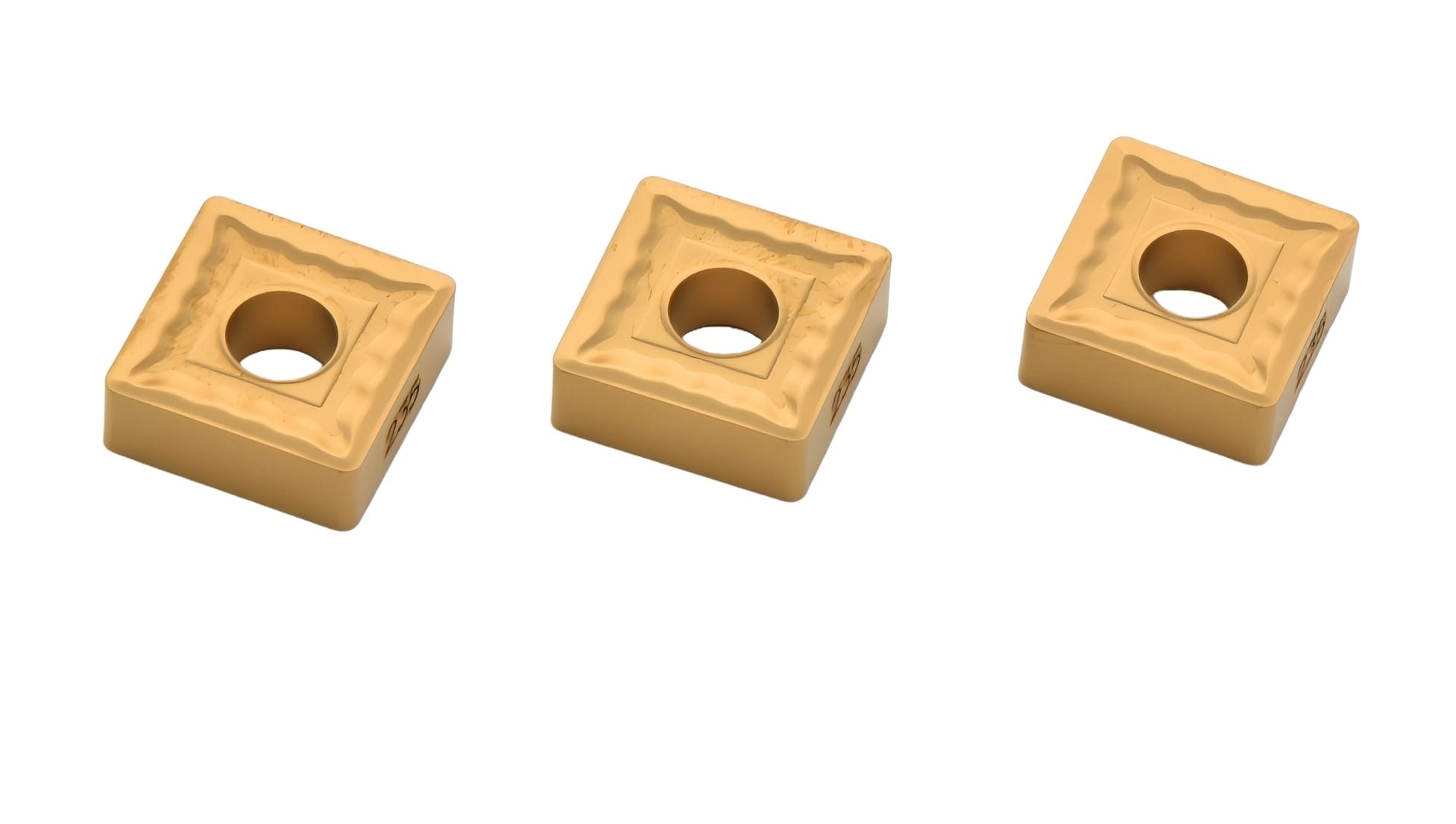

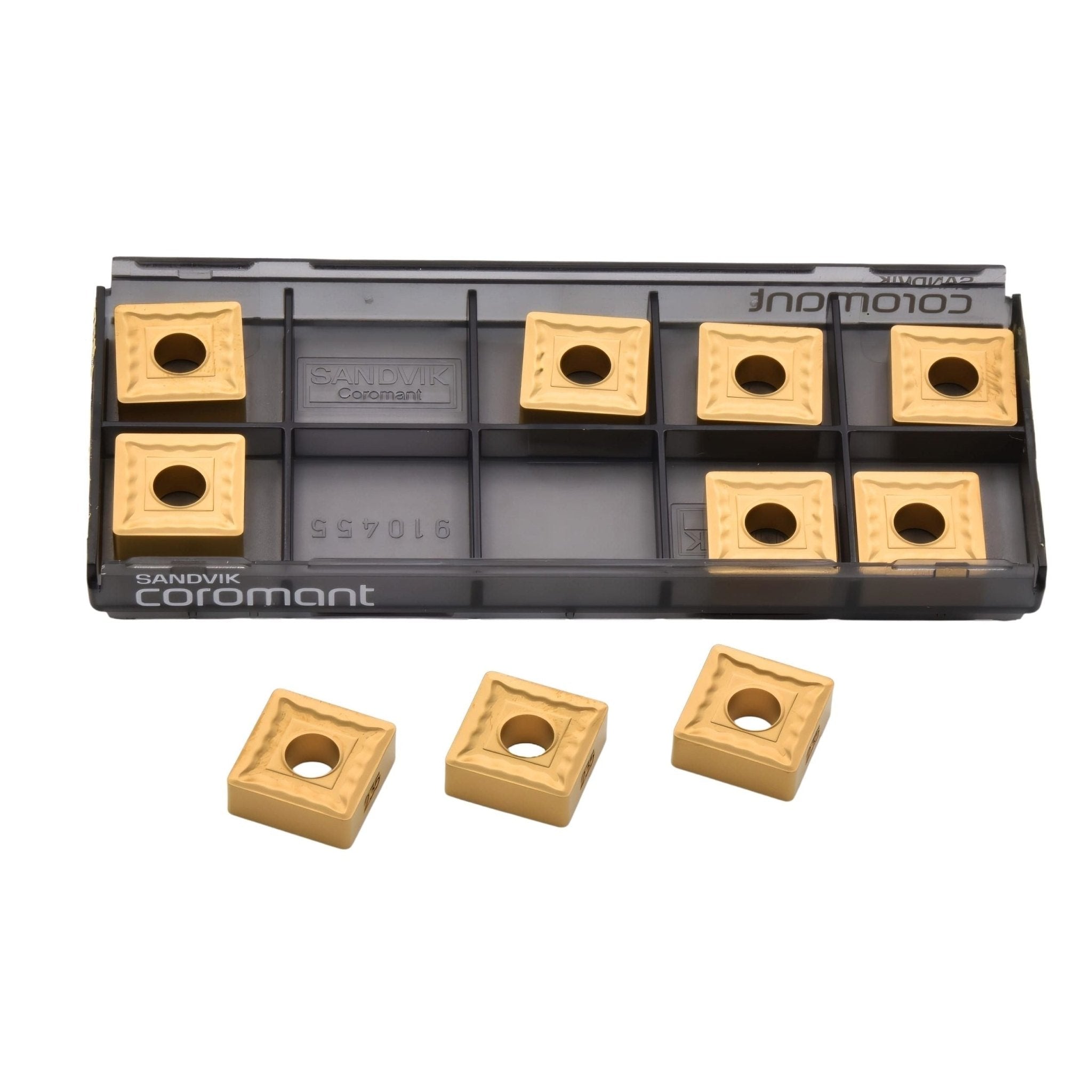

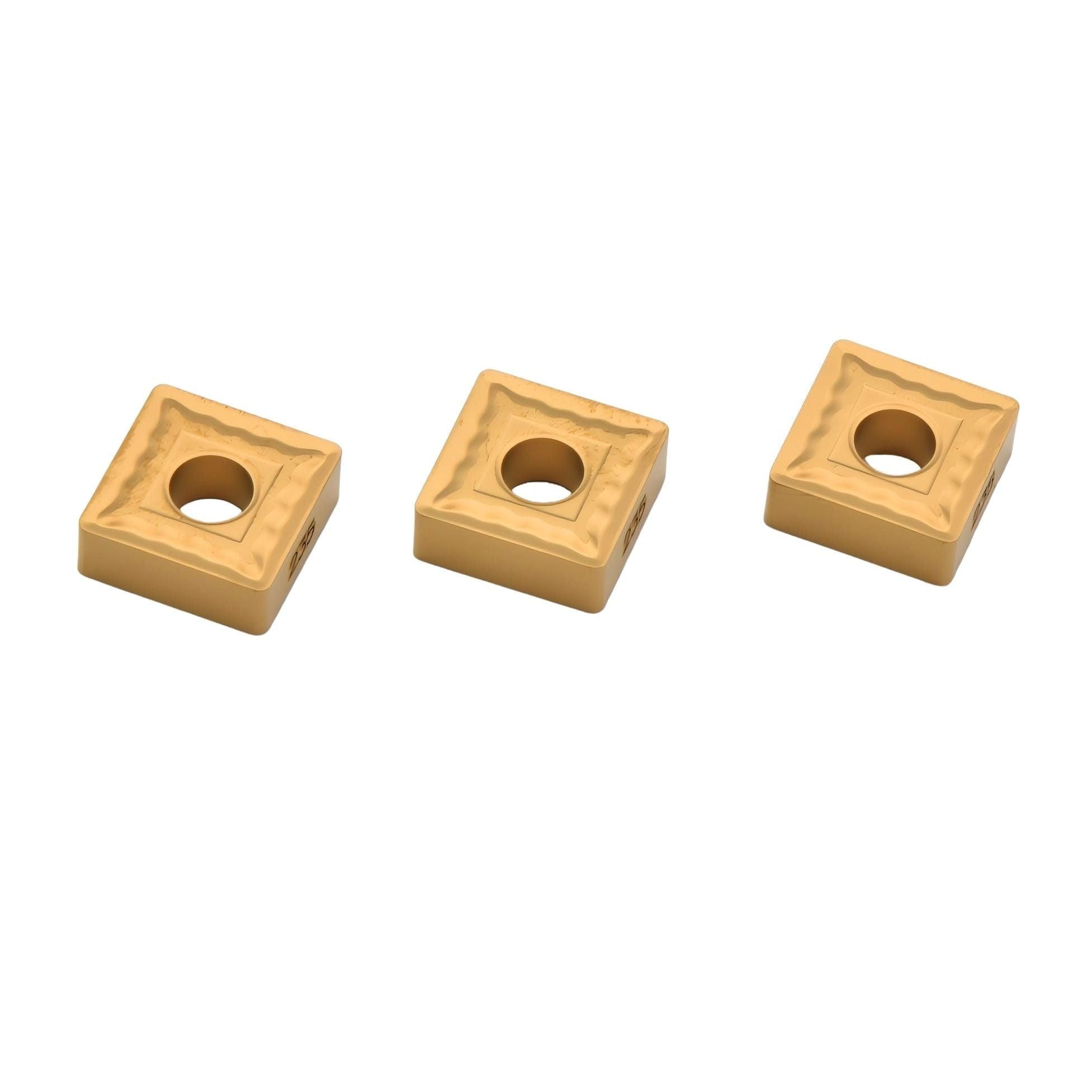

Sandvik SNMG 12 04 08-QM 235 Carbide Turning Inserts – Pack of 10

The Sandvik SNMG 12 04 08-QM 235 is a premium double-sided square carbide turning insert engineered for medium machining of steel and stainless steel. Manufactured using Sandvik's tough 235 carbide grade and durable CVD TiCN + TiN coating, these inserts deliver excellent wear resistance, high edge security, and consistent tool life in demanding production environments.

Featuring the versatile QM chip breaker, the SNMG 12 04 08-QM provides reliable chip control and excellent surface finish across a wide range of cutting conditions. The negative square geometry offers eight usable cutting edges, maximizing insert economy while maintaining high machining productivity on CNC lathes and conventional turning centres.

Suitable for machining ISO P (Steel) and ISO M (Stainless Steel) materials, these genuine Sandvik inserts are supplied in a convenient pack of 10, making them an excellent choice for production machining, general engineering, and heavy-duty turning applications.

Features & Benefits

  • Genuine Sandvik Coromant carbide turning inserts.
  • Insert designation: SNMG 12 04 08-QM.
  • Premium 235 carbide grade.
  • CVD TiCN + TiN coating for outstanding wear resistance and tool life.
  • QM chip breaker for medium machining applications.
  • Negative square insert with eight usable cutting edges.
  • Excellent chip control and consistent surface finish.
  • Suitable for internal and external turning operations.
  • Optimised for ISO P (Steel) and ISO M (Stainless Steel).

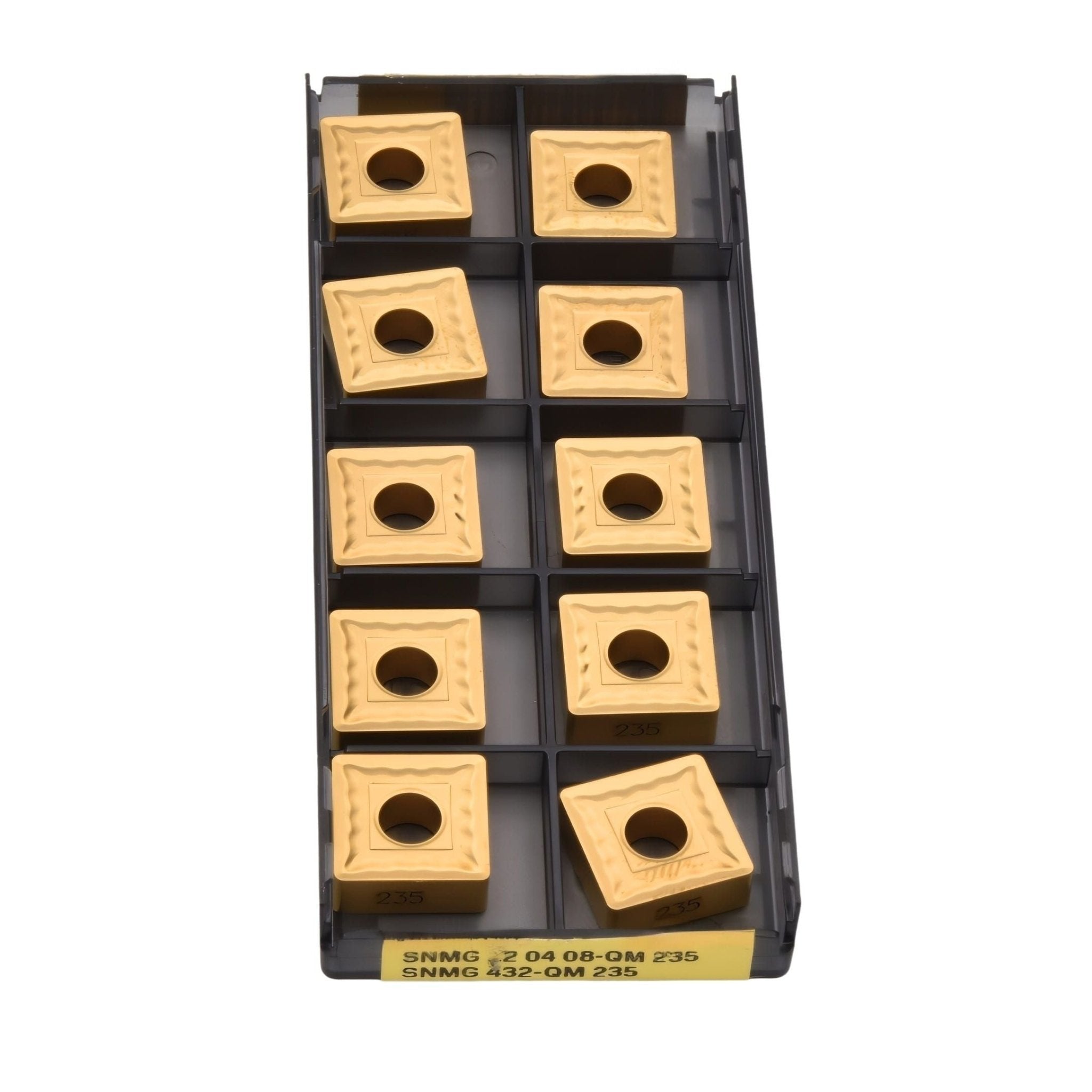

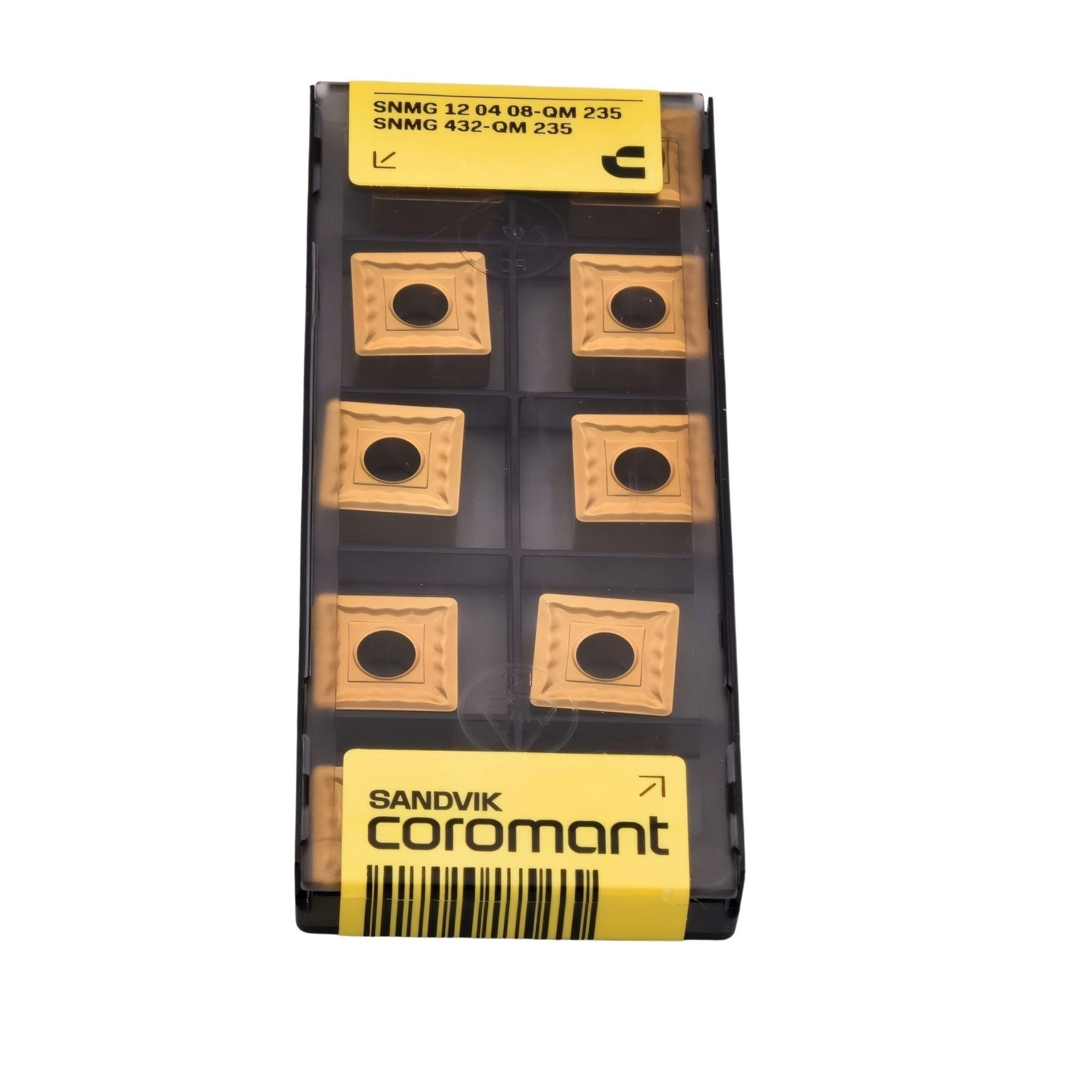

  • Supplied in a factory pack of 10 inserts.

Specifications

  • Brand: Sandvik Coromant
  • Insert Designation: SNMG 12 04 08-QM
  • Grade: 235
  • Quantity: Pack of 10
  • Insert Shape: Square (SNMG)
  • Chip Breaker: QM
  • Coating: CVD TiCN + TiN
  • Substrate: HC Carbide
  • Inscribed Circle (IC): 12.7 mm
  • Cutting Edge Length (LE): 11.9 mm
  • Corner Radius (RE): 0.7938 mm (0.8 mm)
  • Insert Thickness (S): 4.7625 mm
  • Fixing Hole Diameter: 5.156 mm
  • Clearance Angle: 0°
  • Cutting Edges: 8
  • Insert Seat Size: 12 (1/2")
  • Hand: Neutral
  • Suitable Materials: ISO P (Steel), ISO M (Stainless Steel)
