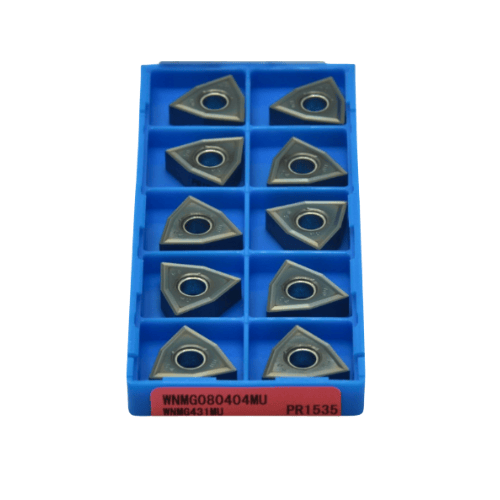

Kyocera WNMG080404MU PR1535 – Turning Insert (10 pcs Medium to Finishing, MU Chipbreaker)

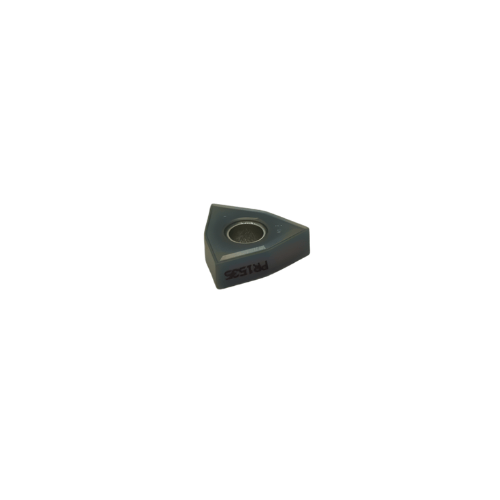

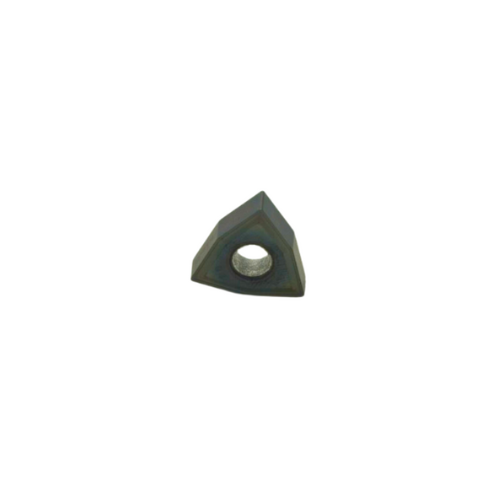

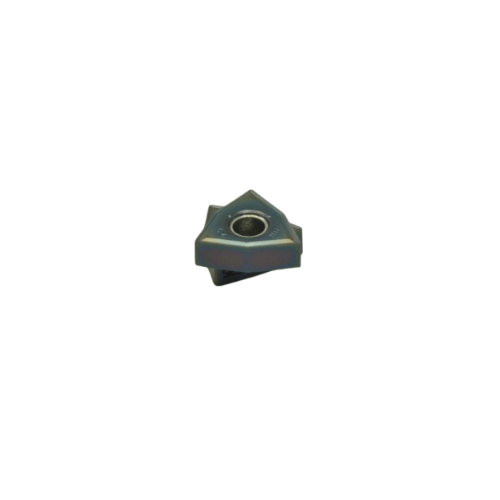

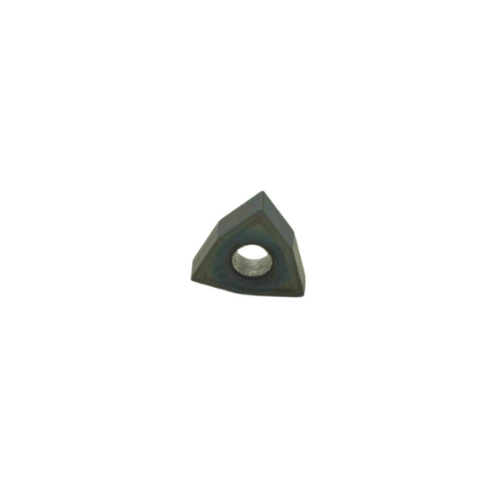

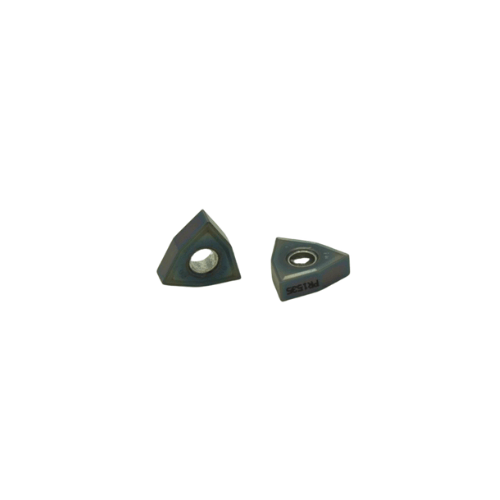

The Kyocera WNMG080404MU PR1535 is a high-precision negative-type trigon insert designed for medium to finishing operations on steels, stainless steels, and cast irons. It features Kyocera’s advanced MU chipbreaker, offering superior cutting stability, reduced cutting force, and excellent chip evacuation even at low feed rates. Combined with the PR1535 MEGACOAT NANO PLUS CVD-coated carbide grade, this insert delivers outstanding wear resistance and thermal stability for consistent surface finish and extended tool life.

Key Features & Benefits

  • PR1535 Grade (MEGACOAT NANO PLUS): CVD-coated carbide optimized for toughness and wear resistance in steel and stainless applications.
  • MU Chipbreaker Geometry: Large rake angle reduces cutting force and prevents burring or notching during finishing cuts.
  • Excellent Chip Evacuation: Smooth chip flow and reduced built-up edge for stable operation.
  • Wide Application Range: Performs effectively in both continuous and light interrupted cuts.
  • Surface Finish Quality: Achieves superior dimensional accuracy with controlled chip curling.

Technical Specifications

  • Designation / Order Code: WNMG 080404 MU PR1535
  • Insert Shape: 80° Trigon (Negative Type)
  • Insert Type: Double-Sided Turning Insert
  • Grade: PR1535 – MEGACOAT NANO PLUS (CVD Carbide)
  • Chipbreaker: MU – Medium to Finishing Range
  • Inscribed Circle (IC): 12.7 mm
  • Thickness (S): 4.76 mm
  • Hole Diameter (D1): 5.16 mm
  • Corner Radius (RE): 0.4 mm

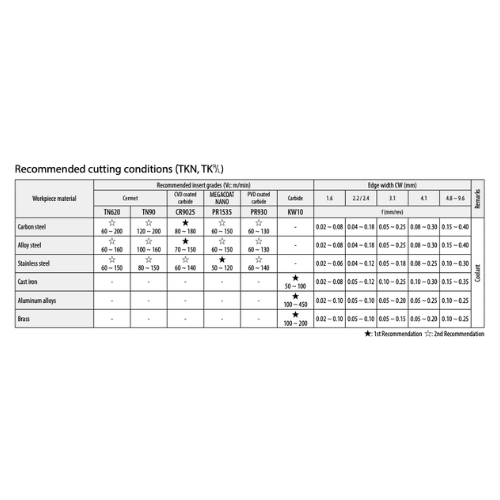

  • Cutting Range (ap): 0.2 – 1.0 mm
  • Feed Rate (f): 0.1 – 0.4 mm/rev
  • Tolerance (Class M): ±0.025 mm thickness / ±0.13 mm corner height

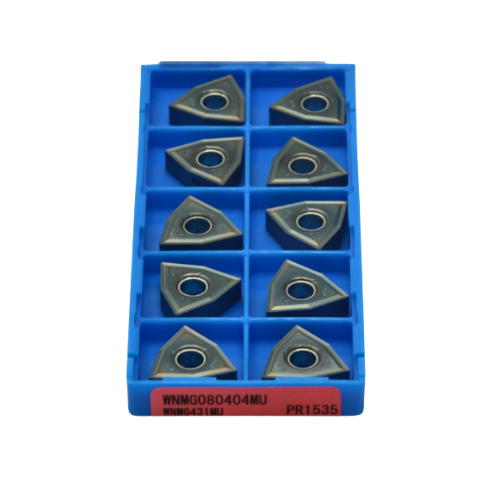

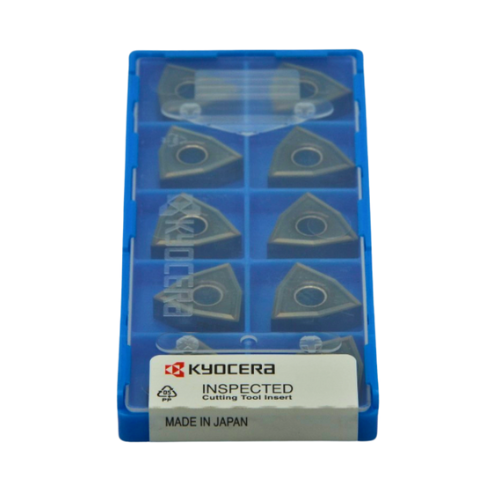

  • Pack Quantity: 10 pcs

About Kyocera PR1535:
Kyocera’s PR1535 MEGACOAT NANO PLUS CVD-coating provides superior adhesion strength and resistance to crater wear, making it ideal for steels and stainless steels. It ensures long, stable performance under both continuous and light interrupted conditions, maintaining consistent surface finish and dimensional accuracy in demanding machining environments.
