10pc Kyocera GMM5020-080MW TN90 – External Grooving Insert (M-Class, Precision Type)

Kyocera GMM5020-080MW TN90 – External Grooving Insert (10 pcs M-Class, Precision Type) The Kyocera GMM5020-080MW TN90 is a precision-engineered external grooving insert designed for stable chip control and high-quality groove...
$395.00
$0.00
$395.00
(-0%)
SKU: GMM5020080MWTN90-10
Availability: In Stock
Subtotal: $395.00

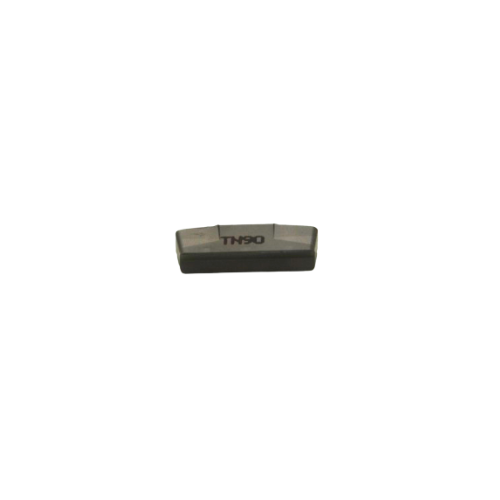

Kyocera GMM5020-080MW TN90 – External Grooving Insert (M-Class, Precision Type) - front view

10pc Kyocera GMM5020-080MW TN90 – External Grooving Insert (M-Class, Precision Type)

$0.00 $395.00

10pc Kyocera GMM5020-080MW TN90 – External Grooving Insert (M-Class, Precision Type)

$0.00 $395.00

Kyocera GMM5020-080MW TN90 – External Grooving Insert (10 pcs M-Class, Precision Type)

The Kyocera GMM5020-080MW TN90 is a precision-engineered external grooving insert designed for stable chip control and high-quality groove finishes. Part of Kyocera’s TN90 grooving system, this insert provides excellent rigidity and secure clamping for consistent groove geometry and surface accuracy. Optimized for use with G-series toolholders, it delivers outstanding performance in a wide range of materials including steels, stainless steels, and cast irons.

Key Features & Benefits

  • TN90 System: High-precision grooving system offering stable machining and excellent chip evacuation.
  • Consistent Performance: Rigid design prevents insert deflection and ensures precise groove profiles.
  • Durable Construction: Optimized carbide substrate with wear-resistant coating for extended tool life.
  • Excellent Chip Control: Engineered chip groove reduces chip tangling and promotes smooth evacuation.
  • Versatile Use: Ideal for external grooving and light cut-off operations in steels and stainless steels.

Technical Specifications

  • Designation / Order Code: GMM5020-080MW TN90
  • Insert Type: External Grooving Insert (M-Class)
  • Cutting Width (CW): 5 mm
  • Thickness (S): 4.3 mm
  • Cutting Depth (CDX): 20 mm (Max)
  • Overall Length (INSL): 30 mm (approx.)
  • Corner Radius (RE): 0.8 mm
  • Tolerance (CW): ±0.05 mm
  • Applicable Toolholders: KGDF, KGDR, GDFM, GDFMS, and GDFG series
  • Applicable Materials: Steel (P), Stainless Steel (M), Cast Iron (K)

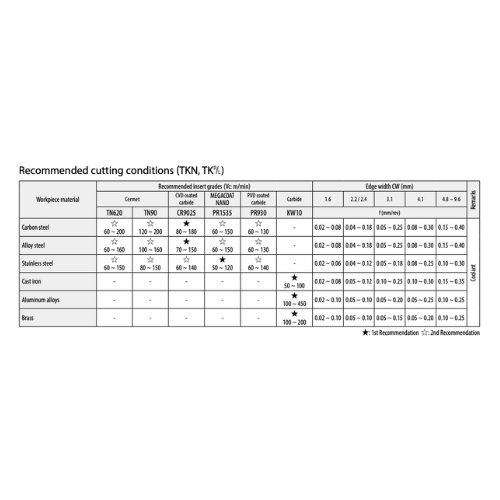

  • Recommended Cutting Speed (Vc): 100 – 250 m/min
  • Feed Rate (f): 0.05 – 0.20 mm/rev
  • Coolant: Wet or Dry (Wet recommended)

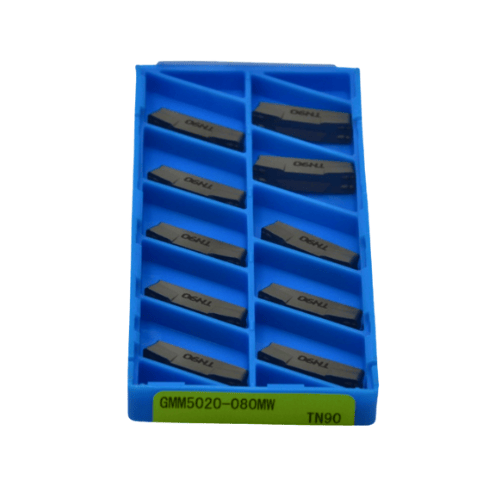

  • Pack Quantity: 10 pcs

About Kyocera TN90 Series:
The TN90 grooving system combines advanced insert geometry with Kyocera’s precise clamping mechanism to ensure exceptional stability during grooving and parting operations. It supports both external and face grooving with consistent performance and high repeatability, delivering superior surface quality and tool life in various machining conditions.
