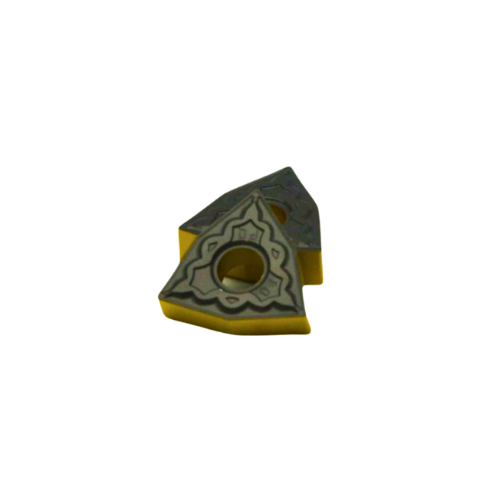

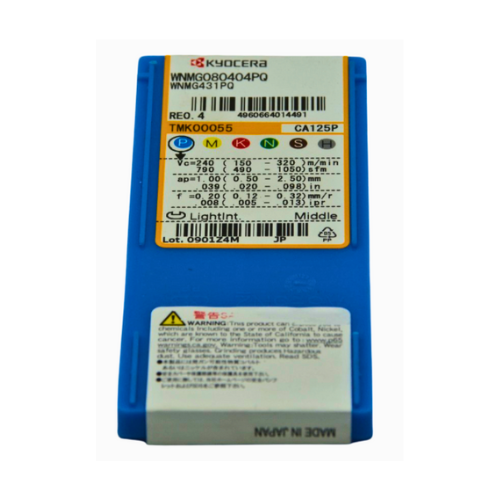

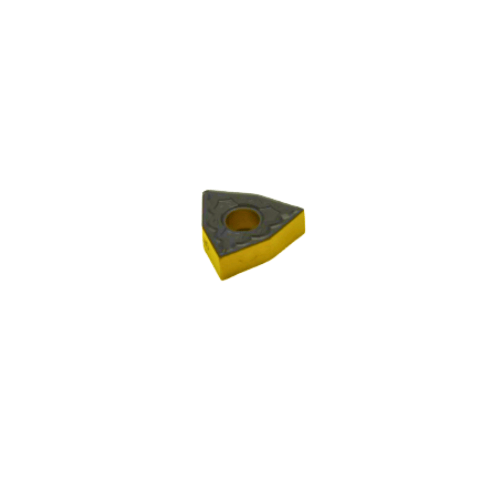

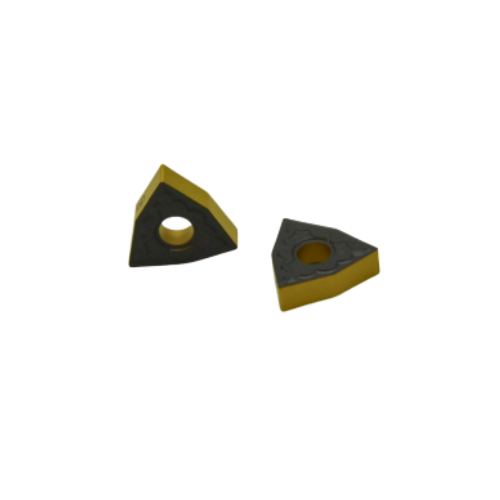

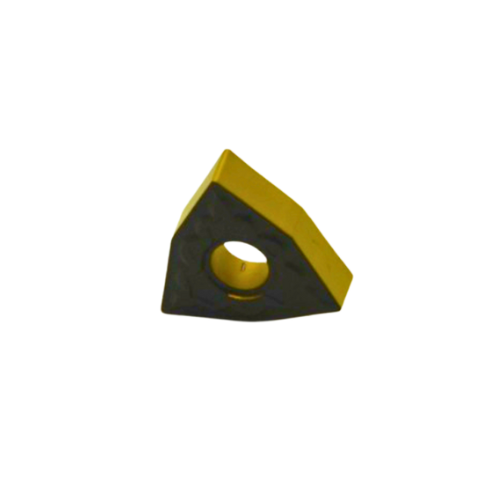

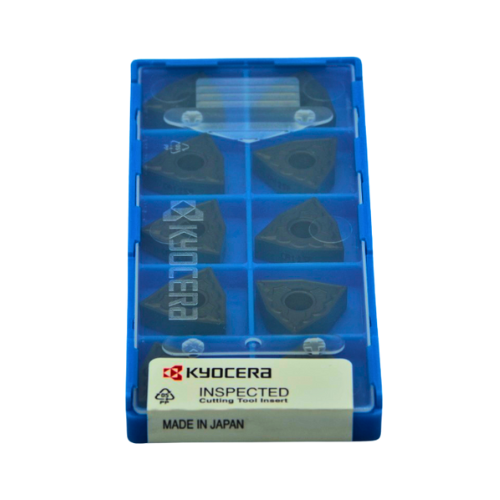

10 pc Kyocera WNMG080404PQ CA125P – Turning Insert (Finishing, PQ Chipbreaker)

Kyocera WNMG080404PQ CA125P – Turning Insert (10 pcs Finishing, PQ Chipbreaker) The Kyocera WNMG080404PQ CA125P is a high-performance double-sided negative turning insert designed for finishing operations in steel machining. It...
$135.00
$0.00
$135.00
(-0%)
SKU: WNMG080404PQCA125P-10
Availability: In Stock
Subtotal: $135.00
10 pc Kyocera WNMG080404PQ CA125P – Turning Insert (Finishing, PQ Chipbreaker)

10 pc Kyocera WNMG080404PQ CA125P – Turning Insert (Finishing, PQ Chipbreaker)

$0.00 $135.00

10 pc Kyocera WNMG080404PQ CA125P – Turning Insert (Finishing, PQ Chipbreaker)

$0.00 $135.00

Kyocera WNMG080404PQ CA125P – Turning Insert (10 pcs Finishing, PQ Chipbreaker)

The Kyocera WNMG080404PQ CA125P is a high-performance double-sided negative turning insert designed for finishing operations in steel machining. It utilizes Kyocera’s reliable CA125P CVD-coated carbide grade, which offers exceptional wear resistance and thermal stability. The PQ chipbreaker features a refined cutting edge that minimizes cutting resistance and provides excellent chip control, enabling stable performance and superior surface finish under both continuous and light interrupted cutting conditions.

Key Features & Benefits

  • CA125P Grade: CVD-coated carbide designed for finishing to medium turning of steels.
  • PQ Chipbreaker: Finishing geometry with excellent chip evacuation and low cutting force.
  • High Surface Quality: Produces smooth, accurate finishes in stable cutting conditions.
  • Reliable Edge Strength: Combines sharpness and toughness for continuous cutting at high speeds.
  • Consistent Performance: Stable cutting edge geometry ensures long tool life and repeatable results.

Technical Specifications

  • Designation / Order Code: WNMG080404PQ CA125P
  • Insert Type: Double-Sided 80° Trigon Turning Insert
  • Material: CVD-Coated Carbide
  • Grade: CA125P – For finishing of steels
  • Chipbreaker: PQ – Finishing Geometry
  • Inscribed Circle (IC): 12.70 mm
  • Thickness (S): 4.76 mm
  • Hole Diameter (D1): 5.16 mm
  • Corner Radius (RE): 0.4 mm
  • Relief Angle (α): 0° (Negative Type)

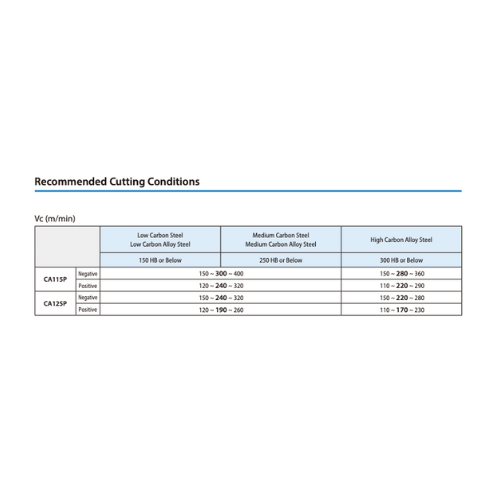

  • Cutting Speed (Vc): 150 – 350 m/min
  • Feed Rate (f): 0.05 – 0.20 mm/rev
  • Depth of Cut (ap): 0.1 – 2.0 mm
  • Coolant: Wet or Dry (Wet recommended for best surface finish)
  • Tolerance: ISO standard – ±0.05 mm (IC) / ±0.025 mm (Thickness)

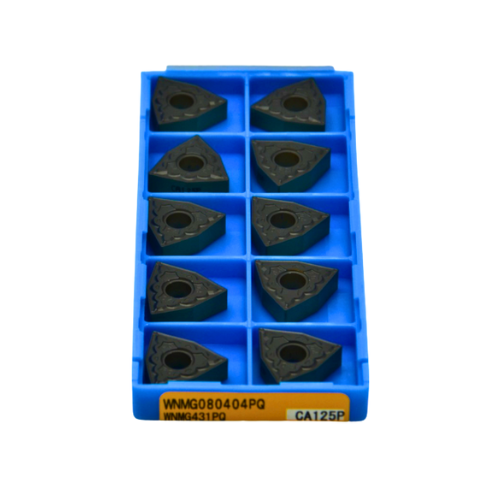

  • Pack Quantity: 10 pcs

About Kyocera CA125P:
Kyocera’s CA125P is a CVD-coated carbide grade optimized for high-speed steel turning. It provides outstanding wear resistance, toughness, and stability in finishing and medium cutting conditions. The PQ chipbreaker complements the grade with superior chip evacuation and reduced cutting forces, enabling precise surface quality and extended tool life.
